21-5/8" (548mm)
12-1/4"
(310mm)
27-1/2" (700mm)
18-7/8"
(480mm)
8" (204mm)
2-3/8"
(60mm)
7-1/4"
(185mm)
*12"
(305mm)
*3" (76mm)
34"
(864mm)
*ø 1-1/4" (32mm)
*8" (203mm)
*ø 3/8" (10mm)

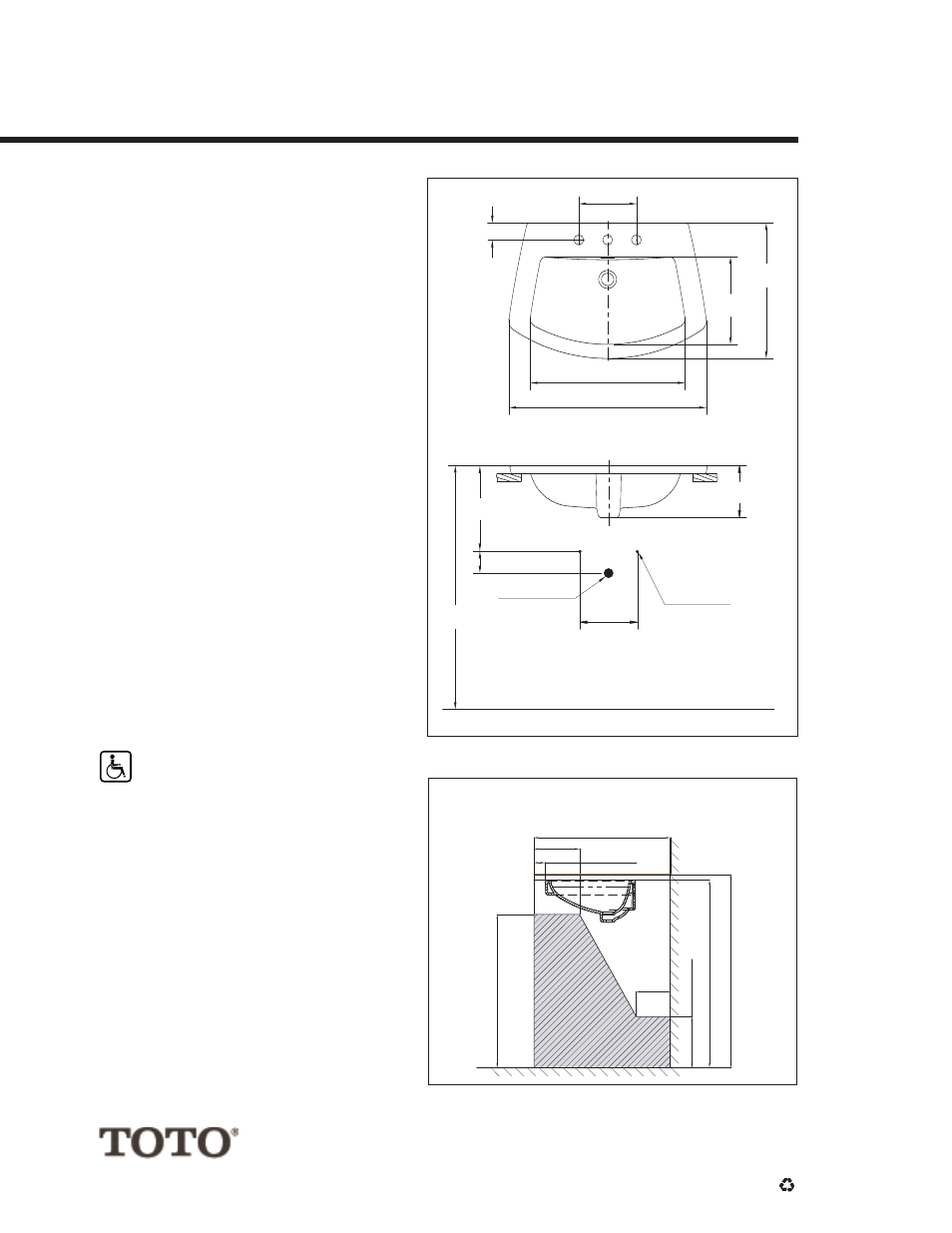

LT963.8 Soirée™ Self Rimming Lavatory
■ DESIGN
Spacious wide basin with traditional design. Soirée™
self rimming lavatories are designed to match the
Soirée™ Design Suite. Durable vitreous china offers
years of quality use.
■ SPECIFICATIONS
Waste: 1-1/4" O.D.
Size: 27-1/2"W x 18-7/8"D
Basin: 21-5/8"W x 12-1/4"D
Warranty: Five Year Limited Warranty
Material: Vitreous china
Shipping Weight: LT963 / LT963.4 / LT963.8
31.1 lbs.
Shipping Dimensions: LT963 / LT963.4 / LT963.8
28-9/16"W x 20-1/4"D
x 9-1/16"H
Fixture dimensions and hydraulic performance meet or
exceed ANSI/ASME standard A112.19.2M and CAN/CSA
B 45 requirements.
Listing / Approvals: IAPMO/UPC, City of Los Angeles,
State of Massachusetts, c-UPC for Canada, and others.
Meets the American Disabilities Act Guidelines and
ANSI A117.1 requirements when countertop installed
864mm(34
" ) from finished floor and lavatory installed
51mm(2 " ) minimum from the front edge.
These dimensions and specifications are subject to
change without notice.
LT963
Soirée™ Self Rimming Lavatory
TOTO ® U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO ® LTD. 06/06 #
Printed on recycled paper
*Suggested Dimension
2
7
"
(6
8
5
.8
m
m
)
8" (203.2mm)
9
"
(2
2
8
.6
m
m
)
6"
(152.4mm)
3
4
"
(8
6
5
m
m
)
3
3
"
(8
3
9
.6
m
m
)
24" (610.6mm )
2" (50.8mm )
LT963 ADA COMPLIANCE CHECK
