SPECIFICATIONS
• Water Use 1.6 GPF/6.0LPF
• Flush System G-Max
• Min. Water Pressure 8 psi (static)
• Water Surface 10-1/4" x 8-1/2"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight C744E(G) - 52lbs
ST743S - 35lbs
• Shipping Dimensions C744E(G)
29-1/2"L x 16"W1
x 10-1/4"W2 x 18-1/4"H
ST743S
20-1/8"L x 8-1/4"W
x 15-1/2"H
CST744S(G)
Drake ® Close Coupled Toilet, 1.6GPF/6.0 GPF
Double Sanitary Tee / Sanitary Cross Double Combination Wye / 1/8 Bend
YES NO
# SS-00351 v.03
Printed in U.S.A. | © TOTO USA 06/09 | Printed on recycled paper ƛ
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed, double
sanitary tee-wye only, in vertical waste stacks, in accordance
with the stipulations noted in the majority of nationally
recognized plumbing codes.
These dimensions and specifi cations are subject to change without notice

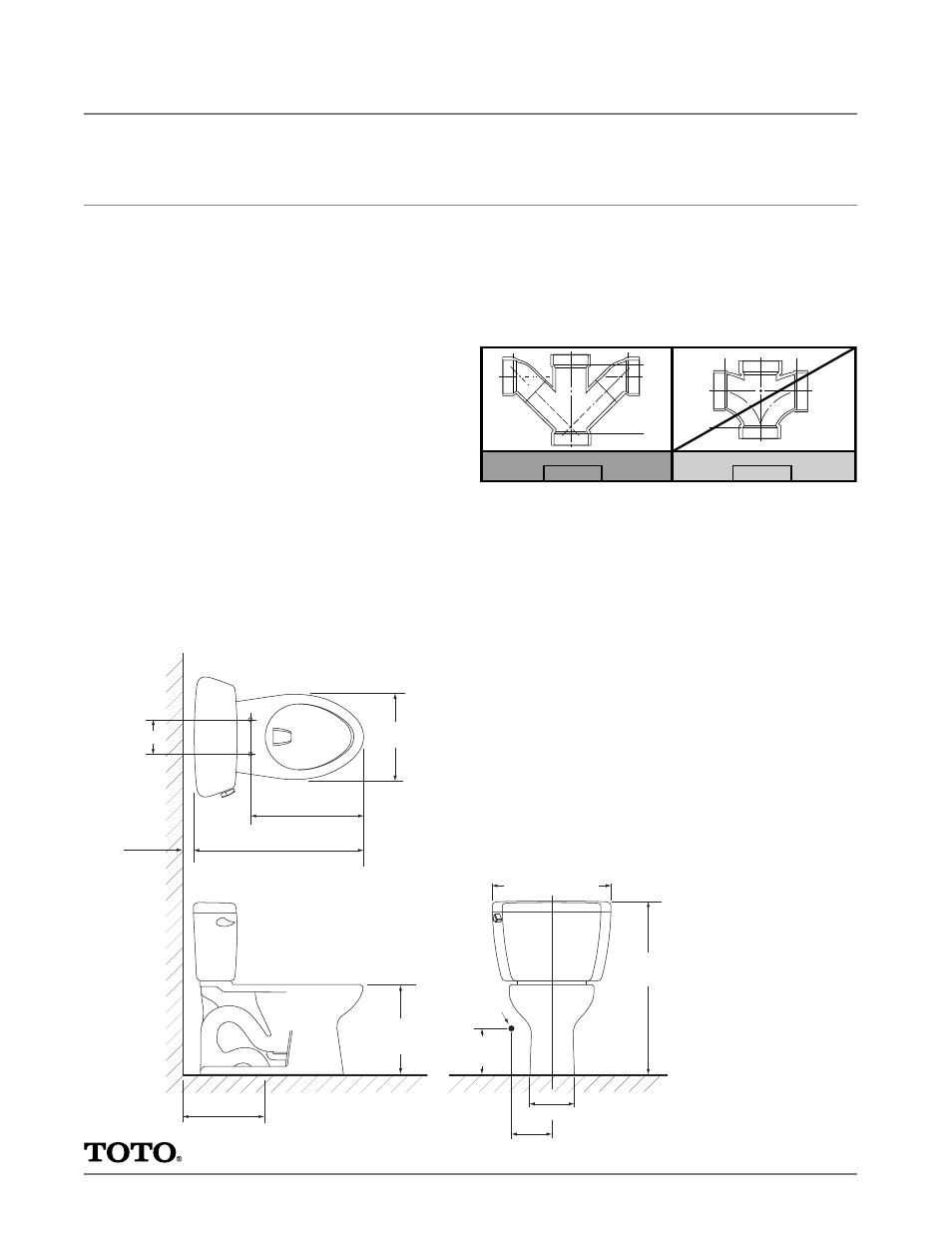

14-5/8"
(370mm)
12" (305mm)
28" (710mm)
18-1/2" (470mm)
1-1/8"
(30mm)
5-1/2" (140mm)
14"
(355mm)
19-1/2" (494mm)
9"
(228mm)
28-1/2"
(724mm)
*8"
(202mm)
1/2" Supply
*6"
(153mm)
