ABA964R - Soirée™ 6' Air Bath™
■ STYLE
The Soirée™ Air Bath™ is designed to
match all of the fixtures in the Soirée™
luxury bath suite. Cast acrylic
construction provides the ultimate in
strength and durability, while a
slip-resistant surface enhances safety
in the bath.
■ SPECIFICATIONS
Size: 72"L x 40"W
Depth: 22"
Bathing Well:
Basin area: 51-1/2" x 25"
Top area:
38-1/4" x 62-5/8"
Warranty: 5 Year Limited Warranty
on Acrylic Tub
1 Year Limited Warranty
on Components and Parts
Material: Cast Acrylic
Electrical Requirements:
15 AMP; 120V w/GFI
Shipping Weight:
ABA964R/L
125 lbs.
Shipping Dimensions:
ABA964R/L
73"L x 43"W
x 26"H
Gallons: ABA964R/L
98 gal. to overflow
50 min. operational capacity
Fixture meets ANSI/ASME standard Z124.1,
ETL, and C-UPC requirements.
These dimensions and specifications are
subject to change without notice.
Use TOTO ® cut template to assure rough
in dimensions.
ABA964R/L
Soirée™ 6' Air Bath™
TOTO ® U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO ® LTD. 01/06 #
Printed on recycled paper

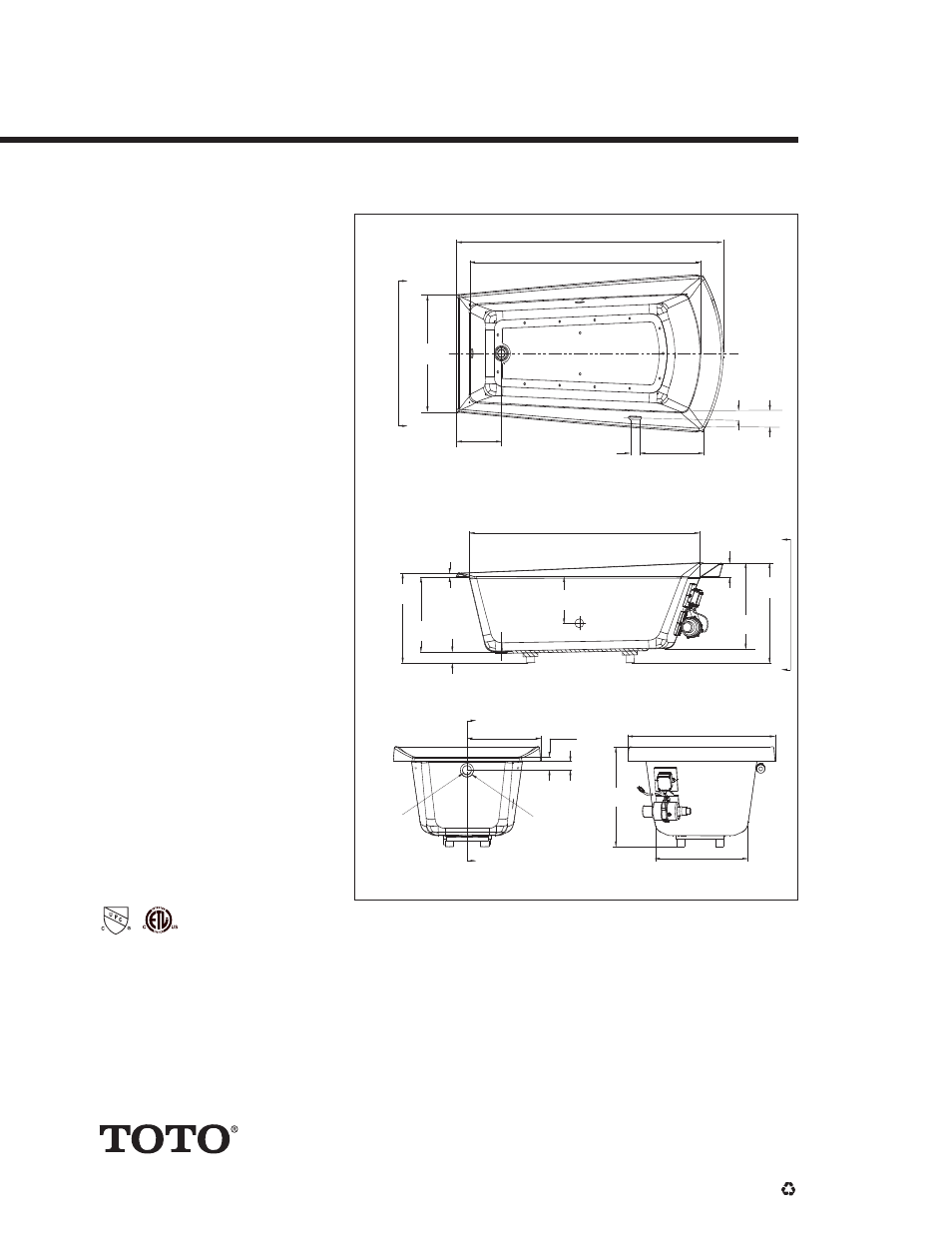

72-3/8” (1838mm)
62-5/8” (1591mm)
62-1/4” (1581mm)
12-1/4”
(310mm)
2-5/8”
(66mm)
11-7/8”
(299mm)
22-7/8”
(579mm)
1”
(27mm)
3” (71mm)
20” (507mm)
TRUE ø R 1-1/4”
(R 30mm)
TRUE ø R 1-3/4”
(R 44mm)
40” (1014mm)
25” (634mm)
25”
(634mm)
3-1/4”
(85mm)
2-1/4”
(58mm)
19”
(480mm)
29-3/4”
(756mm)
3-10/16”
(92mm)
22-1/4”
(566mm)
24-5/8”
(631mm)
17-1/4”
(439mm)
2º 2º REF
A
A
C
C
B
B
838mm)
6 591mm)
6 81mm)
1
40” (1014mm)
25” (634mm)
25”
(634mm)
3
3-10/16”
(92mm)
22-1/4”
(566mm)
24-5/8”
(631mm)
C
B
B
