ABY789N - Clayton™ 66” x 36” Soaker Bathtub
■ STYLE
Designed to match the our line of
residential bathroom products, TOTO’s
®
tubs complete any bathroom suite.
Lucite cast acrylic construction provides
the ultimate in strength and durability,
while a slip-resistant surface enhances
safety in the bath.
■ SPECIFICATIONS
Size: 66"L x 36"W
Depth: 21-3/8"
Warranty: 5 Year Limited Warranty
on Acrylic Tub
1 Year Limited Warranty
on Components and Parts
Material: Lucite Cast Acrylic
Shipping Weight:
ABY789N
110 lbs.
Shipping Dimensions:
ABY789N
67-1/4"L x 38-1/4"W
x 26"H
Gallons: ABY789N
85 to overflow
Fixture meets ANSI/ASME standard Z124.1,
ETL, and C-UPC requirements.
These dimensions and specifications are
subject to change without notice.
Use TOTO ® cut template to assure rough
in dimensions.
ABY789N
Clayton™ 66'' x 36'' Soaker Bathtub
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 02/06 #DXXXXX
Printed on recycled paper
REV 02/06

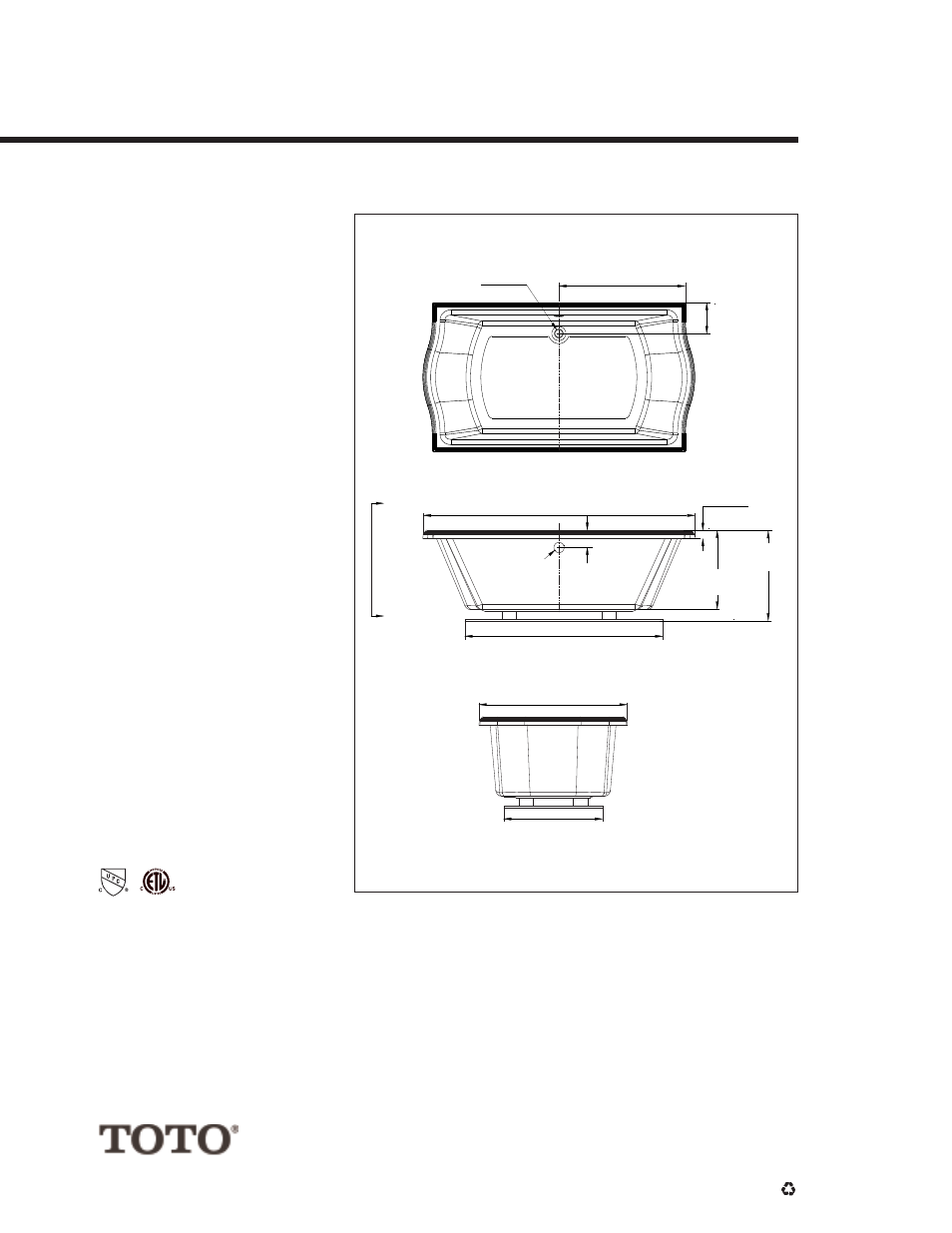

36” (915mm)
24” (610mm)
SECTION C-C
C
2”
(51mm)
24-3/8”
(619mm)
21-3/8”
(543mm)
66” (1676mm)
48” (1219mm)
30-3/4” (782mm)
7-3/8”
(188mm)
”
)
36” (915mm)
24” (610mm)
SECTION C-C
C
C
2”
(51mm)
24-3/8”
(619mm)
21-3/8”
(543mm)
66” (1676mm)
48” (1219mm)
30-3/4” (782mm)
7-3/8”
(188mm)
ø1-7/8”
(48mm)
ø2-1/2”
(64mm)
4-1/4”
(108mm)
