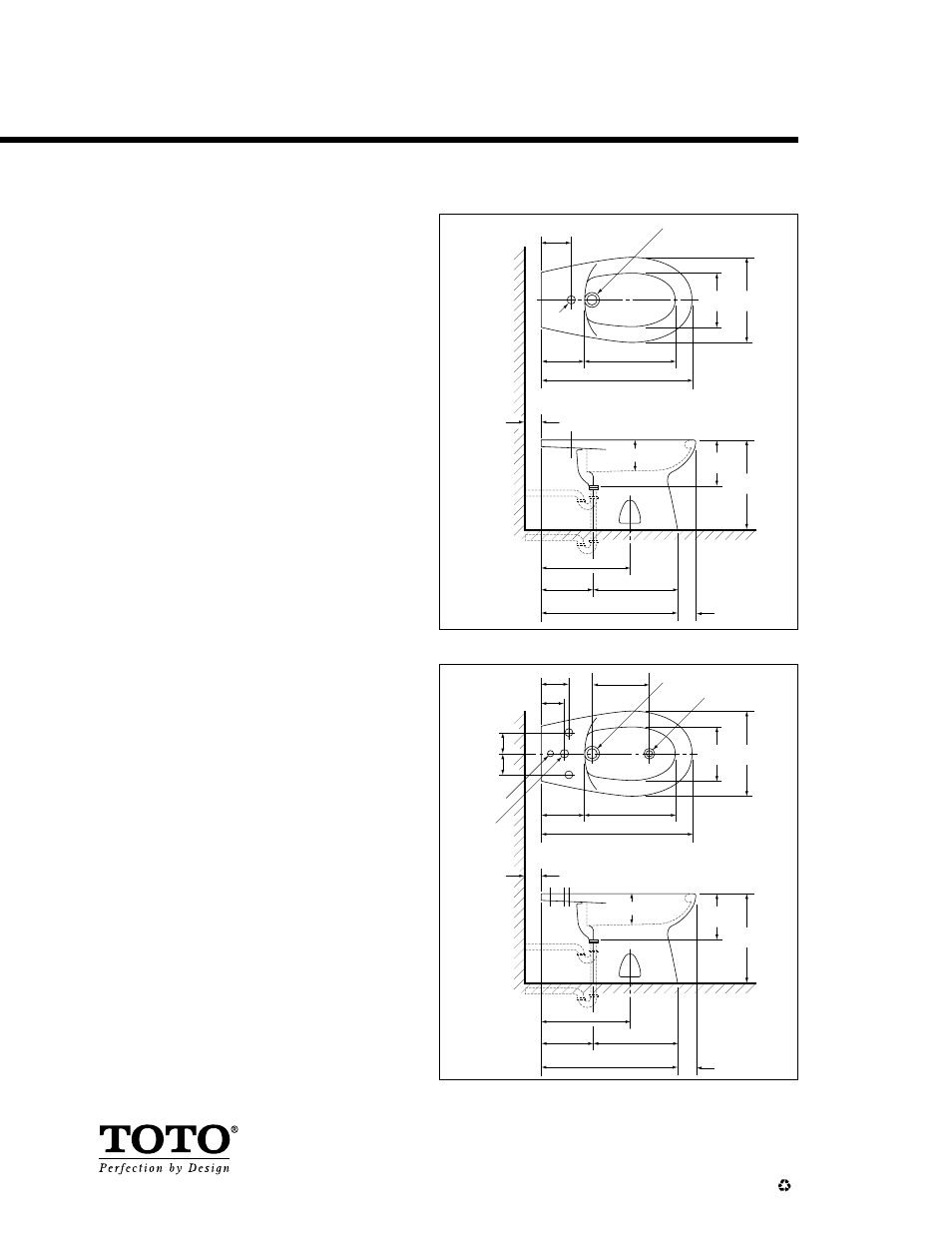

15" (380mm) 8-1/4"
(210mm)
4-3/4"
(120mm)
ш1-3/8"
(ш35mm)
3" (76mm)
min. suggested
3-1/8" (80mm)
13-3/4" (350mm)
13-3/8" (340mm)
21-5/8" (550mm)
24-7/8" (630mm)
8-3/4"
(225mm)
7-5/8"
(195mm)
14"
(355mm)
15"
(380mm)
8-1/4"
(210mm)
1- 3/4" Dia. Drain Outlet
5-7/8" (150mm)
BT500A - Piedmont Bidet
■ DESIGN
Sleek, contemporary bidet with beautiful styling.
Designed to coordinate with TOTO’s many residential
toilets and lavatories the Piedmont bidet complements
any decor. Durable vitreous china offers years of
quality use.
■ SPECIFICATIONS
Waste: 1-1/4" O.D.
Size: 24-7/8"L x 14"W
Height: 15"
Faucet: BT500A - For single hole, center set,
deck mounted bidet faucet
BT500B - With flushing rim and
vertical spray. Designed for deck
mounted bidet faucet with diverter
and vacuum breaker.
Warranty: Five Year Limited Warranty
Material: Vitreous China
Shipping Weight: BT500A/BT500B
38.7 lbs.
Shipping Dimensions:
BT500A/BT500B
28"L x 16-1/2"W x 16-7/8"H
Fixture dimensions and hydraulic performance meet
or exceed ANSI/ASME standard A112.19.2M and
CAN/CSA B 45 requirements.
Listing / Approvals: IAPMO/UPC, CSA, City of Los
Angeles, State of Massachusetts, and others.
These dimensions and specifications are subject to change
without notice.
BT500A/BT500B
Piedmont Bidet
15" (380mm)
13-3/4" (350mm)
13-3/8" (340mm) 8-1/4"
(210mm)
24-7/8" (630mm)
8-3/4"
(225mm)
7-5/8"
(195mm)
5-7/8" (150mm)
14"
(355mm)
15"
(380mm)
9-1/2" (240mm)
7-1/8"
(180mm)
4-1/2" (114mm)
3-3/4" (95mm)
1" (25mm)
1-3/8" (35mm)
3-1/2" (89mm)
3-1/2" (89mm)
3" (76mm)
min. suggested
3-1/8" (80mm)
21-5/8" (550mm)
Spray Hole 1" (25mm)
1- 3/4" Dia. Drain Outlet
BT500B - Piedmont Bidet
