SPECIFICATIONS
• Water Use 1.28GPF/4.8LPF
(or 1.6GPF/6.0LPF when
used with 1.6GPF fl ush
valve)
• Flush System Siphon jet fl ushing action
• Min. Water Pressure 35 psi (fl owing)
• Min. Flow Rate 23 GPM
• Water Surface 12" x 9-1/4"
• Trap Diameter 2-1/8"
• Trap Seal 2-5/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT708E(G) - 49lbs
CT708EV(G) - 53.5lbs
• Shipping Dimensions CT708E(G)
17-1/8"L x 16" W x 26"H
CT708EV(G)
15-1/2"L x 15-1/2" W
x 26-3/8"H

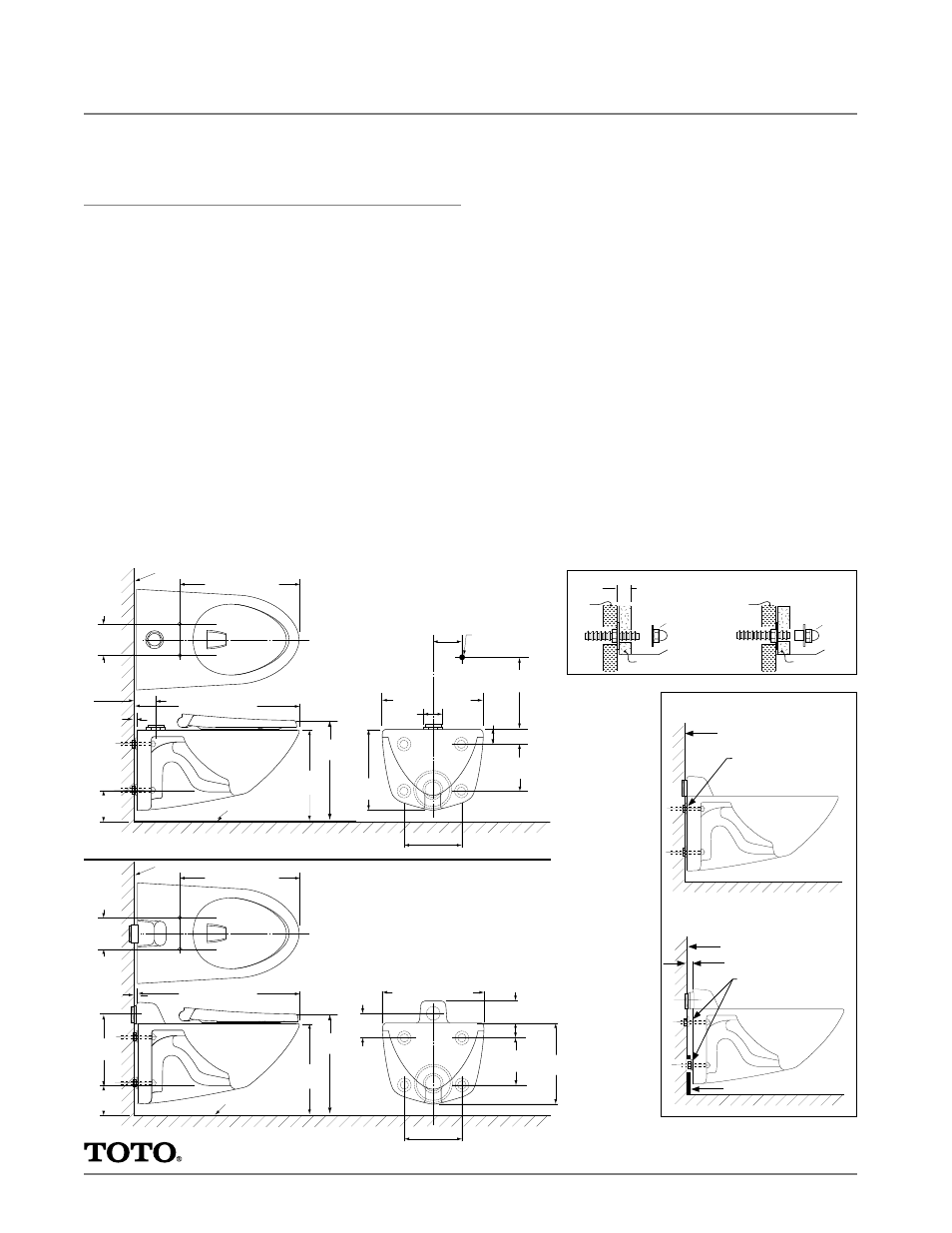

CT708E(G) & CT708EV(G)
Wall-Mounted Flushometer Toilet, 1.28GPF when used
with High Effi ciency 1.28GPF Flushometer Valve
18-1/2" (470mm)
24-7/8" (632mm)
9"
(229mm)
15-3/4"* (400mm)
5-1/2"
(140mm)
*6-3/8"
(162mm)
11-1/4"
(285mm)
12-3/4"
(323mm)
3-1/2"
(90mm)
2-3/8" (59mm)
3-7/8"
(99mm)
7-1/2"
(190mm)
Finished Wall (Must be flat surface)
Finished Floor
*16"
(406mm)
*17"
(432mm)
*Suggested
Dimension
1/16"
(1.7mm)
Wall
Gap
18-1/2" (470mm)
24-7/8" (632mm)
9"
(229mm)
5-1/2"
(140mm)
*6-3/8"
(162mm)
*16"
(406mm)
Finished Wall (Must be flat surface)
Finished Floor
2-3/4"
(70mm)
1/16"
(1.7mm)
Wall
Gap
15-3/8" (390mm)
12-3/4"
(323mm)
*4-3/4"
(121mm)
*Suggested
Dimension
11-1/2"
(292mm)
2-3/8"
(59mm)
7-1/2"
(190mm)
1" N.P.T. supply for
Flushometer valve
1-1/2"
(38mm)
*17"
(432mm)
# SS-00210 v.06
Printed in U.S.A. | © TOTO USA 09/11 | Printed on recycled paper ♻
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
CT708E(G)
CT708EV(G)
1-3/4"
(45mm)
Standard
bolt cap
Wall
China China
Retrofit
bolt cap
Wall
Note: If carrier bolt doesn’t extend/or is
flush with china, then use retrofit caps
THU111 (sold separately).
finished wall
Installation surface of bowl
has 1/16” wall gap
across entire surface.
Proper Installation
Top and Bottom mounting
surfaces must be in
the same vertical plane.
finished wall
Improper Installation
Ø Uneven Wall Gap
Baseboard
