Pfister F-049-EPBK - Manual (Page 3)

ENGLISH
ENGLISH
7 9
10
8

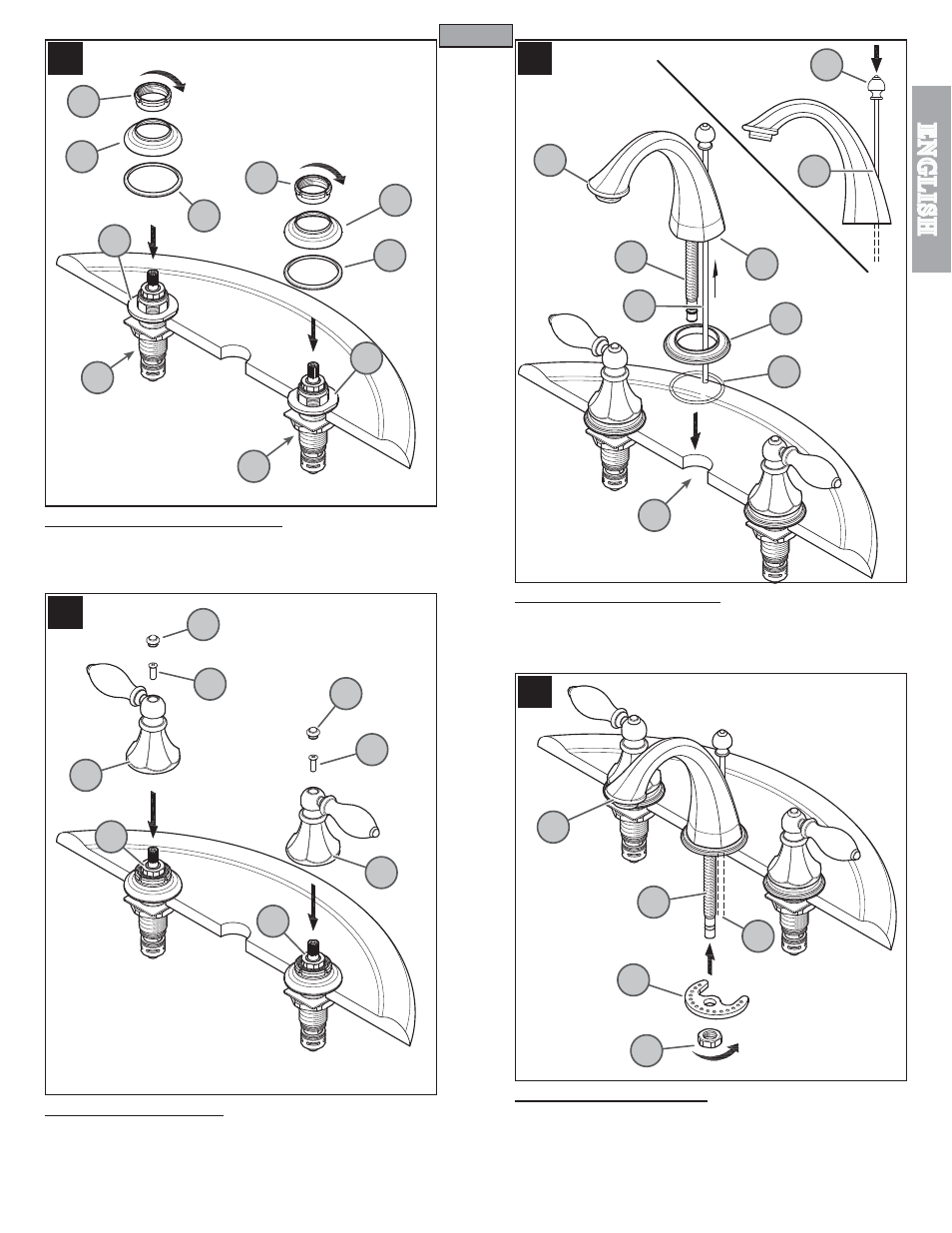

7 HANDLE FLANGE ATTACHMENT
Place Plastic Ring (7A) and Flange (7B) over Valve Body (7C) covering the Valve Body
Washers (7D). Secure by threading Plastic Nut (7E) onto the Valve Body (7C).
8 HANDLE INSTALLATION
Before proceeding, Valve Stems ( 8A) are to be set in the closed position. Attach
Handle Hub (8B) in desired position onto Valve Stem (8A) and secure with Screw (8C).
Attach Decorative Button (8D).
9 SPOUT BODY ATTACHMENT
Insert Lift Rod (9A) into hole at the back of Spout (9B). Place Plastic Seal Ring (9C)
against the bottom of Spout Base (9D). Place Spout Base (9D) against the bottom of
Spout Body (9E). With Spout (9F) facing forward, carefully install the Lift Rod (9A) and
Shank (9G) through the center hole of sink (9H).
10 SECURING SPOUT BODY
From underneath sink, secure Spout Body (10A) by placing Metal Washer (10B) and
threading Mounting Nut (10C) onto Spout Shank (10D). Make sure that the bumps on
Metal Washer (10B) are facing up. Make sure Lift Rod (10E) moves freely. Be sure
Spout Body (10A) is centered and facing forward and tighten the Mounting Nut (10C)
until Spout Body (10A) is firmly secured to sink.
Caution: Do not over tighten!
3
7E
7E
7B
7A
7B
7D
7A
7C
7C
7D
8B
8A
8B
8A
8C
8C
10A
10E
10C
10B
10D
8D
8D
9A
9B
9C
9A
9G
9H
9D
9E
9F
