SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System E-Max ®
• Min. Water Pressure 8 psi (static)
• Water Surface 10-1/4" x 8-1/4"
• Trap Diameter 2-1/16"
• Rough-in 12"
• Trap Seal 2-1/4"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT794EF - 62lbs
ST794E - 36.5lbs
• Shipping Dimensions CT794EF
29-3/4"L x 16-1/2"W
x 24-3/4"H
ST794E
20-3/8"L x 8-3/8"W
x 19-5/8"H
CST794EF
Eco Nexus ® Close Coupled Toilet, 1.28GPF/4.8 GPF
14-1/2"
(368mm)
17-1/8"
(435mm)
7-1/4" (185mm)
12" (305mm)
5-1/2"
(140mm)
3/4"
(20mm)
28"
(710mm)
18-1/2"
(470mm)
32-1/2"
(824mm)
4-1/2" (114mm)*
17-7/8" (454mm)
4" (102mm)*
*Suggested

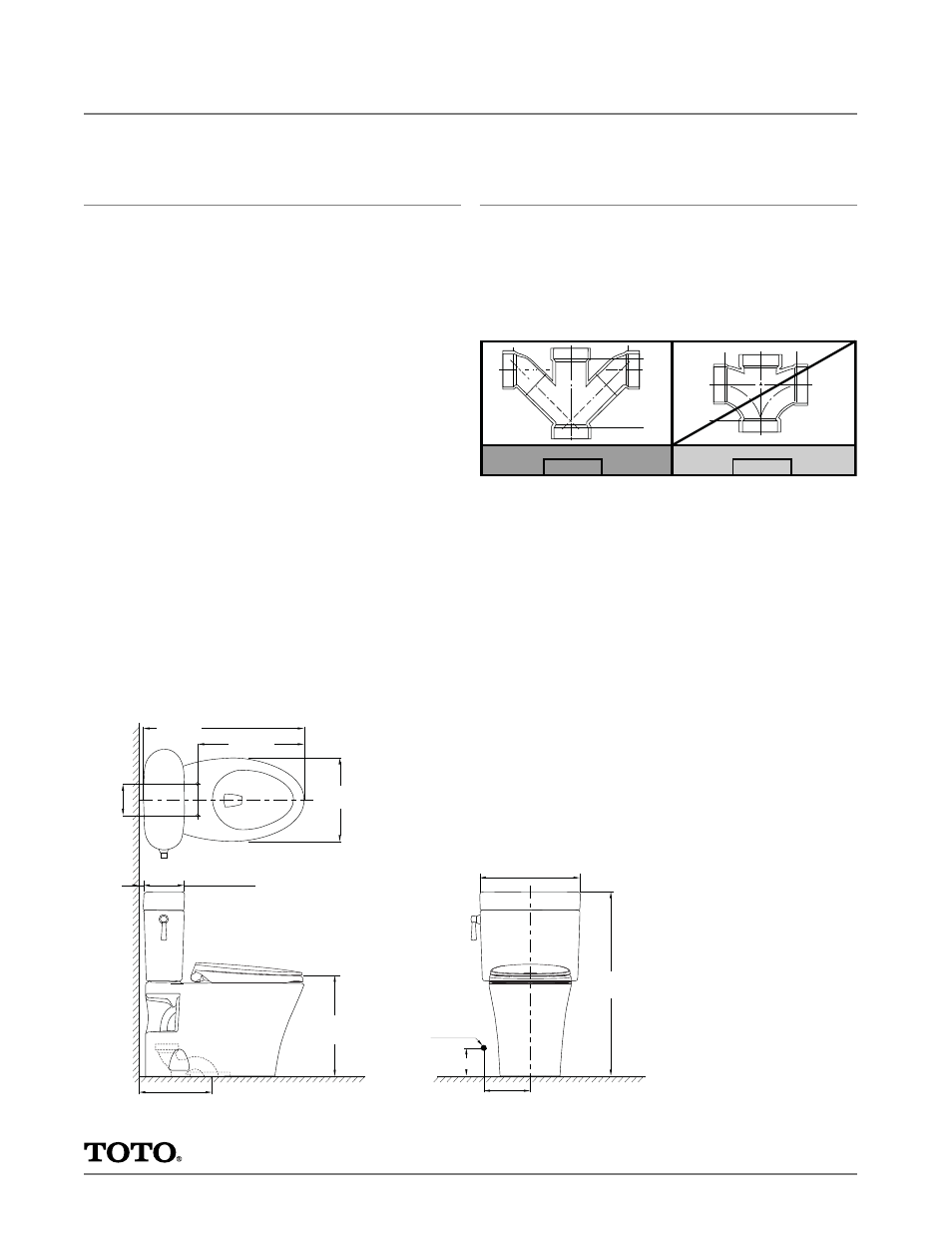

Dimensions
1/2" Supply
Double Sanitary Tee / Sanitary Cross Double Combination Wye / 1/8 Bend
YES NO
#SS-00366 v.04
Printed in U.S.A. | © TOTO USA 03/10 | Printed on recycled paper ƛ
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
These dimensions and specifi cations are subject to change without notice
