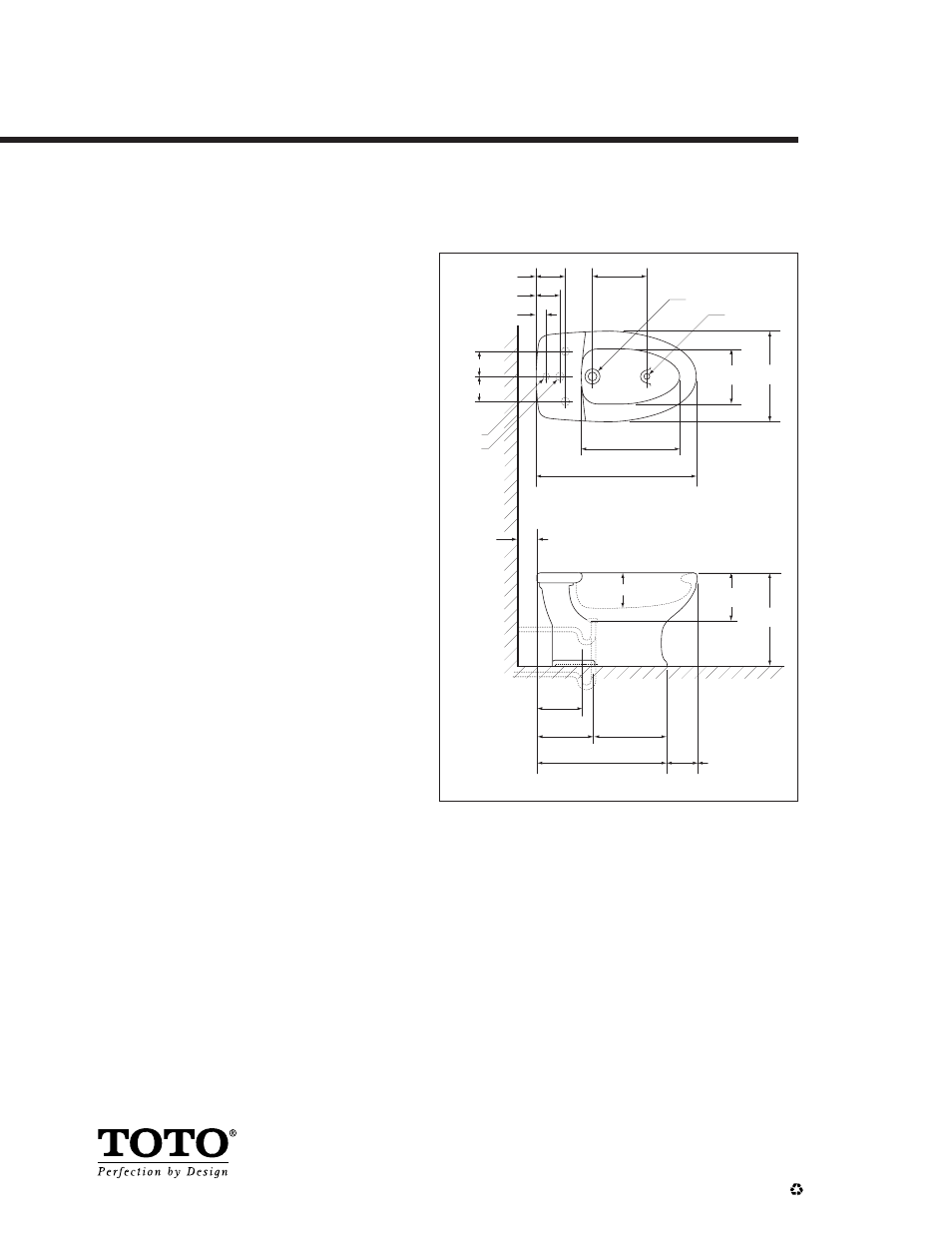

1-3/4" Drain Outlet
Spray Hole 1"
(25mm)
4" (101mm)
4-1/2" (115mm) 8-5/8"
(220mm)
3-3/4" (96mm)
1-1/8" Dia.
(28mm)
1-3/8" Dia.
(35mm)
15-3/4" (400mm)
25-5/8" (650mm)
1-1/2" (38mm)
4" (101mm)
3" (76mm)
minimum
suggested
4-3/4" (122mm)
7-5/8"
(193mm)
9" (228mm)
20-3/4" (528mm)
5-5/8" (142mm)
9"
(230mm)
14-5/8"
(370mm)
15"
(380mm)
11-7/8" (300mm)
7-1/2"
(190mm)
BT774B - Carrollton Bidet
■ DESIGN
Classic bidet with finely carved details. Designed to
coordinate with TOTO ’s Carrollton Design Suite.
Durable vitreous china offers years of quality use.
■ SPECIFICATIONS
Waste: 1-1/4" O.D.
Size: 25-5/8"L x 14-5/8"W
Height: 15"
Faucet: With flushing rim and vertical spray.
Designed for deck mounted
bidet faucet with diverter and
vacuum breaker.
Warranty: Five Year Limited Warranty
Material: Vitreous China
Shipping Weight: BT774B
60 lbs.
Shipping Dimensions:
BT774B
28 "L x 15-3/8"W x 16-7/8"H
Fixture dimensions and hydraulic performance meet
or exceed ANSI/ASME standard A112.19.2M and
CAN/CSA B 45 requirements.
Listing / Approvals: IAPMO/UPC, CSA, City of Los
Angeles, State of Massachusetts, and others.
These dimensions and specifications are subject to change
without notice.
BT774B
Carrollton Bidet
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 03/03 #B20015
Printed on recycled paper
REV 03/03
*Suggested Dimension
