ABY626N
Aimes ® Soaker Bathtub
SPECIFICATIONS
• Size 71-1/2"L x 36-3/16"W x
23-11/16"H
• Depth 19"
• Warranty 1 Year Limited Warranty
on acrylic tub
1 Year Limited Warranty
on components and parts
• Material Cast Acrylic construction
• Shipping Weight 113 lbs.
• Shipping Dimensions 74"L x 44"W x 27"H
• Gallons
88 to overfl ow
These dimensions and specifi cations are subject to change without notice

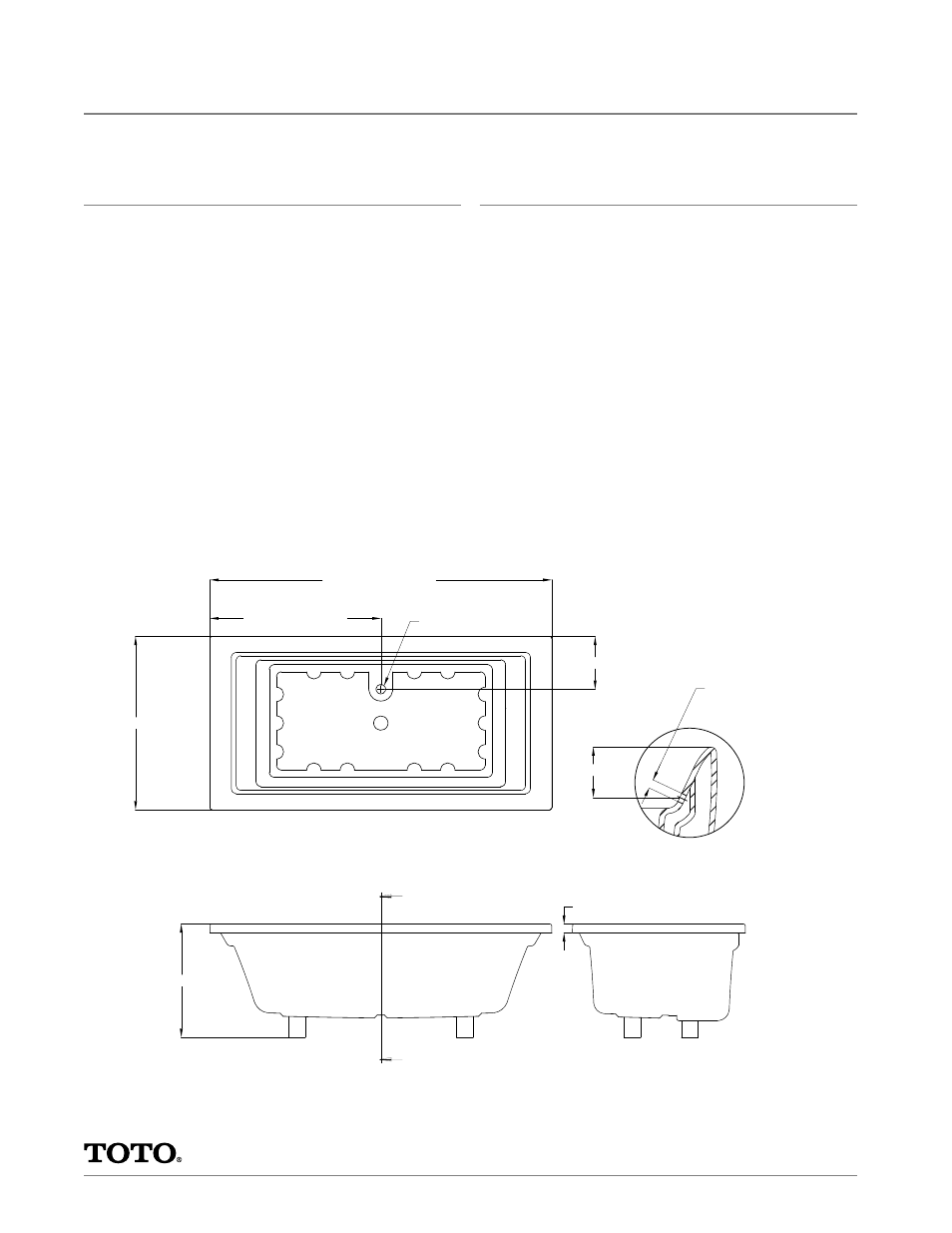

71-1/2” (1816mm)
36-3/16” (919mm)
35-3/4” (908mm)
11” (279mm)
5/16” (7.9mm)
3-1/2” (89mm)
1-7/8” (48mm)
23-11/16” (601mm)
OVERFLOW
SLIT
PARTIAL
SECTION A-A
WASTE DRAIN
A
A
INSTALLATION NOTES
Floor support under bath must provide a minimum of
75 lbs/square foot (366 kg/square meter) loading.
