ENGLISH
ENGLISH
9 7
8
10
FAUCET FUNCTIONS
DRAIN BODY INSTALLATION

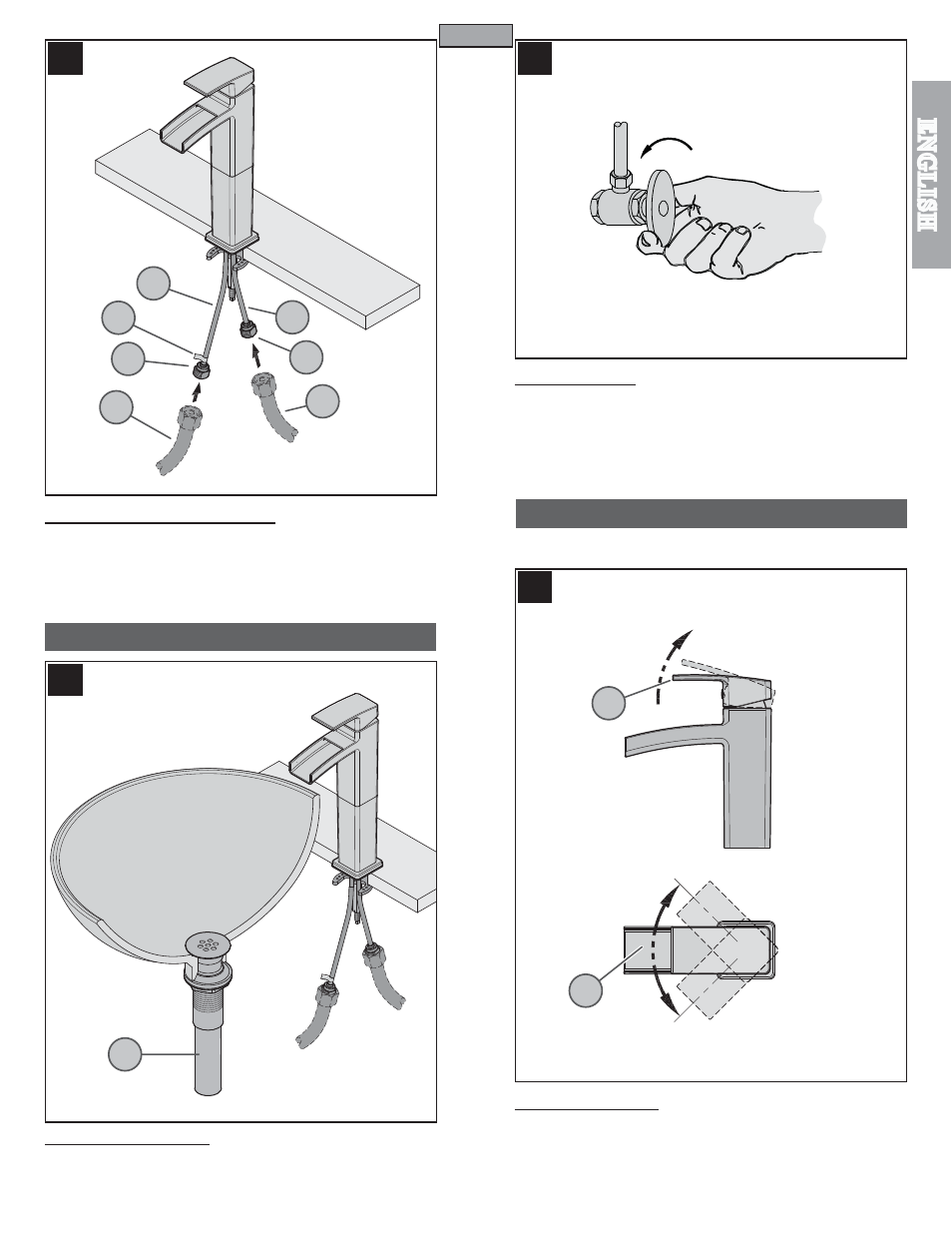

7 WATER SUPPLY CONNECTIONS
Gently separate hot and cold Supply Tubes (7A), approximately three inches apart.
Connect water Supply Lines (7B) to Faucet Inlets (7C). Hot water supply line goes to hot
inlet fitting indicated by red tag (7D). (Supply lines not included). Follow manufacturer’s
instructions when installing supply lines. Do not twist Supply Tubes (
8A)!
8 DRAIN INSTALLATION
Install and adjust Drain (8A) using separate instructions supplied with the Drain assembly.
For T40-YP models, grid strainers must be ordered separately! For sinks with an
overflow, order T47-9GS*. For sinks without an overflow, order T47-7GL*.
9 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
10 VALVE FUNCTION
By lifting the Lever Handle (10A) up, the valve will be activated allowing water to flow.
The water flow will increase by continuing to lift up the Lever Handle (10A). By rotating
the Lever Handle counter-clockwise, the water temperature will decrease to cold flow
only. By rotating the Lever Handle clockwise, the water temperature will increased to
hot flow only.
3
7A
7C
7D
7B
7A
7C
7B
10A
10A
8A
COLD HOT
OPEN
HOT
COLD
