DRAIN BODY INSTALLATION
FAUCET FUNCTION
12

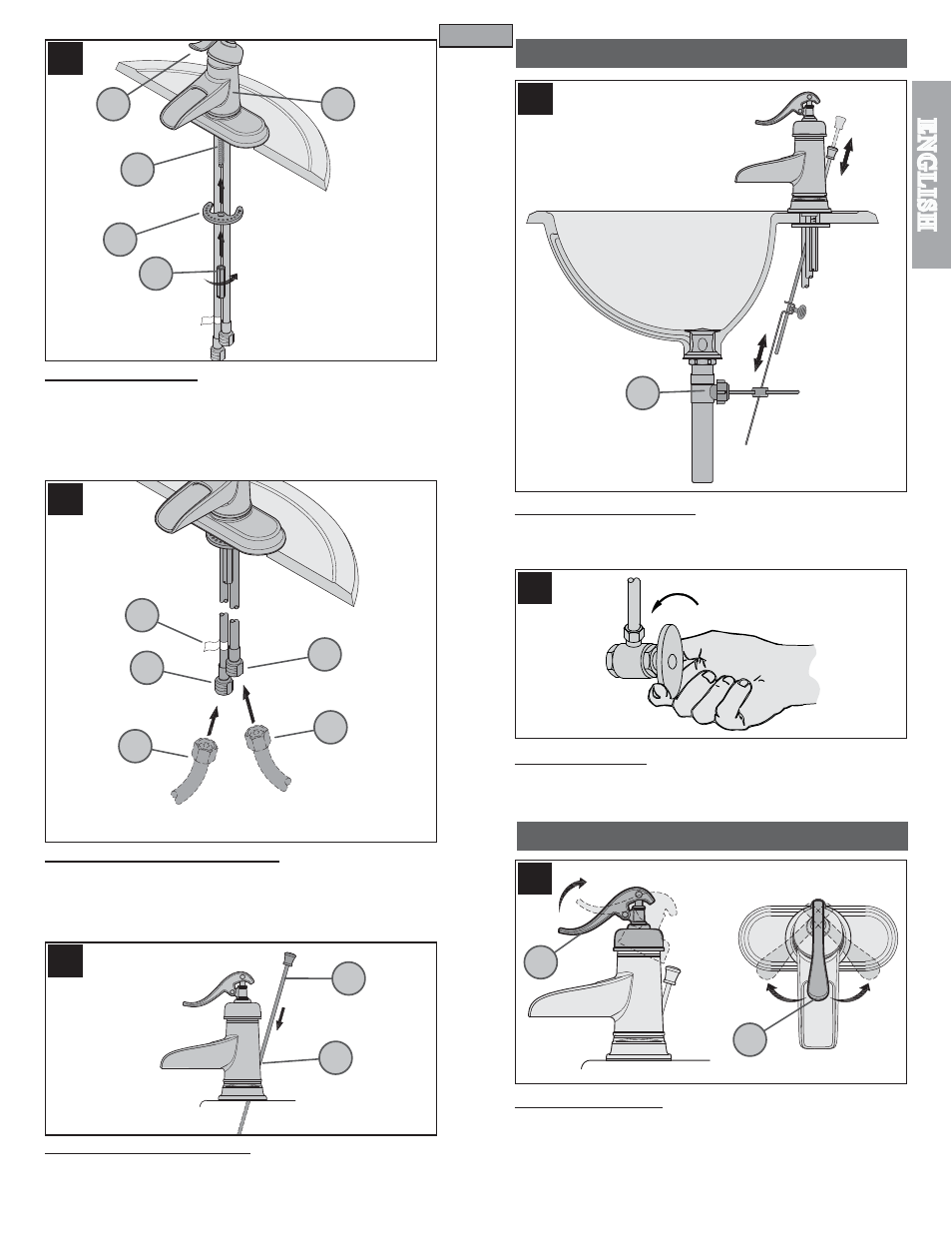

7 SECURING FAUCET
From underneath sink, secure Faucet Body (
7A) by placing Metal Washer (7B)
and threading Long Nut (7/16 Hex.) (
7C) onto Mounting Post (7D). Make sure
that the bumps on Metal Washer ( 7B) are facing up. Tighten loosely, make
sure Handle ( 7E) swings equally in both directions. Firmly hand tighten Long
Nut (
7C). Secure Long Nut (7C) not to exceed a 1/4 turn.
Caution: Do not over tighten!
8 WATER SUPPLY CONNECTIONS
Connect water Supply Lines (
8A) to Faucet Inlets (8B). Hot water supply line
goes to hot inlet fitting indicated by red tag ( 8C). (Supply lines not included).
Follow manufacturer’s instructions when installing supply lines.
9 POP-UP ROD CONNECTION
Insert Lift Rod (
9A) into hole at the back of Faucet Body (9B). Gently, slide Lift
Rod ( 9A) down the hole in Faucet Body (9B).
10 POP-UP INSTALLATION
Install and adjust Pop-Up (
10A) using separate instructions supplied with the
Pop-Up assembly.
11 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below
the sink.
12 VALVE FUNCTION
By lifting the Lever Handle (
12A) up, the valve will be activated allowing water
to flow. The water flow will increase by continuing to lift up the Lever Handle
(
12A). By rotating the Lever Handle counter-clockwise, the water temperature
will decrease to cold flow only. By rotating the Lever Handle clockwise, the
water temperature will increased to hot flow only.
