FAUCET FUNCTIONS
MAINTENANCE & CARE
12
13
14
CAUTION: Maintenance
DISASSEMBLY
1.
Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfister Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative finishes, use only a soft damp
cloth to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of
other than a soft damp cloth will nullify our warranty!
Special Trim:
Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial
use. Installation of Said Trim is at Users Risk!
1–800–PFAUCET (1–800–732–8238)
For Toll-Free Pfaucet information call
1–800–PFAUCET (1–800–732–8238)
or visit www.pricepfister.com
• Installation Support
• Care and Warranty Information

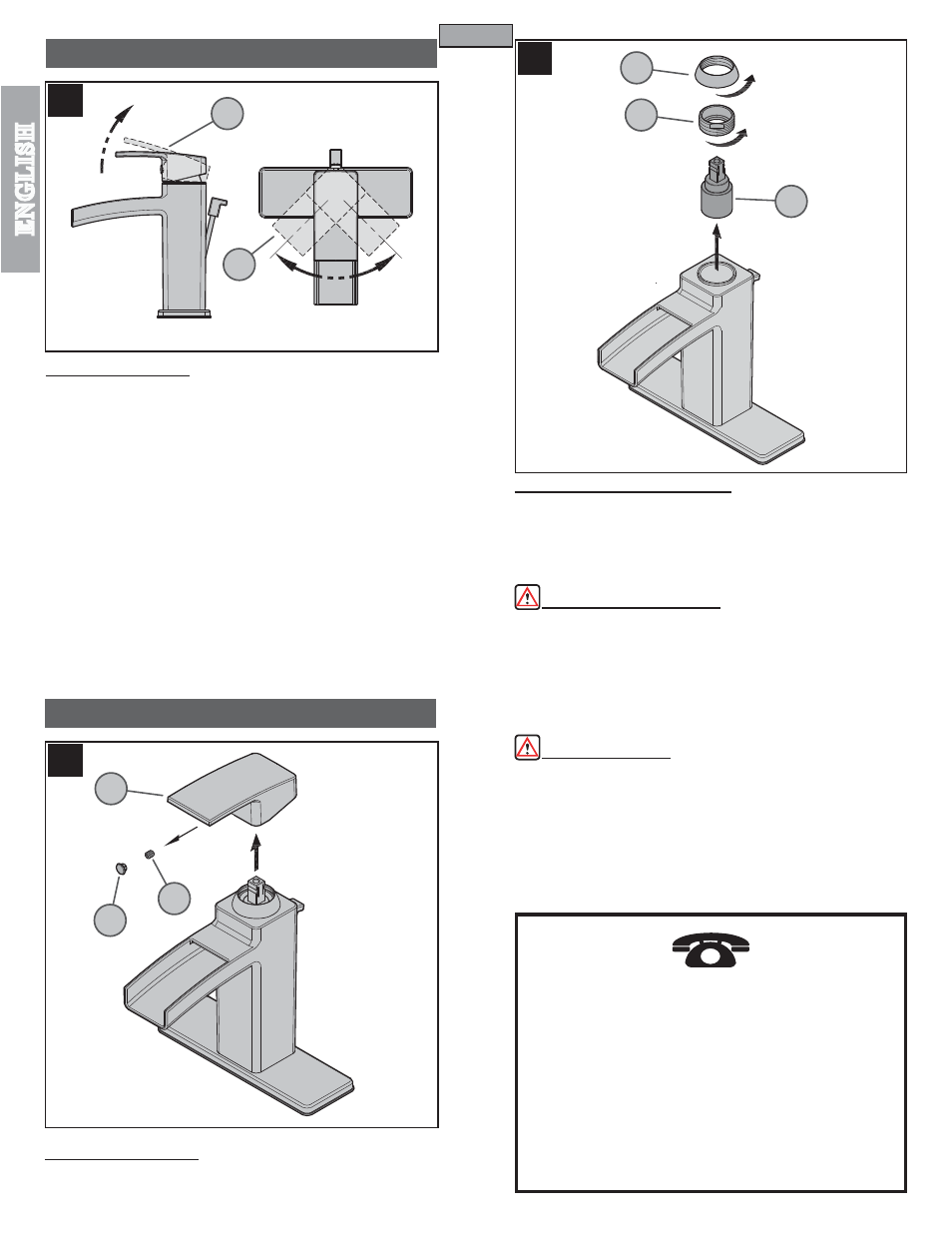

12 VALVE FUNCTION
By lifting the Lever Handle (12A) up, the valve will be activated allowing water to flow.
The water flow will increase by continuing to lift up the Lever Handle (12A). By rotating
the Lever Handle counter-clockwise, the water temperature will decrease to cold flow
only. By rotating the Lever Handle clockwise, the water temperature will increased to
hot flow only.
13 HANDLE REMOVAL
Turn off water before proceeding! Detach Decorative Button (13A). Using a 3 /
32
”
Hex wrench, loosen Set Screw (13B) and remove Handle (13C).
14 CARTRIDGE REPLACEMENT
Turn off water supplies and relieve pressure before working on your faucet. Remove
handle (see figure 13). Remove the Dome Cap (14A) by unscrewing counterclockwise. Using
pliers, unscrew the retainer ring (14B). Carefully remove the Cartridge (14C) by pulling it
straight up and out. Reassemble valve by reversing steps.
