CT708E Top Spud
■ PERFORMANCE
The TOTO ® low consumption flushometer
toilet received high ratings during
ANSI/ASME testing at independent
laboratories. Designed with a powerful
siphon jet flush, the bowl offers a large
water surface and a 100% glazed trapway.
■ SPECIFICATIONS
Water Use: 1.28 Gpf/4.8Lpf
Flush System: Siphon jet
Min. Water Pressure:
35 psi static
Water surface: 12-5/8" x 10-1/4"
Trap dia: 2-1/8"
Trap seal: 2-5/8"
Warranty: One Year Limited Warranty
Material: Vitreous china
Shipping Weight:
CT708E–Bowl
49 lbs.
CT708EV–Bowl
53.5 lbs.
Shipping Dimensions:
CT708E–Bowl
15-1/2"L x 15-1/2"W
x 26-3/8"H
CT708EV–Bowl
17-1/8"L x 16"W x 26"H
Recommended carrier: Any Jay R. Smith
siphon jet support (Four-bolt).
Fixture dimensions and hydraulic performance
meet or exceed ANSI/ASME standard
A112.19.2 and CAN/CSA B 45 requirements.
Meets and exceeds ASME A112.19.2 standards
for drainline carry distance with a 2% grade
and 4” I.D. pipe.
Listing / Approvals: IAPMO/c-UPC, CSA,
City of Los Angeles, State of Massachusetts,
and others.
CT708E/CT708EV
Wall Hung Flushometer Toilet,
1.28GPF when used with High Efficiency Flushometer Valve
TOTO ® U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO ® LTD. 09/07 #E50170
Printed on recycled paper
REV 10/07
Meets the American Disabilities Act
Guidelines and ANSI A117.1
requirements where installed so top of
rim is 17” from the finished floor.
These dimensions and specifications
are subject to change without notice.

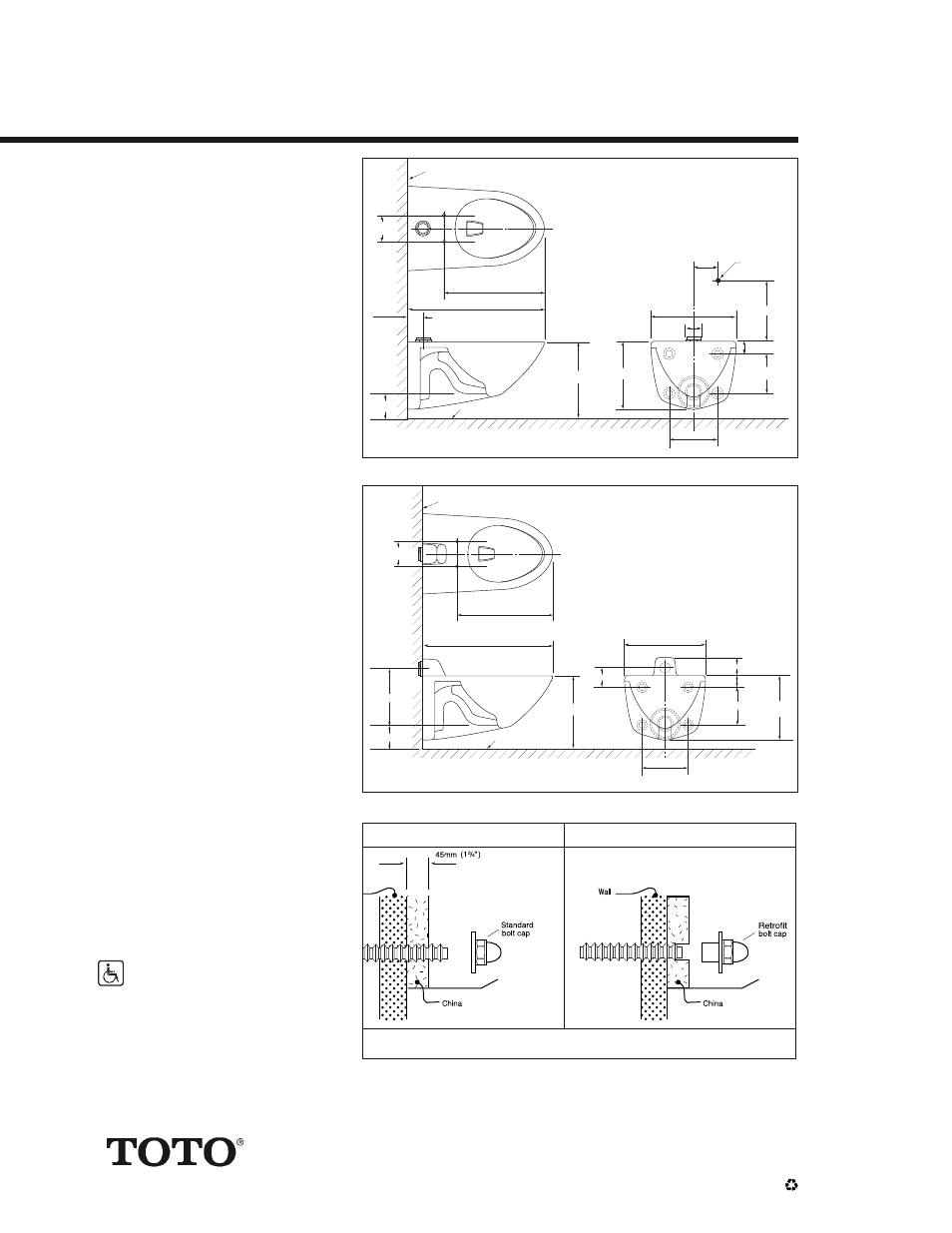

18-1/2" (470mm)
9"
(229mm)
2-3/4"
(70mm)
15-3/4" (400mm)
5-1/2"
(140mm)
5-3/8"*
(135mm)
15"* (380mm)
12-3/4" (323mm)
4-3/4"* (121mm)
11-1/2" (292mm)
2-3/8" (59mm)
7-1/2" (190mm)
1" N.P.T. supply for
Flushometer valve
Finished Wall (Must be flat surface)
Finished Floor
1-1/2" (38mm)
24-7/8" (632mm)
18-1/2" (470mm)
24-7/8" (632mm)
9"
(229mm)
15-3/4"* (400mm)
5-1/2"
(140mm)
5-3/8"* (135mm)
11-1/4" (285mm)
15"* (380mm)
12-3/4"
(323mm)
3-1/2" (90mm)
2-3/8" (59mm)
3-7/8" (99mm)
7-1/2" (190mm)
Finished Wall (Must be flat surface)
Finished Floor
CT708EV Back Spud
* Suggested Dimension
* Suggested Dimension
Standard Installation
Note: If carrier bolt doesn’t extend/is flush with china, use retrofit caps (TMU111).
Retrofit Installation
82241 Ver H bck
Warning: Installation on uneven surface can cause fracture.
INSTALLATION SURFACE MUST BE COMPLETELY FLAT.
