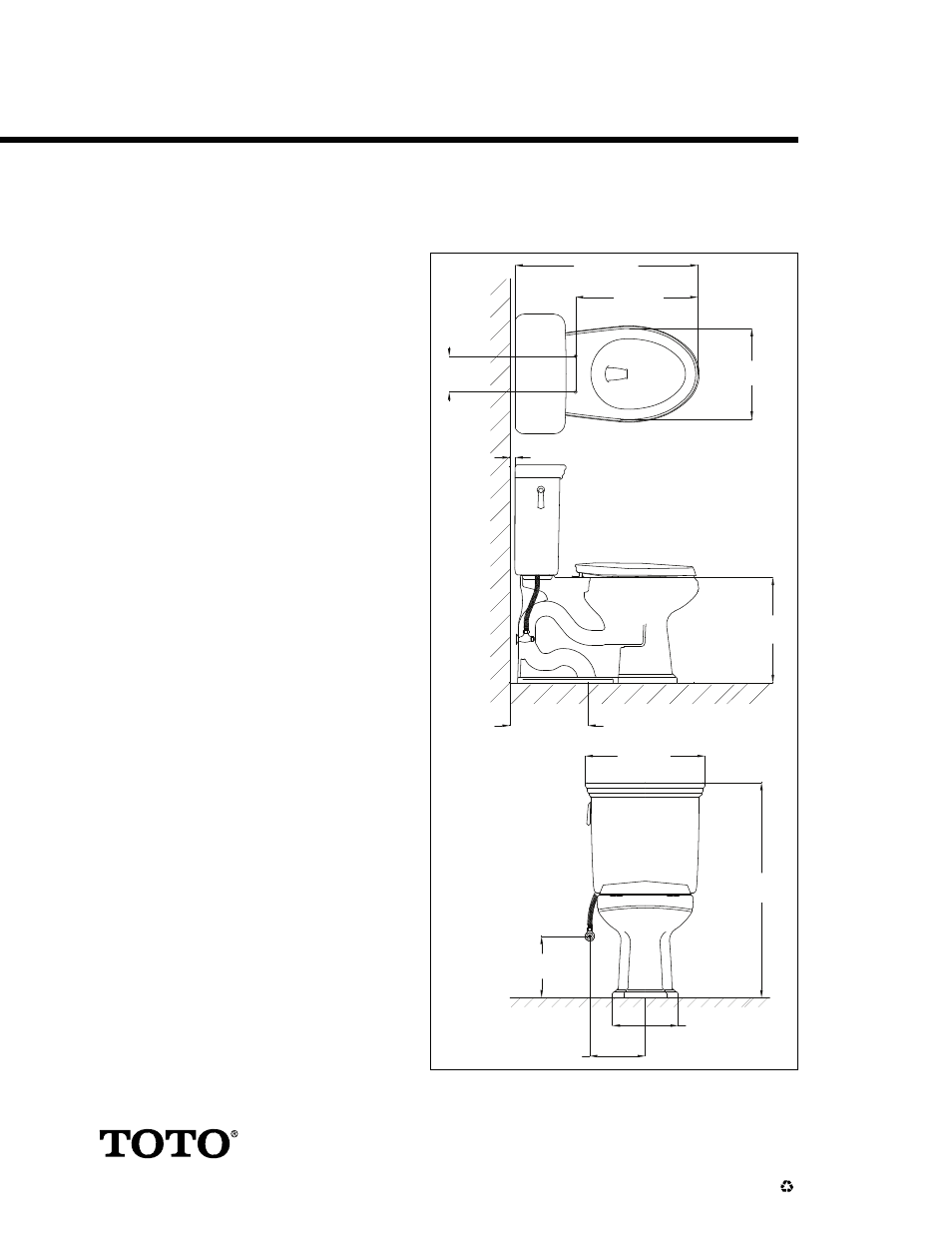

28-1/4”
(714mm)
5-1/2”
(140mm)
3/4”(20mm)
18-3/4”
(478mm)
16-1/4”
(410mm)
12”
(305mm)
18-1/2”
(468mm)
33”
(840mm)
10-1/4”
(257mm)
*Suggested
Dimension
*6”
(152mm)
*8”
(203mm)
14”
(353mm)
CST424SF - Promenade Toilet
CST424SF
Promenade 1.6 GPF Toilet, Elongated
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (770) 282-8686 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 01/08
Printed on recycled paper
REV 01/08
■ PERFORMANCE
The TOTO 1.6 GPF toilet scored the highest
possible rating in independent laboratory
performance tests. With a powerful and quiet
flush design, the toilet also offers a large
water surface.Promenade toilets are designed to
match the Promenade Lavatory Suite.
■ SPECIFICATIONS
Water Use: 1.6 Gpf / 6.0 Lpf
Flush System: Gravity Feed
Min. Water Pressure: 8 psi
Water Surface: 8-7/8" x 6-3/8"
Trap Diameter: 2-1/8"
Rough-in: 12" rough in
Trap Seal: 2-1/4"
Material: Vitreous china
Warranty: Five Year Limited Warranty
Shipping Weight: C424EF - Bowl 59 lbs.
ST423S - Tank 41.5 lbs.
Shipping Dimensions:
C424EF - Bowl
28"L x 10"W 1 x 16-1/4"W 2 x 17-1/4"H
ST423S - Tank
18-7/8"L x 8-5/8"W x 18-1/8"H
Fixture dimensions and hydraulic performance
meet or exceed ANSI/ASME standard A112.19.2 and
CAN/CSA B 45 requirements.
Listing and approval: IAPMO/UPC, CSA, City of Los
Angeles, State of MA, and others
Meets the American Disabilities Act Guidelines and
ANSI A117.1
These dimensions and specifications are subject to
change without notice.
