SUPPLIES
1-1/4" O.D. WASTE
*10-3/4"
(272mm)
8-1/8"
(205mm)
15-1/8"
(384mm)
27"
(687mm)
4" (102mm)
*8" (203mm)
*32"-34"
(813-864mm)
20-1/2" (520mm)
16-1/8" (410mm)
17-3/8" (440mm)
14-3/4"
(375mm)
7-1/8"
(182mm)
6-7/8"
(174mm)
6-3/8"
(161mm)
3-3/8"
(85mm)
8-1/4"
(209mm)
ш3/8"
(ш11mm)
2-3/4"
(70mm)
ш2-5/32"
(ш55mm)

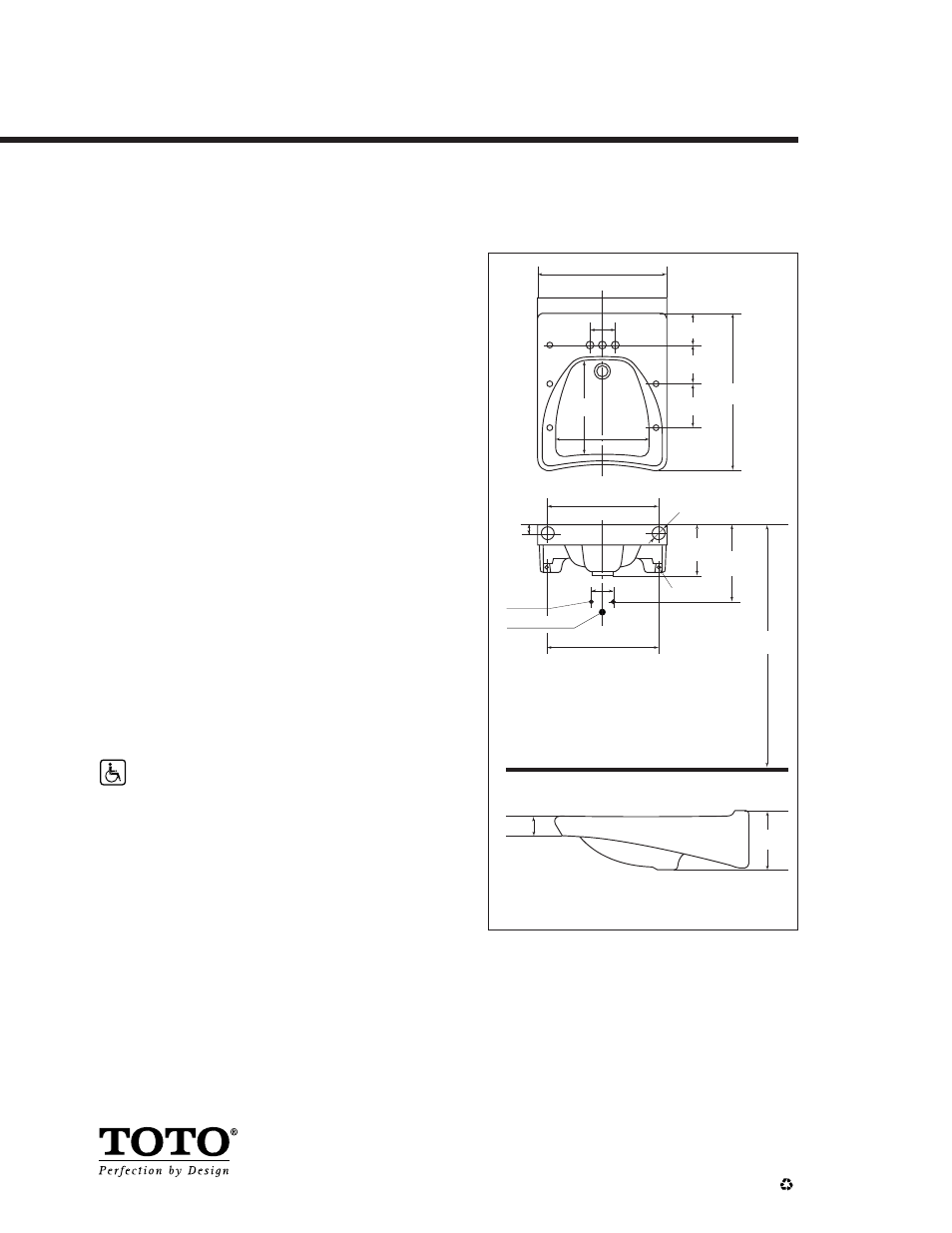

LT308.4 - Wheelchair Users Lavatory
■ DESIGN
Durable, wheelchair users lavatory with distinctive
ADA styling. Vitreous china offers years of quality use.
■ SPECIFICATIONS
Waste: 1-1/4" O.D.
Size: 20-1/2"W x 27"D
Basin: 15-1/8"W x 14-3/4"D
Warranty: One Year Limited Warranty
Material: Vitreous china
Shipping Weight: LT308 / LT308.4 / LT308.11
56 lbs.(23.9 kg.)
Shipping Dimensions: LT308 / LT308.4 / LT308.11
29-1/8"L x 22-7/8"W x 10-5/8"H
Fixture dimensions meet ANSI/ASME standard A112.19.2M
and CAN/CSA B 45 requirements.
Listing / Approvals: IAPMO/UPC, CSA, City of Los
Angeles, State of Massachusetts and others.
Recommended carrier: Jay R.Smith 0700 (- 27 - M31)
(Concealed Arms) or equal.
Meets the American Disabilities Act Guidelines and ANSI
A117.1 requirements when lavatory rim installed 864mm
(34") from finished floor.
These dimensions and specifications are subject to change
without notice.
LT308
Wheelchair Users Lavatory
* Suggested Dimension
