ABY782Q - Clayton™ 60” x 32” Tile-in Soaker Bathtub 3 Flange
■ STYLE
Designed to match our line of residential
bathroom products, TOTO’s
®
tubs complete any bathroom suite.
Lucite cast acrylic construction provides
the ultimate in strength and durability,
while a slip-resistant surface enhances
safety in the bath.
■ SPECIFICATIONS
Size: 60"L x 32"W
Depth: 21"
Warranty: 5 Year Limited Warranty
on Acrylic Tub
1 Year Limited Warranty
on Components and Parts
Material: Lucite Cast Acrylic
Shipping Weight:
ABY782P/Q
86 lbs.
Shipping Dimensions:
ABY782P/Q
68"L x 40"W x 28"H
Gallons: ABY782P/Q
74 to overflow
Fixture meets ANSI/ASME standard Z124.1,
and C-UPC requirements.
These dimensions and specifications are
subject to change without notice.
Use TOTO ® cut template to assure rough
in dimensions.
ABY782P/Q
Clayton™ 60'' x 32'' Tile-in Soaker Bathtub
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 10/06 #D
Printed on recycled paper
REV 02/06

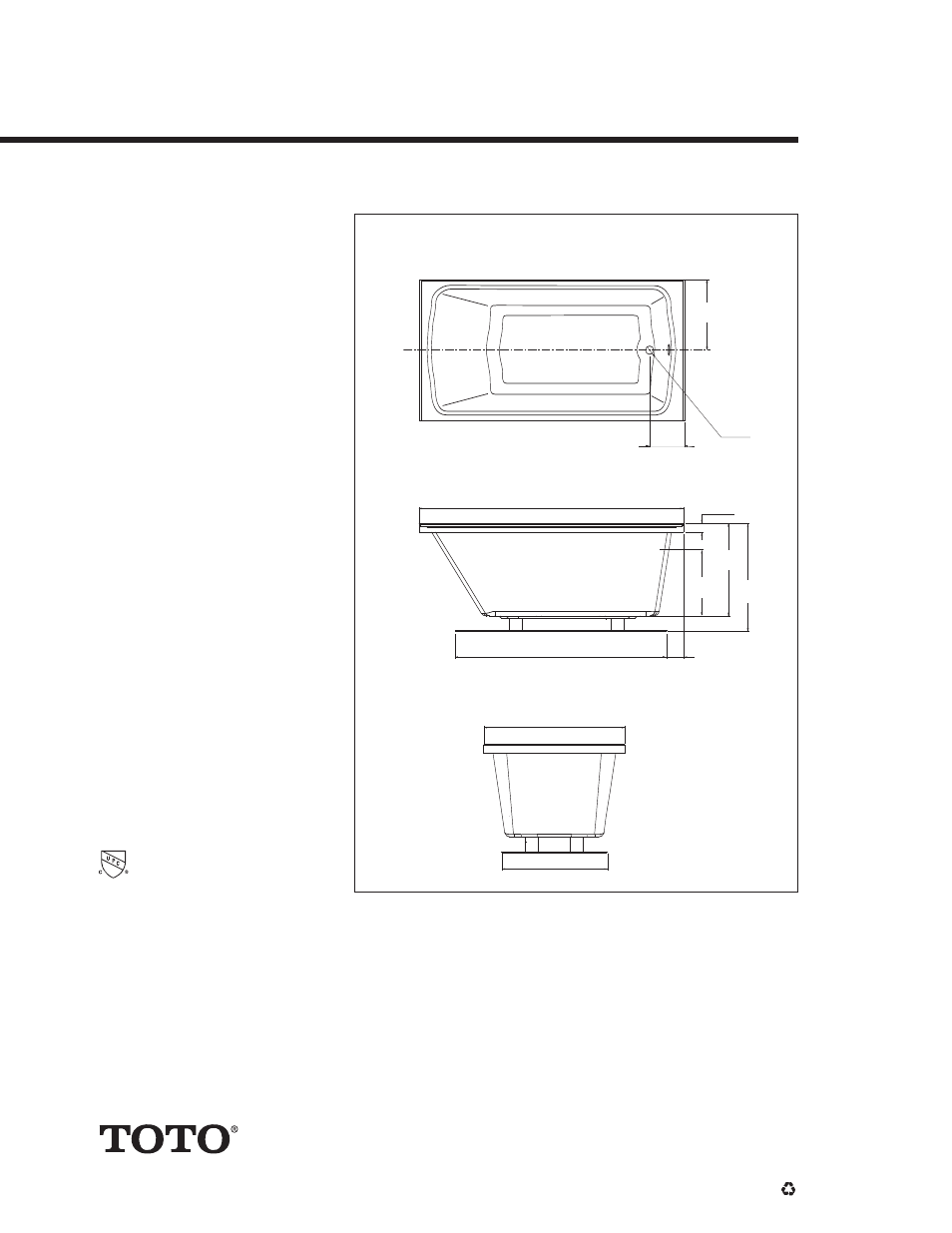

16"
(407mm)
8-1/4"
(210mm)
4"
(102mm)
60" (1524mm)
48" (1219mm)
32" (813mm)
24" (610mm)
ø1-7/8"
(48mm)
21"
(523mm)
16"
(406mm)
24-1/2"
(623mm)
2"
(50mm)
ABY782P Left Drain / 3 Flange
ABY782Q Right Drain / 3 Flange
