SPECIFICATIONS
• Waste 1-1/4" O.D.
• Size 24-7/8"L x 14"W x 15"H
• Faucet BT500AR - For single hole,
centerset, deck-mounted
bidet faucet.
BT500B - With fl ushing rim
and vertical spray. Designed
for deck-mounted bidet
faucet with diverter and
vacuum breaker.
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight BT500AR/BT500B - 38.7lbs
• Shipping Dimensions BT500AR/BT500B -
28-1/2"L x 17-3/8"W
x 16-3/8"H
BT500AR/BT500B
Piedmont ® Bidet
# SS-00230 v.03
Printed in U.S.A. | © TOTO USA 05/11 | Printed on recycled paper ♻
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice

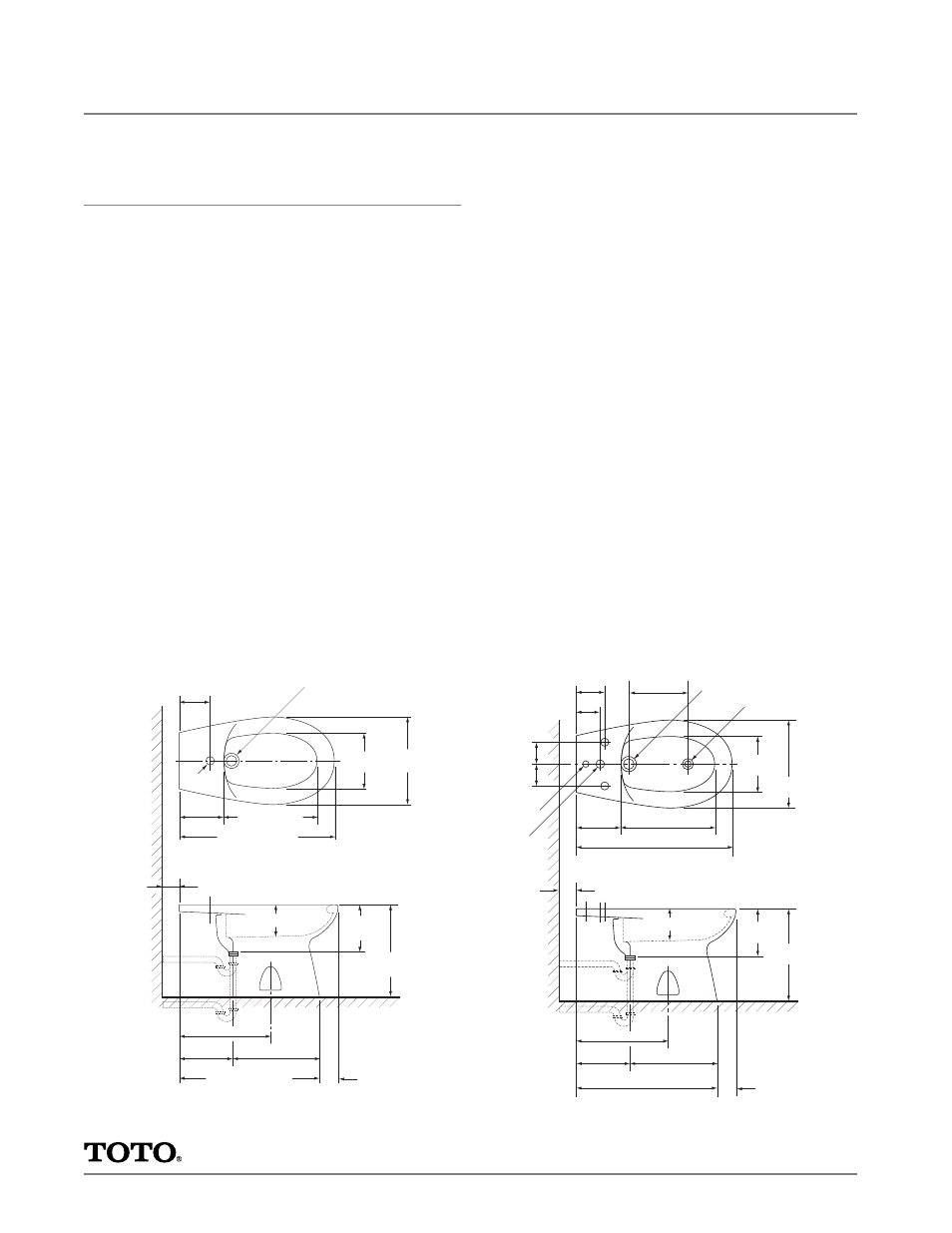

15" (380mm)
13-3/4" (350mm)
13-3/8" (340mm) 8-1/4"
(210mm)
24-7/8" (630mm)
8-3/4"
(225mm)
7-5/8"
(195mm)
5-7/8" (150mm)
14"
(355mm)
15"
(380mm)
9-1/2" (240mm)
7-1/8"
(180mm)
4-1/2" (114mm)
3-3/4" (95mm)
1" (25mm)
1-3/8" (35mm)
3-1/2" (89mm)
3-1/2" (89mm)
3" (76mm)
min. suggested
3-1/8" (80mm)
21-5/8" (550mm)
Spray Hole 1" (25mm)
1- 3/4" Dia. Drain Outlet
15" (380mm)
7-1/8"
(180mm)
3-3/4"
(95mm)
ш1-3/8"
(ш35mm)
3" (76mm)
min. suggested
3-1/8" (80mm)
13-3/4" (350mm)
13-3/8" (340mm)
21-5/8" (550mm)
24-7/8" (630mm)
8-3/4"
(225mm)
7-5/8"
(195mm)
14"
(355mm)
15"
(380mm)
8-1/4"
(210mm)
ø1-3/4"
Drain Outlet
5-7/8" (150mm)
BT500AR BT500B
