PortaCom Wired Intercom Owners Manual
For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com
3
PoWEr sWitCh
PoWEr iNDiCator LiGht oUtPUt JaCKs
aC/DC iNPUt JaCK
LiNE iNPUt JaCK
a/B ChaNNEL sWitCh
VoLUmE KNoB
CaLL BUttoN CaLL LiGht
miC mUtE BUttoN hEaDsEt JaCK
NEED morE hELP? View demonstration videos on proper system setup and operation at our website: www.anchoraudio.com
NotE: Custom length microphone cables are available from anchor audio.

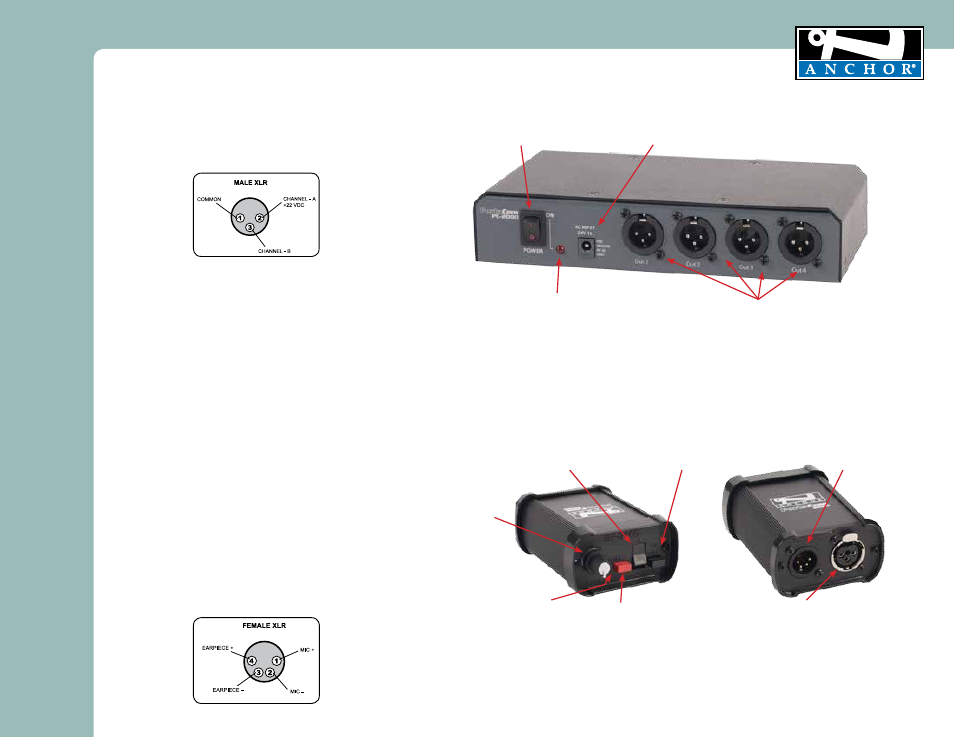

PC-2000 PoWEr CoNsoLE - CoNtroL PaNEL
PB-2000 BELt PaCK - toP/Bottom
PC-2000 PoWEr CoNsoLE
The PC-2000 Power Console can power up to 20 BP-2000 Belt Packs over
a combined total of 2,500 feet of cable. It has a power switch, an input for
connecting the AC adapter and four 3-pin XLR output jacks.
Using the RM-100 bracket you can mount one or two PC-2000s in a
standard rack.
Belt packs are connected to the PC-2000 using standard mic cable with
3-pin XLR connectors.
BP-2000 BELt PaCK
The BP-2000 Belt Pack has a female, 3-pin XLR, Line Input Jack and a
male, 4-pin XLR, Headset Jack. Both jacks are located on the bottom side
of the belt pack. Power is supplied through the microphone cable by the
PC-2000 Power Console.
The BP-2000 controls can be found on the belt pack top and feature:
Headset Volume Control, A/B Channel Switch,
Mic Mute Button & Call Light & Button
The Headset Volume Control adjusts only the individual headset listening
level, not the volume level of the entire system.
Setting the Mic Mute Button to “on” enables the headset microphone.
Setting the button to “off” will short or mute the microphone. The Mic Mute
Button does not affect the headset listening volume.
Pushing the Call Button will light the Call Light on all belt packs connected
to the system. Use the Call Light to alert any users who may not be wearing
their headsets.
h-2000 & h-2000s PortaCom hEaDsEts
PortaCom comes with single-earpiece (H-2000S) and/or dual-earpiece (H-
2000) headsets. To use plug the headset cable into the bottom of the
BP-2000 Belt Pack. Adjust the headset listening level using the Headset
Volume Control on the belt pack.
The headset’s female 4-pin XLR connector plugs into the 4-pin XLR jack on
the bottom of the belt pack. A wiring diagram of the headset connector is
shown at right.
