TWO YEAR WARRANTY
Admiral Lectern Owners Manual
For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com
2

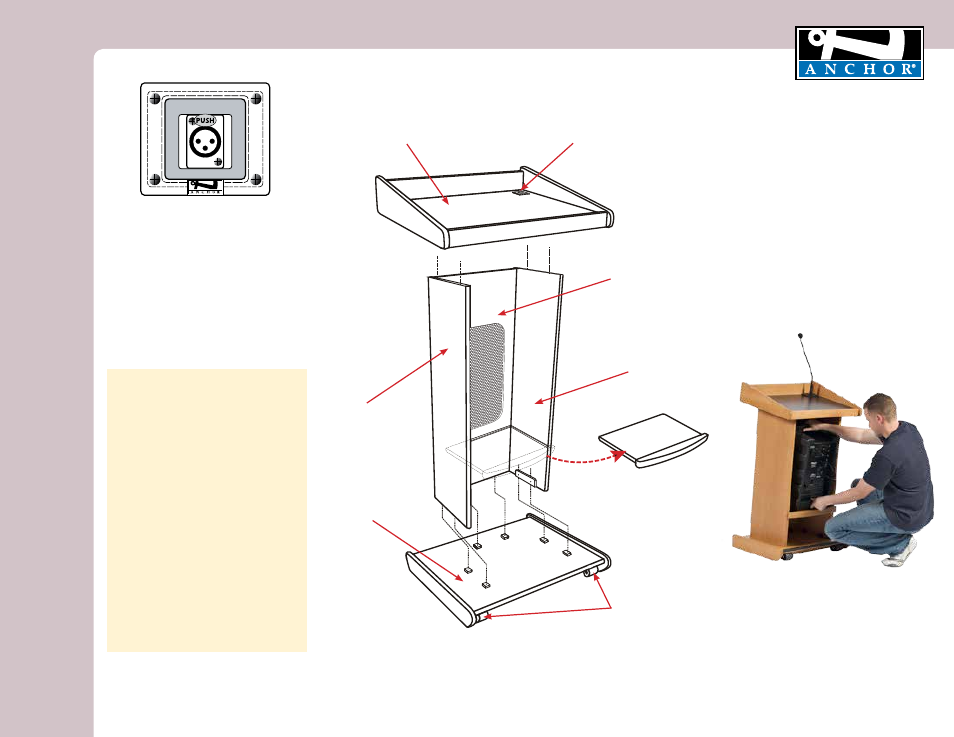

ADMIRAL PORTABLE LECTERN FL-7500
(A) LECTERN BASE
(C) RIGhT SIDE PANEL
(B) LEFT SIDE PANEL
(D) FRONT PANEL
(E) LECTERN ShELF
(F) LECTERN TOP
TILT-N-ROLL CASTERS
GOOSENECk ShOCk MOUNT jACk
GOOSENECk ShOCk MOUNT jACk
ASSEMBLY INSTRUCTIONS
You will need a phillips-head screwdriver to
complete assembly.
1. Place BASE (A) on level ground with wheel
side down
2. Attach left (B) & right (C) SIDE PANELS to
BASE using
two screws each
3. Fit FRONT PANEL (D) into place and screw
into BASE
4. Insert SHELF (E) as shown and secure
with screw
5. Position TOP (F) and attach from below
with six screws
6. Plug gooseneck microphone firmly into
JACK on TOP
IMPORTANT: Do not over tighten screws.
INSTALL A PORTABLE SOUND SYSTEM
The Admiral Lectern is designed to house a
portable sound system like the Anchor Audio
Liberty Platinum, Go Getter or Explorer Pro. You
must assemble the lectern before installing a
sound system.
CAUTION: Remove sound system before moving lectern!
INSTALL A SOUND SYSTEM
After you assemble the lectern and position it
on a flat surface:
1. Place sound system inside cabinet on
shelf as shown
2. Connect lectern microphone cable to
sound system
See your sound system manual for instructions
on its operation.
ADMIRAL LECTERN PARTS LIST
(A) Base . . . . . . . . . . . . . . . . . . . . . . . . 1 ea.
(B) Left Side Panel . . . . . . . . . . . . . . . . 1 ea.
(C) Right Side Panel . . . . . . . . . . . . . . . 1 ea.
(D) Front Panel . . . . . . . . . . . . . . . . . . . 1 ea.
(E) Shelf . . . . . . . . . . . . . . . . . . . . . . . . 1 ea.
(F) Top . . . . . . . . . . . . . . . . . . . . . . . . . 1 ea.
(G) Screws . . . . . . . . . . . . . . . . . . . . . 13 ea.
