Data Sheet

DTA-LAN

IP - Desktop Call Station, 24 Illuminated Buttons

IP-Network

WAN / VPN

DTA-LAN

SV01

CPU1

V100

TG01

V100

DVS-21

WPS-08 LAN

Application Description:

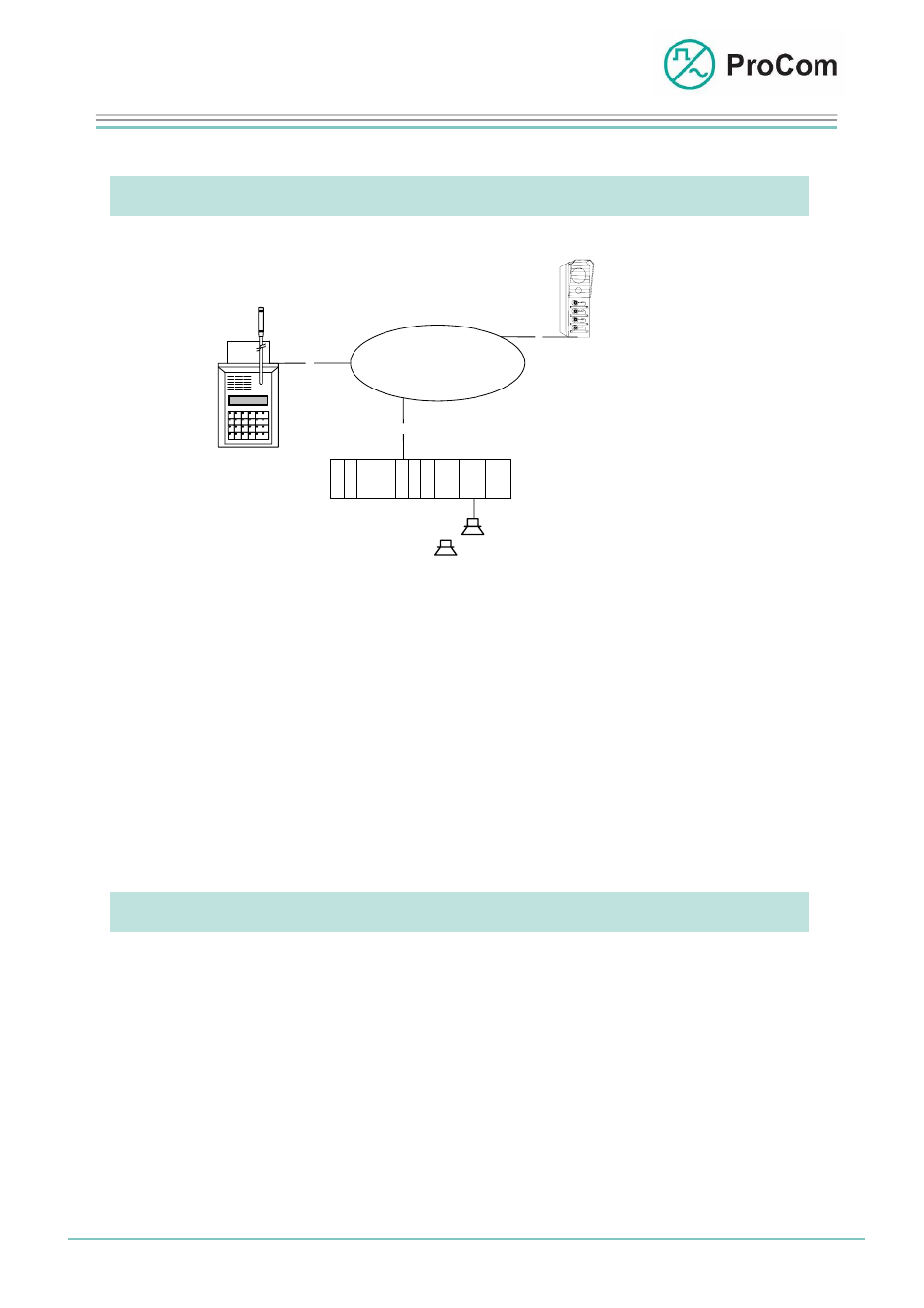

Fig.2: Application example for DTA-LAN

ProCom GmbH's

LAN call stations are connected to the IP network

(WAN/VPN) over plug-in Ethernet LAN cable. The LCPU system attachment
makes available the IP interface of the DVS-21 system.

The call centres are configured using the ICS configuration software.
Conditions such as busy indications, speech acknowledgement and call
signalling can be displayed by the two-colour LEDs. The display and blink
behaviour of the LEDs can be programmed with the system software ICS.

Functions:

- Freely programmable key functions (e.g. PA/intercom operation with

acknowledge function, alarm display and acknowledge, louder/softer, …)

- Display

for

configuration

data/status display/connection

information/message operation signals

- Key illumination over two-colour LEDs (e.g.

acknowledgement/malfunction/busy indication)

- Floating contacts to remotely monitor and control external devices
- Switching on of an external loudspeaker 6 W/8 Ohm

Date:

13.03.2009 Page:

2/8 Author:

HS Document-No.:

DB_DTA-LAN_1524_00
