Technical data:
Dimension (H x W x D): 476 x 249 x 299 mm
Power Requirements: 230 VAC , 48 VDC, 30 W
Operating Temperature: 5 to 40°C
Relative Humidity:
5 to 85% (non condensing)
Certification:
Electrical Safety: Low Voltage Directive 73/23/EWG, CE Marking Directive93/68/EWG
(IEC 60950-1:2001, EN 60950-1:2001)
MC: EMC Directive 89/336/EWG, CE Marking Directive 93/68/EWG
(EN 55022 Class B, EN 50121-4, EN 61000-6-3, -4, EN 55024,
EN 61000-6-1, -2)
Telecom: R&TTE Directive 1999/5/EC (TBR 3)
Environmental IEC 60721-3-3, IEC 60068-2-6, IEC 60068-2-1, -2, 14, 30, 78

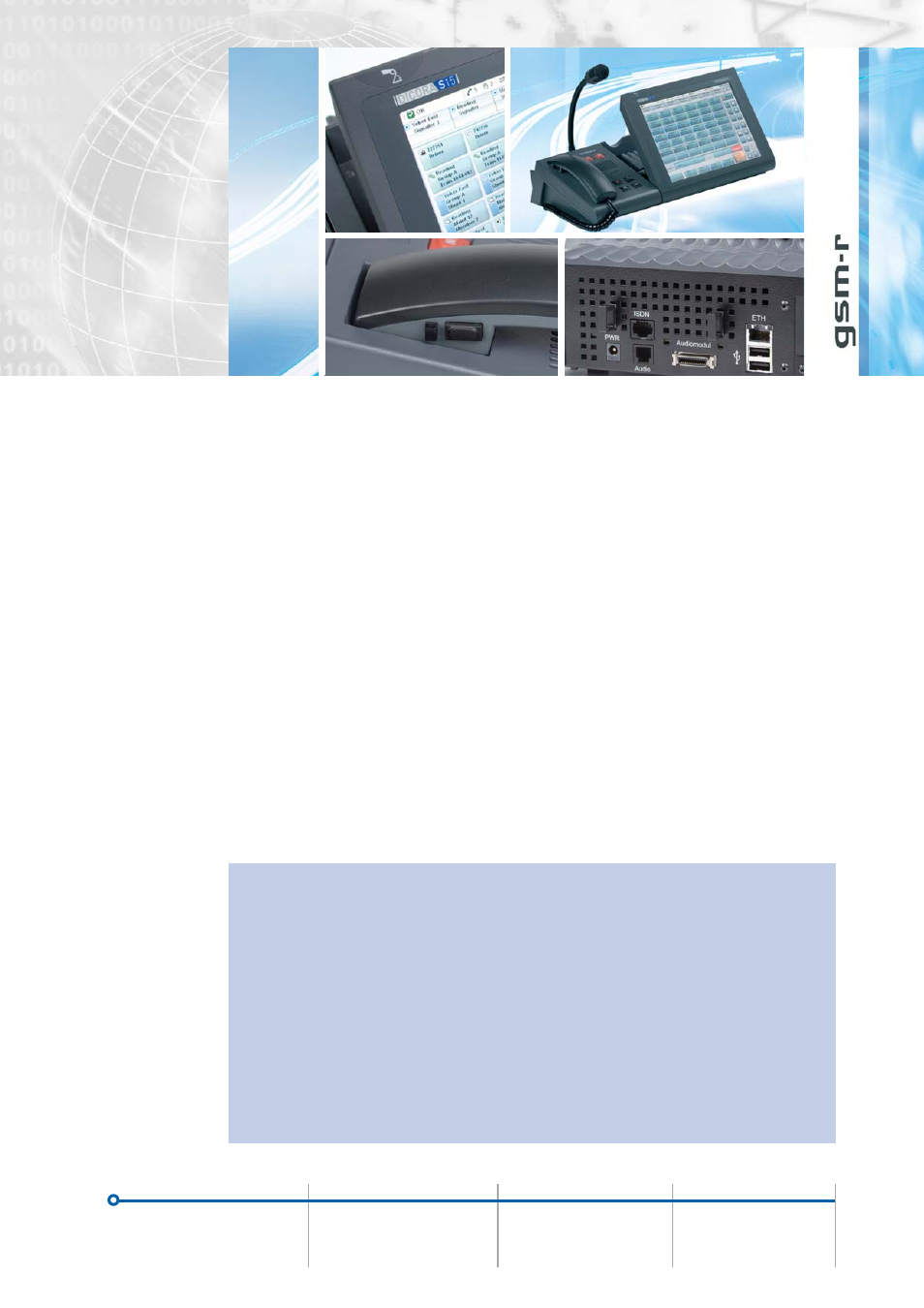

FREQUENTIS Dispatcher Terminals – efficient terminals tailored to your need
System integration (optional):
• Analogue radio control (PTT, SQU))
• Remote control of doors, lights...
• Customer specific enhancements
• Flexible GUI design (option: tailoring)
• Language: English, German
• Remote Configuration & maintenance
without interruption of the ongoing session
Hardware & Interfaces
• Swivelling 12,1” touch panel
• ISDN Basic Rate Interface
• Ethernet LAN Interface (10/100 Base-T)
• Analogue recording output (optional)
• 2 Mobile Radio Interfaces (optional)
• 2 USB interfaces
• Headset interface
Functions:
Standard telephony:
• Make call, receive call, conference and hold
• Full duplex hands free operation
• Call list, dial pad, CLIP, COLP
• Speed Dial buttons, call wizard
• Telephone books
Rail specific telephony:
• Functional addressing
• Priority (emergency) calls
• Location dependent addressing
• Group calls and Broadcast calls
• Text messaging (SMS)
• Role management & free seating (optional)
• Train lists (optional)
Optional wireless solution
The DICORA S15 can optionally be connected to a GSM-R radio module to provide dispatching functionality via a
direct connection to the mobile network. This solution can be operated in a switch over configuration with the ISDN
and Ethernet interface, providing wireless backup for voice and data communication in the event of a line connec-
tion failure. The DICORA S15 (with wireless option = Dicora S15W) can also be provided as a “wireless only” solution.
