Data Sheet
WPS-01
Weatherproof Call Station, 1 Toggle
Description Level Crossing Intercom:
Because of varying distances between the individual components, and the
technical requirements resulting from this, the level crossing intercom is made in
two variations:
Variation 1: Operation on non-isolated lines
The call stations at level crossings are supplied centrally from the
DVS-21.
Variation 2:
Operation on isolated lines
The call stations at level crossings are supplied locally with 48 V.

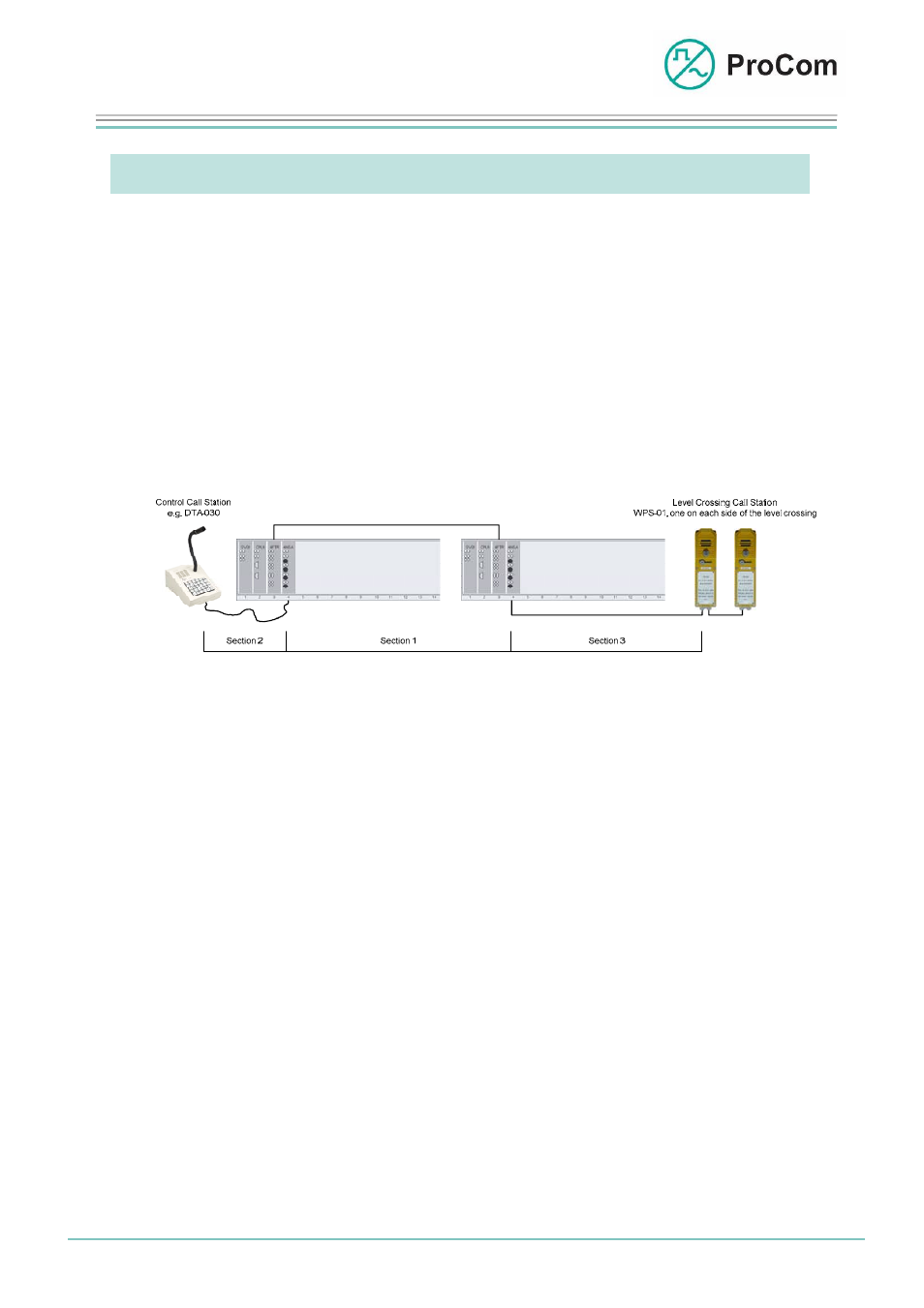

Schematic illustration of a level crossing intercom
The above illustration shows the configuration of an level crossing intercom with
two central exchanges connected through an E1 interface.
When only one DVS-21 is used then the 4FTR (with E1 attachment) is
unnecessary.
The distances possible between the individual components vary depending on the
sections:
Section 1: Distance between the DVS-21 systems.
With suitable 2 Mbit/s transmission technology any distances
are possible.
Section 2:
Distance between control call station and the DVS-21 system.
Typical range <500 m
Section 3: Distance between the level crossing (level crossing call
stations) and the DVS-21 system.
The distances achievable in section 3 depend on the kind of supply and the cable
diameter used.
