Procom CPR-6_15_20_25_30SP User Manual
Procom

Rated power
6 W / 100 V - 30 W / 100 V
Effective frequency range
350 - 10.000 Hz
SPL @ 1Watt / 1m
110 dB
SPL @ full power / 1m
124 dB
Tappings @ 100 V line
1:1 / 1:0,5 / 1:0,25
Dimensions
180 mm x 120 mm x 230 mm
Net weight / Colour
2,0 kg / RAL 7035
IP Code
IP 66 / -40°C … +80°C
with cable gland entry
Connector
ceramic terminal, fourfold
Compliance
British Standard BS 5839
Part 8 Voice Alarm compliant
Hergestellt in Deutschland
Made in Germany
All rights and technical modifications reserved V1.2

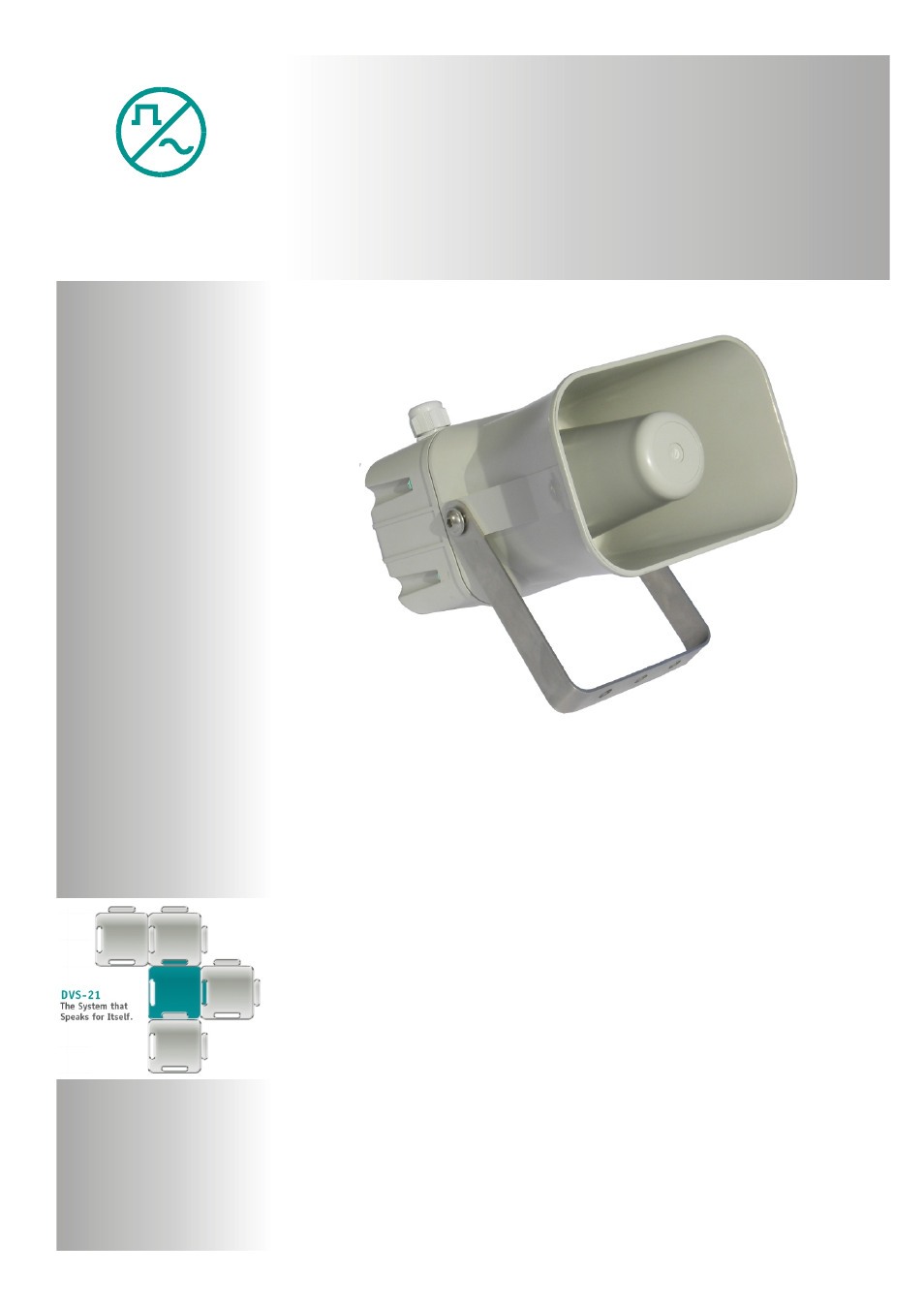

ProCom loudspeaker
CPR-6/15/20/25/30SP
Horn speaker made from ABS
Technical Specifications
