P.I.P.–PA
Page 5
F. Balanced Mic Input
Low-impedance mic line connec-
tion is made with these connec-
tors in similar fashion as the line-
level inputs (E).
G. Mic Input Gain Control
Use a small, flat-blade screwdriver
to adjust the mic input sensitivity
with these controls.
H. Remote Switch Input
The remote control switches for
both Channel 1 and Channel 2 are
attached to this connector. (The
ground leads are common.) With
no switch attached, the line-level
inputs (E) are normalled to the
amplifier inputs.

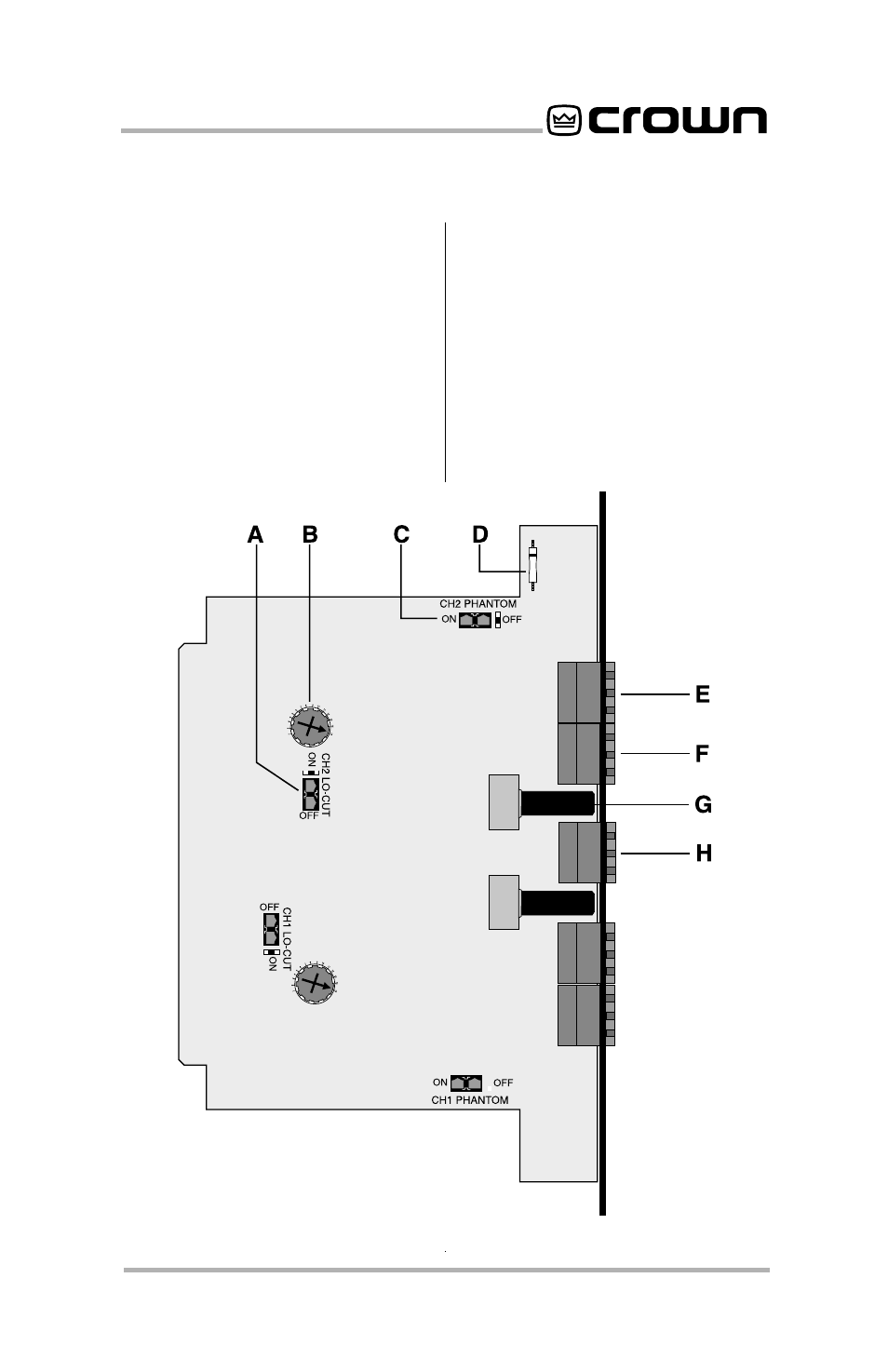

Fig. 2.1 Bottom View
