IQ-USM 810 IQ Digital Processor / Digital Mixer
IQ-USM 810 Reference Manual
3.4 Connect Auxiliary Devices (Step 4)
Connect any external circuits you plan to use to control
and/or monitor the IQ-USM 810 via the Control Port.
Figure 3.10 shows pin assignments for the Control Port.
See Section 6.2 for information on the operation of the
Control Port, and for examples of wiring circuits to the
Control Port connector.

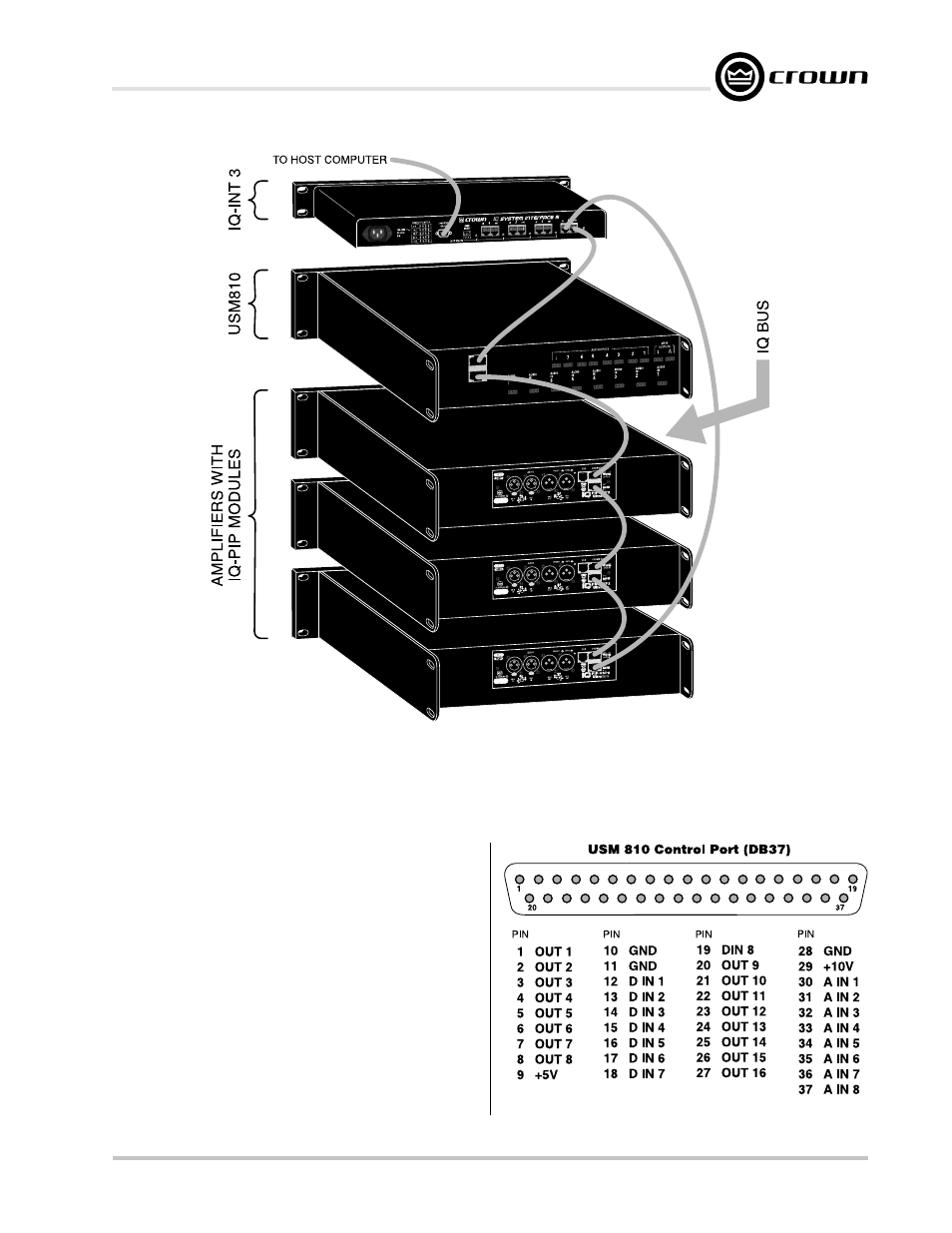

Figure 3.9 IQ Bus Wiring "Loop" from Output to Input of Each IQ Component
Figure 3.10 Control Port Pin Assignment
