Tel3gc/tel5gc, Helix, Ecopower – Factory Direct Hardware Toto TEL5GC10#CP User Manual
Page 2: Faucet, Suggested engineering specification, Diagram, Specifications
Single Supply
Thermal Mixing
Dimensions: Inch (mm)
MAX. DECK THICKNESS: 2” (50mm); DIA. FAUCET HOLE: 1-3/8” (35mm)
TEL3GC/TEL5GC
Helix
®
EcoPower
®
Faucet
SPECIFICATIONS
Product
Power supply
Hot/Cold-water supply
Water supply connection
Water Consumption
Water saving function
Detection time
Detection range
Discharge water
temperature control range
Anti-scald safety feature
Warranty
TEL3GC10#CP- Single Supply, Single Hole - Discharge: On-demand; Up to 10 seconds while activated.
TEL5GC10#CP- Thermal Mixing, Single Hole - Discharge: On-demand; Up to 10 seconds while activated.
TEL3GC60#CP- Single Supply, Single Hole - Discharge: On-demand; Up to 60 seconds while activated.
TEL5GC60#CP- Thermal Mixing, Single Hole - Discharge: On-demand; Up to 60 seconds while activated.
Optional Parts: TN71V100S - 4" cc Cover Plate; 71244T8CC - 8" cc Cover Plate
Hydro-Power Charge. 10 years based on using the faucet 11 times a day for 5 seconds or more
(backup battery: 4 years at 4,000 cycles per month without recharging)
Minimum required water pressure: 20PSI
Maximum water pressure: 125PSI
1/2" NPSM
10 Second Faucet: 0.17 gal. per cycle (max); 60 Second Faucet: 1.06 gal. per cycle (max)
Automatically turns OFF when user removes hands. Maximum continuous run time is 10 or 60 seconds.
ON feature: Immediate
OFF feature: 1 second delay
Factory set from 2 1/4”. The faucet automatically sets the detection range according to
the size of the basin.
Thermal Mixing Faucet: Cold water - 104°F (Max)
(When used under standard conditions)
Provides the user protection against exposure to excessive water or outlet temperature
(Thermal mixing faucet, only) fluctuation resulting from normal variation in inlet water pressure.
Limited three (3) year warranty on all component parts. Details available upon request.
Listings
SUGGESTED ENGINEERING SPECIFICATION:
TOTO Model No.
Automatic infrared sensor activated faucet. Anti-scald,
thermal mixing chamber (thermal faucets only).
Automatic sensor adjustment on installation.
Maximum discharge 0.17 gallons per 10 second cycle.
Electrical components separated from spout assembly and sealed in
waterproof compartments. Single hole faucet with optional 4" cc
and 8" cc cover plates. Through the use of TOTO’s EcoPower
system, using the faucet 11 times a day for 5 seconds or more will
fully recharge the faucet.

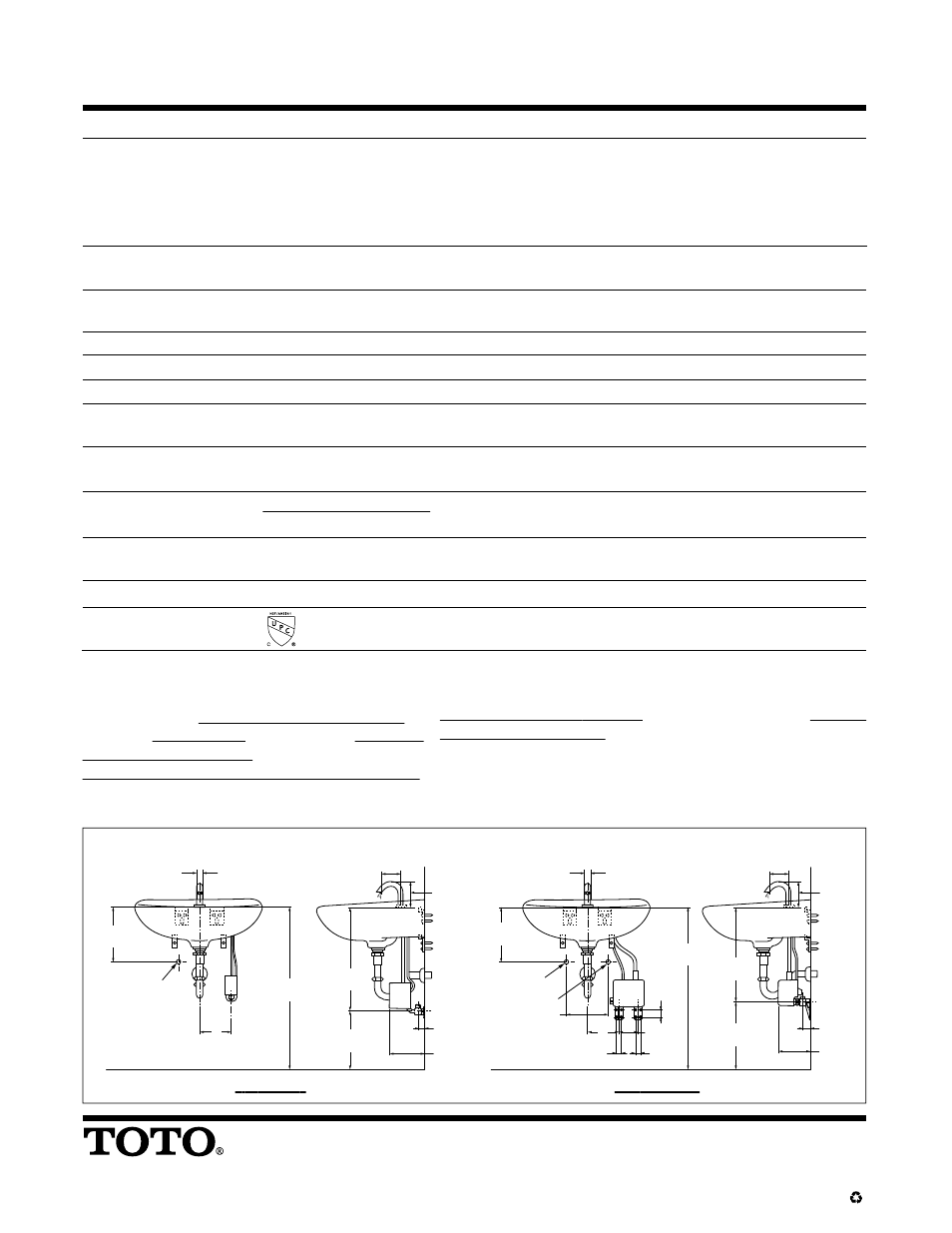

DIAGRAM:
U.S. Patent No. 4742583, 5758688, 6076550 U.S. Patent Pending No. PCT/JP01/04079, PCT/JP01/04068, 2002-269745, 2002-269746, 2002-264784
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD.
Printed on recycled paper
SPECIFICATION SHEET
SS-00418, TEL3(5)GC, V.03
Complies with and exceeds California AB 1953 Vermont S. 152
1"
(25
mm
)
1"
(25
mm
)
1-2/3"
(42
mm
)
3-3/4"
(95
mm
)
1-1/2"
(38
mm
)
8"(203
mm
)
6"
(152
mm
)
6-1/2"
(165
mm
)
10-1/4"
(260
mm
)
34"
(864
mm
)
17-1/8"
(436
mm
)
16-7/8"
(428
mm
)
HOT
COLD
F.L.
1-3/16"
(30
mm
)
6-5/8"
(169
mm
)
4-15/16"
(125
mm
)
6"
(152
mm
)
5-1/2"
(140
mm
)
10-1/4"
(260
mm
)
1"
(25
mm
)
1"
(25
mm
)
31"
(787
mm
)
10-1/4"
(260
mm
)
6-5/8"
(169
mm
)
4-15/16"
(125
mm
)
20-3/4"
(527
mm
)
Water supply
F.L.
30°
30°
