1-3/4"(45mm)
Faucet
8-5/8 "
(218mm)
6-5/8 "
(168mm)
6"
(152mm) 6"
(152mm)
17-1/8"
(435mm)
6-5/8"
(168mm)
8-1/8"
(207mm)
2-3/4"
(70mm)
1-5/8"
(42mm)
8"
(203mm)
1" (25mm)
3-3/4" (95mm)
1-3/8" (36mm)
Thermal Mixing Controller
10-1/4"
(260mm)
1-1/4"
(159mm)
1-1/8"
(30mm)
2-3/4"
(70mm) 75°
8-1/8"
(207mm)
Water
Supply
HOT
COLD
Single Supply
Comtroller
1-3/4"(45mm)
Faucet 6-5/8"
(168mm)
TEL3GM/TEL5GM
Ryohan ® EcoPower ® Faucet
SPECIFICATIONS
Product
Power supply
Hot/Cold-water supply
Water supply connection
Water Consumption
Water saving function
Detection time
Detection range
Discharge water
temperature control range
Anti-scald safety feature
Warranty
TEL3GM10#RY - Single Supply, Single Hole - Discharge: On-demand; Up to 10 seconds while activated.
TEL5GM10#RY - ThermalMixing, Single Hole - Discharge: On-demand; Up to 10 seconds while activated.
TEL3GM60#RY - Single Supply, Single Hole - Discharge: On-demand; Up to 60 seconds while activated.
TEL5GM60#RY - ThermalMixing, Single Hole - Discharge: On-demand; Up to 60 seconds while activated.
Hydro-Power Charge. 10 years based on using the faucet 30 times a day for 5 seconds or more
(backup battery: 4 years at 4,000 cycles per month without recharging)
Minimum required water pressure: 20PSI
Maximum water pressure: 125PSI
1/2" NPSM
10 Second Faucet: 0.13 gallon per cycle (max); 60 Second Faucet: 0.80 gallon per cycle (max)
Automatically turns OFF when user removes hands. Maximum continuous run time is 10 or 60 seconds.
ON feature: Immediate
OFF feature: 1 second delay
Factory set from 2 1/4”. The faucet automatically sets the detection range according to
the size of the basin.
Thermal Mixing Faucet: Cold water - 104°F (Max)
(When used under standard conditions)
Provides the user protection against exposure to excessive water or outlet temperature
(Thermal mixing faucet, only) fluctuation resulting from normal variation in inlet water pressure.
Limited three (3) year warranty on all component parts. Details available upon request.
Listings
U.S. Patent No. 4742583, 5758688, 6076550 U.S. Patent Pending No. PCT/JP01/04079, PCT/JP01/04068, 2002-269745, 2002-269746, 2002-264784
SUGGESTED ENGINEERING SPECIFICATION:
TOTO Model No.
Automatic infrared sensor activated faucet. Anti-scald,
thermal mixing chamber (thermal faucets only).
Automatic sensor adjustment on installation.
Maximum discharge 0.13 gallons per 10 second cycle.
Electrical components separated from spout assembly and sealed in
waterproof compartments. Through the use of TOTO’s EcoPower
system, using the faucet 30 times a day for 5 seconds or more will
fully recharge the faucet.

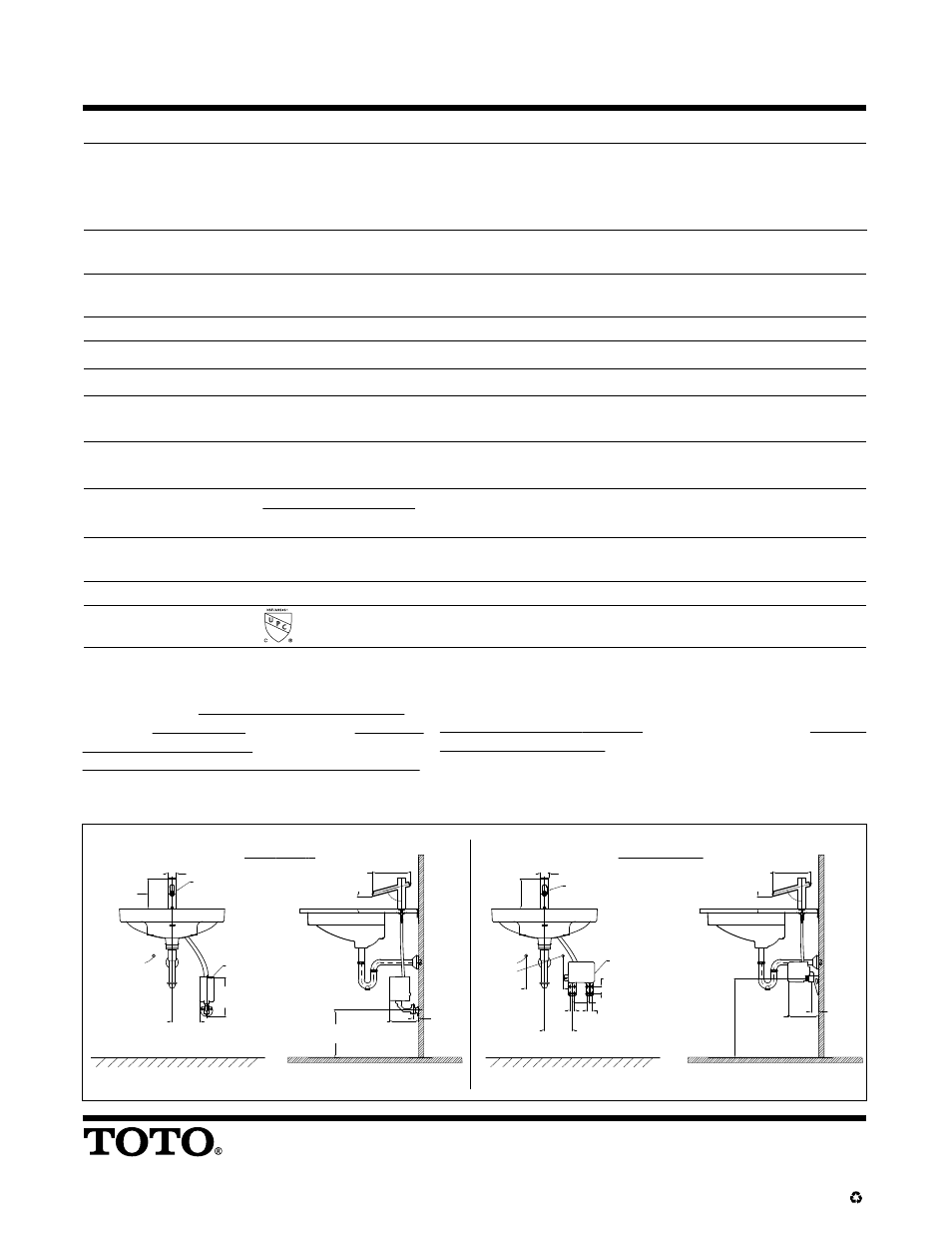

DIAGRAM:
Please confirm the basin dimension of lavatory, to which the faucet will be installed,
making sure that it has recommended minimum dimensions of (L x W: 15" x 15"). Faucet hole diameter: Min. 28mm (~ 1-1/16")
to Max. 35mm (~ 1-3/8")
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD.
Printed on recycled paper SPECIFICATION SHEET
SS-00419, TEL3(5)GM, V.03
Single Supply Thermal Mixing
Complies with and exceeds California AB 1953 Vermont S. 152
Dimensions: Inch (mm)
75°
MAX. DECK THICKNESS: 2” (50mm); DIA. FAUCET HOLE: 1-3/8” (35mm)
