TEL3LG/TEL5LG
Gooseneck EcoPower
®
Faucet
SPECIFICATIONS
Product
TEL3LG10#CP - Single Supply, Single Hole - Discharge: On-demand; Up to 10 seconds while activated.
TEL5LG10#CP - Thermal Mixing, Single Hole - Discharge: On-demand; Up to 10 seconds while activated.
Optional Parts: TN71V100S - 4" cc Cover Plate; 71244T8CC - 8" cc Cover Plate
Power supply
Hydro-Power Charge. 10 year based on using the faucet 30 times a day for 5 seconds or more
(Backup battery: 4 years at 4,000 cycles per month w/o recharging
Hot/Cold-water supply
Minimum required water pressure: 20PSI
Maximum water pressure: 125PSI
Water supply connection
1/2" NPSM
Water Consumption
10 Second Faucet: 0.09 gallons per cycle (max) / 0.5 gallons per minute
Water saving function
Automatically turns OFF when user removes hands. Maximum continuous run time is 10 seconds.
Detection time
ON feature: Immediate
OFF feature: 1 second delay
Detection range
Factory set from 2 1/4”. The faucet automatically sets the detection range according to
the size of the basin.
Discharge water temperature
Thermal Mixing Faucet: Cold water - 104°F (Max)
control range
(When used under standard conditions)
Anti-scald safety feature
Provides the user protection against exposure to excessive water or outlet temperature
(Thermal mixing faucet, only) fluctuation resulting from normal variation in inlet water pressure.
Warranty
Limited three (3) years warranty on all component parts. Details available upon request.
Listings
U.S. Patent No. 4742583, 5758688, 6076550 U.S. Patent Pending No. PCT/JP01/04079, PCT/JP01/04068, 2002-269745, 2002-269746, 2002-264784
SUGGESTED ENGINEERING SPECIFICATION:
TOTO Model No.
Automatic infrared sensor activated faucet. Anti-scald,
thermal mixing chamber (thermal faucets only).
Automatic sensor adjustment on installation.
Maximum discharge 0.09 gallons per 10 second cycle.
Electrical components separated from spout assembly and sealed in
waterproof compartments. Single hole faucet with optional 4" cc and
8" cc cover plates. Through the use of TOTO’s EcoPower system,
using the faucet 30 times a day for 5 seconds or more will fully
recharge the faucet.

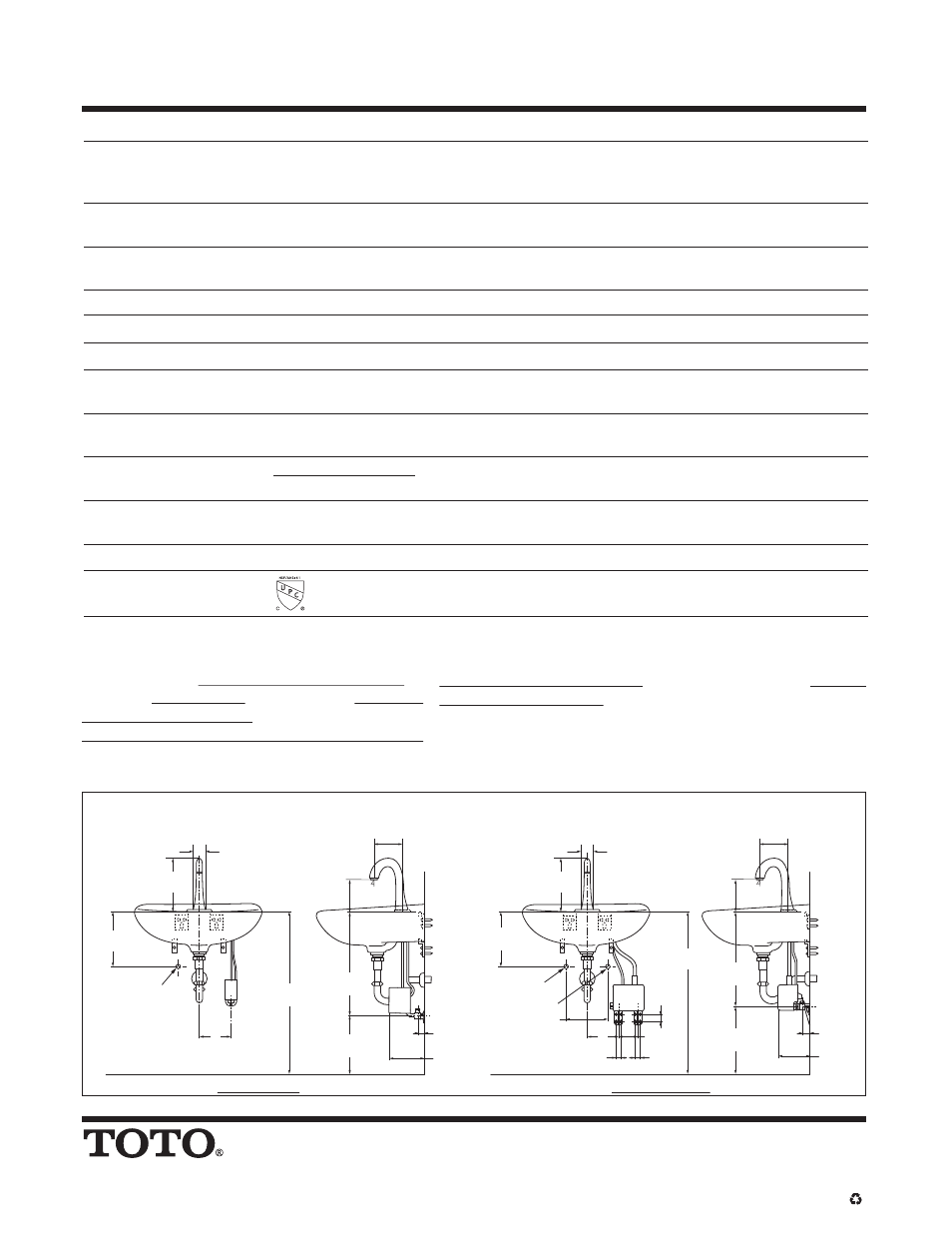

DIAGRAM:
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD.
Dimensions: Inch (mm)
Single Supply
Thermal Mixing
1"
(25
mm
)
1"
(25
mm
)
1-2/3"
(42
mm
)
3-3/4"
(95
mm
)
1-1/2"
(38
mm
)
8"(203
mm
)
6"
(152
mm
)
6-1/2"
(165
mm
)
10-1/4"
(260
mm
)
34"
(864
mm
)
17-1/8"
(436
mm
)
16-7/8"
(428
mm
)
5-7/8"
(149
mm
)
10°
10°
5-3/4"
(146
mm
)
HOT
COLD
F.L.
1-3/16"
(30
mm
)
6"
(152
mm
)
5-1/2"
(140
mm
)
10-1/4"
(260
mm
)
9-1/8"
(231
mm
)
9-1/8"
(231
mm
)
2"
(50
mm
)
2"
(50
mm
)
31"
(787
mm
)
10-1/4"
(260
mm
)
20-3/4"
(527
mm
)
Water supply
F.L.
5-7/8"
(149
mm
)
5-3/4"
(146
mm
)
Complies with and exceeds California AB 1953 Vermont S. 152
Printed on recycled paper
SPECIFICATION SHEET
SS-00421, TEL3(5)LG, V.03
MAX. DECK THICKNESS: 2” (50mm); DIA. FAUCET HOLE: 1-3/8” (35mm)
