Self-Generating EcoPower ® System
Sensor Faucet, Helix™ Spout
SPECIFICATIONS
Product TEL3GCCN-10- Single Supply, Single Hole - Continuous Discharge Up to 10 Seconds
TEL5GCCN-10 - Thermal Mixing, Single Hole - Continuous Discharge Up to 10 Seconds
TL3GCCN-60 - Single Supply, Single Hole - Continuous Discharge Up to 60 Seconds
TEL5GCCN-60 - Thermal Mixing, Single Hole - Continuous Discharge Up to 60 Seconds
Optional Parts: TN71V100R - 4" cc Cover Plate; 71244T8CC - 8" cc Cover Plate
Power supply Hydro-Power Charge. 10 year based on 2,000 cycles per month
(Backup battery: 4 years at 4,000 cycles per month w/o recharging
Hot/Cold-water supply Minimum required water pressure: 20PSI
Maximum water pressure: 125PSI
Water supply connection 1/2" I.P.
Water Consumption 10 Second Faucet: 0.17 gal. per cycle (max), 60 Second Faucet: 1.06 gal. per cycle (max)
Water saving function Automatically turns OFF after 10 or 60 seconds of continuous use
Detection time ON feature: Immediate
OFF feature: 1 second delay
Detection range Factory set from 2 1/4”. The faucet automatically sets the detection range according to
the size of the basin.
Discharge water temperature Thermal Mixing Faucet: Cold water - 104°F (Max)
control range (When used under standard conditions)
Anti-scald safety feature Provides the user protection against exposure to excessive water or outlet temperature
(Thermal mixing faucet, only) fluctuation resulting from normal variation in inlet water pressure.
Warranty Limited three (3) year warranty on all component parts. Details available upon request.
Listings NSF, IAPMO

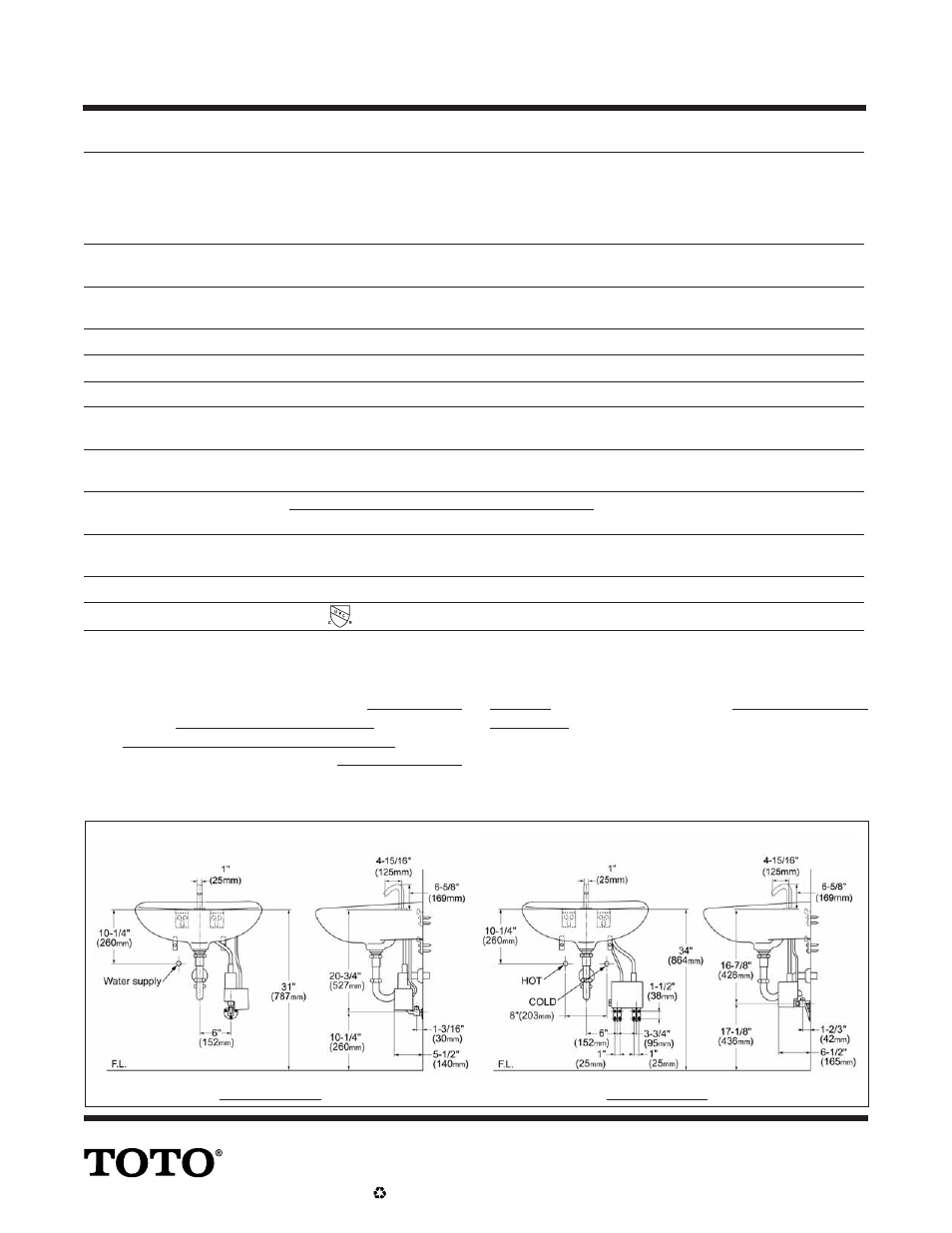

DIAGRAM:
Single Supply Thermal Mixing
TOTO Model #______________ Automatic infrared sensor
activated faucet. Anti-scald, thermal mixing chamber (
thermal faucets
only ). Automatic sensor adjustment on installation. Maximum
discharge 0.17 gallons per 10 second cycle. Electrical components
separated from spout assembly and sealed in waterproof
compartments. Single hole faucet with optional 4" cc cover plate.
Through the use of TOTO’s EcoPower system, using the faucet
11 times a day for 5 seconds or more will fully recharge the faucet.
SUGGESTED ENGINEERING SPECIFICATION:
U.S. Patent No. 4742583, 5758688, 6076550 U.S. Patent Pending No. PCT/JP01/04079, PCT/JP01/04068, 2002-269745, 2002-269746, 2002-264784
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 06/06 #
Printed on recycled paper
REV 9/05
Dimensions: Inch
