Bath waste drains

BATH WASTE
DRAINS
■ Toe-Operated Drain
■ 17 Gauge Brass (RP693 Series)
■ 20 Gauge Brass (RP293)
■ Polypropylene (RP393)
■ 13 1/2" (343 mm) Maximum
Vertical Adjustment
■ 7 3/4" (197 mm) Maximum
Horizontal Adjustment
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
•
Plated brass overflow plate.
•
Drain mechanism shall be a toe operated device.
•
All materials in drain line and built-in portion
of fitting shall be resistant to corrosion.
•
Brass construction (RP293 and RP693 series) or
polypropylene construction (RP393).
•
Slip joints provided in the drain and
overflow lines.
•
Leakage past stopper when closed shall
not exceed one (1) U.S. gallon per hour at
a pressure of six-inch water column.
•
All moveable parts must be capable of
being repaired by being removable from
the drain body.
•
All exposed external surfaces must be
corrosion resistant.

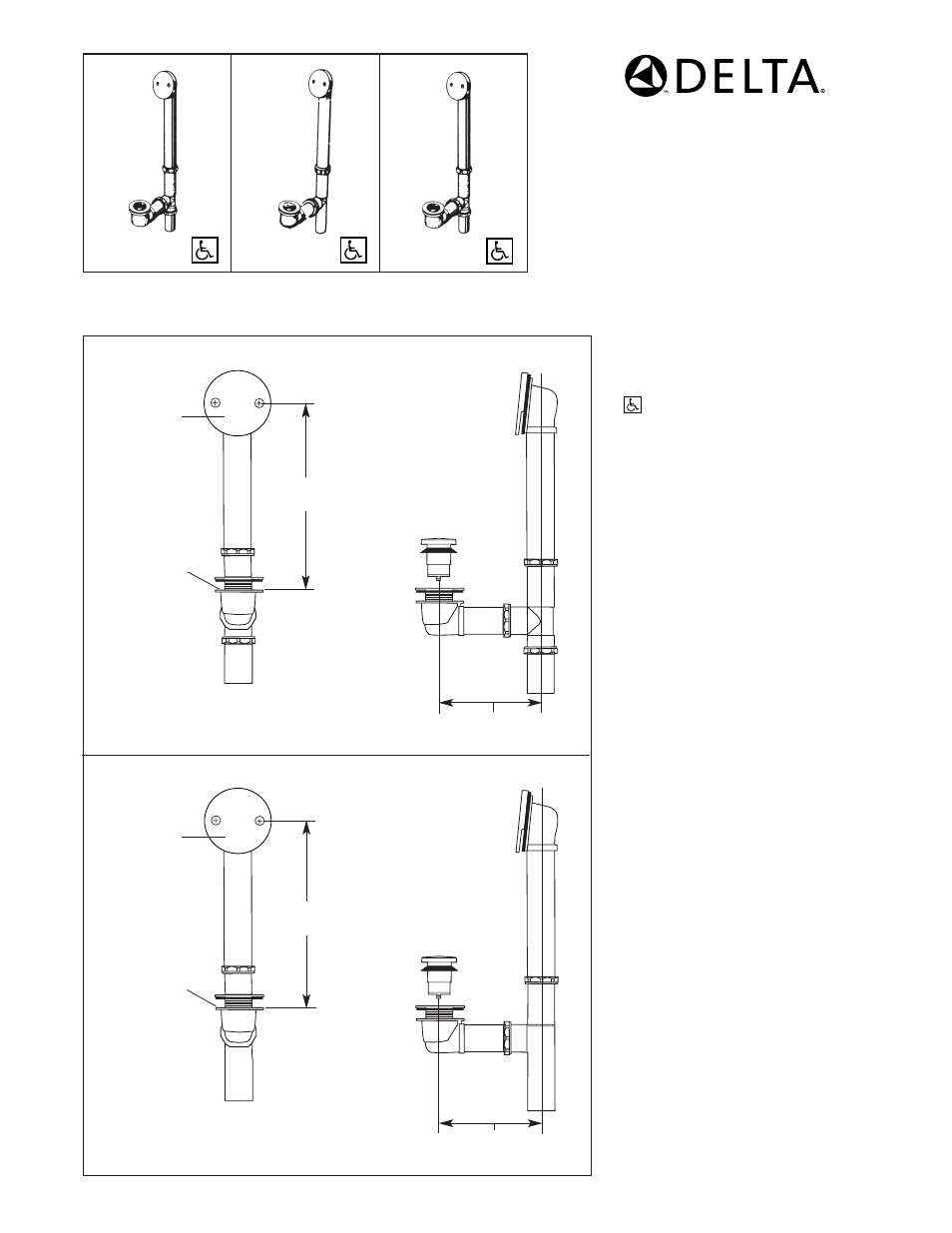

RP293
RP693
RP393
11"–13 1/2"
(279 mm–343 mm)
Vertical Adjustment
6"–7 3/4"
(152 mm–197 mm)
Horizontal Adjustment
2 3/8" (60 mm)
Min. Hole Size for
Overflow Plate
1 5/8" (41 mm)
Min. Hole Size for
Drain Hole
10 1/2"–13"
(267 mm–330 mm)
Vertical Adjustment
6"–7 3/4"
(152 mm–197 mm)
Horizontal Adjustment
2 3/8" (60 mm)
Min. Hole Size for
Overflow Plate
1 5/8" (41 mm)
Min. Hole Size for
Drain Hole
COMPLIES WITH:
Indicates ADA compliance to
CABO/ANSI A117.1-1992
•
ASTM F409 (RP393)
RP293/RP693
RP393
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only.
