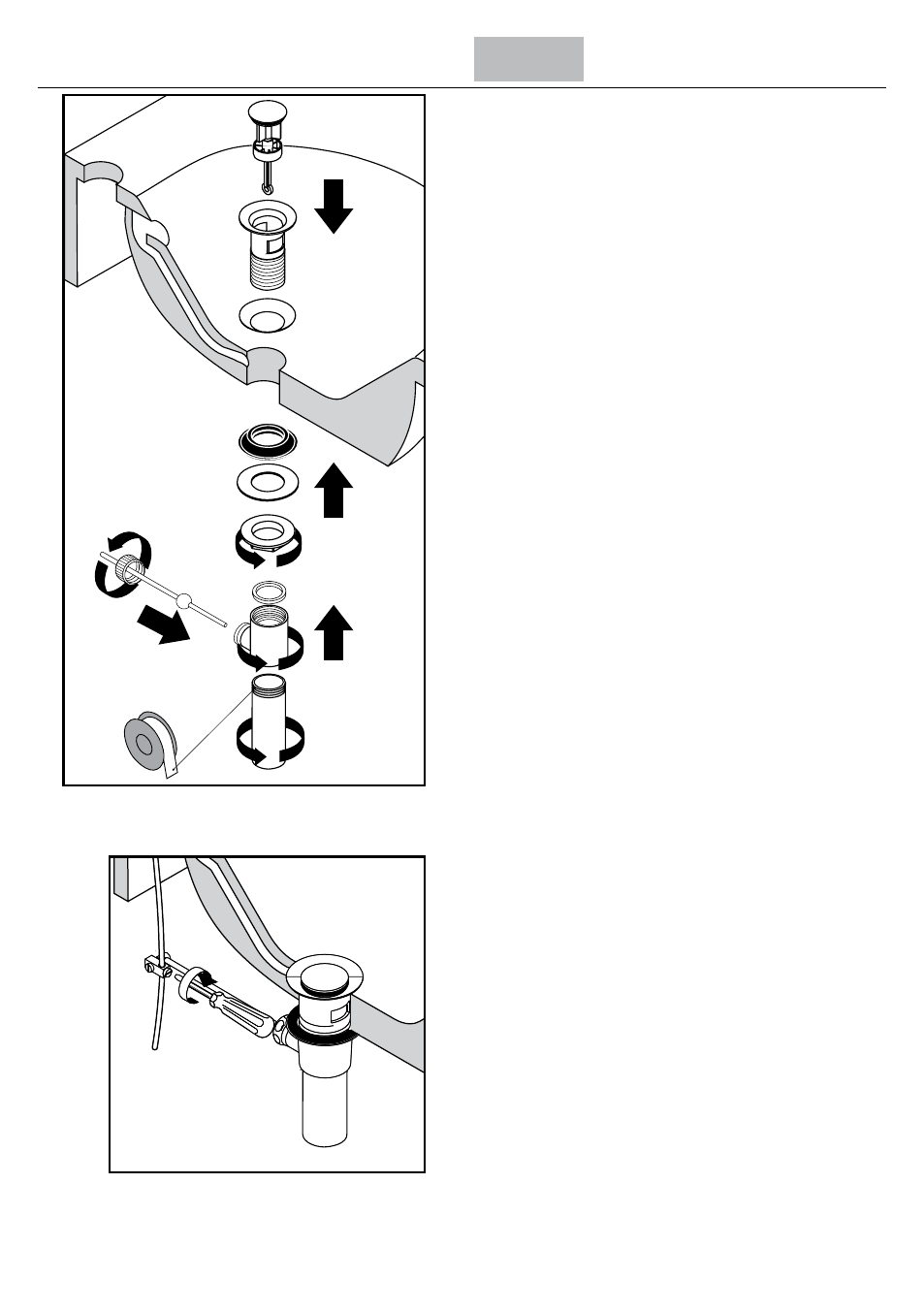

Install the pop-up drain
Remove the plunger assembly.
Unscrew the drain outlet flange from the tee.
Unscrew the tailpiece from the tee. Wrap the threads
with Teflon tape and replace.
Install the white, flexible sealing gasket to the flange.
Place it in the sink outlet.
Install the black mack gasket, white friction ring and
retainer nut on the flange.
Do not tighten the nut against the bottom of the sink
at this time.
Thread the tee and tailpiece to the flange. The pivot
must face the faucet. Turn the drain assembly if neces-
sary.
Tighten the retainer nut.
Place the plunger assembly in the drain.
Install the horizontal rod so that the end goes through
the loop in the bottom of the plunger.
Install and hand tighten the pivot ball nut.
Attach the swivel connector to the end of the horizon-
tal rod.
Attach the swivel connector to the end of the pull
rod. Position as desired and tighten with a small, flat
bladed screwdriver.
