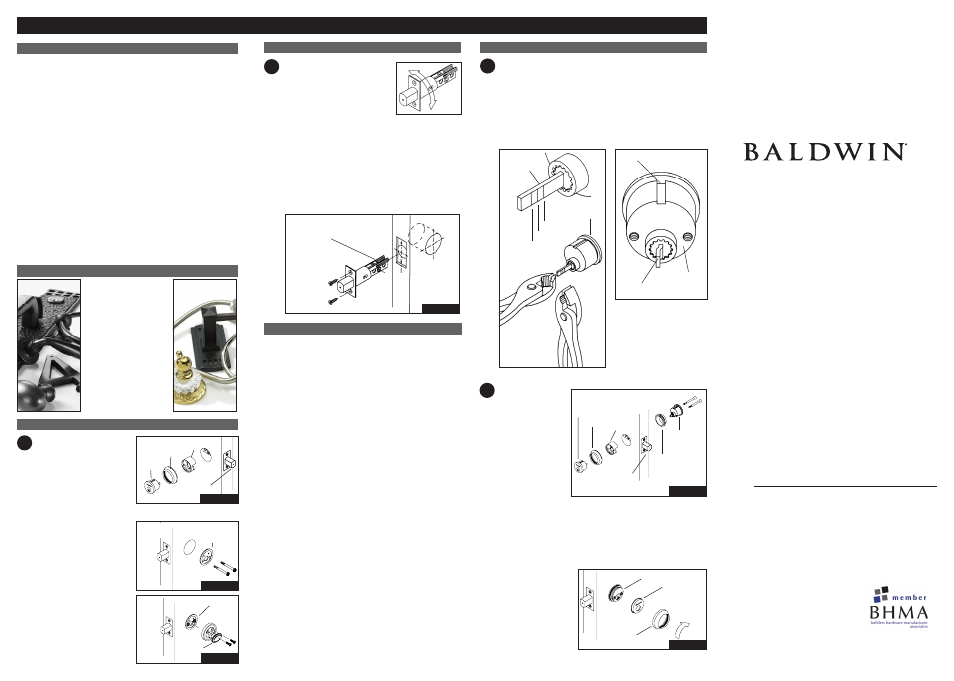

1-5/8” Deadbolt Preparation

PK-1092-T (1/09)

1-5/8” Collar

Auxiliary Deadbolt

Installation Instructions

©2009 Baldwin Hardware Corporation

Reading, PA 19611

B. Place turnpiece mounting

plate on inside of door as shown.

Attach cylinder using two #10-

32 x 1-7/8” pan head machine

screws. Insert screws through

mounting plate, deadbolt, screw

guide and collar into the cylinder.

Tighten all screws (Fig. 2).

Installing Deadbolt

1

Single Cylinder Assembly

2

Double Cylinder Assembly

1

1

A. Extend deadbolt using

flathead screwdriver. Keeping

tailpiece vertical, insert cylinder

through collar and screw guide

into deadbolt. The arrow on

the screw guide must be on the

outside and pointing up. Hold in

place. Do not insert key during

this procedure (Fig. 1).

B. Insert deadbolt. Install with two #8 x 3/4” flat head combi-
nation screws provided (see diagram for proper positioning).
Ensure deadbolt head is extended throughout installation
procedure.

A. Carefully break off cylinder
tailpiece at required mark for
your door thickness.
Caution; use two pairs of pliers
as shown or tailpiece will be
damaged.

B. Align tailpiece with slot.
Keep tailpiece vertical and
curved toward right side of
the hole as illustrated.

C. Place turnpiece trim over

mounting plate. Insert tailpiece

into turn piece. Attach trim to

mounting plate with two #8-32

x 5/8” oval head machine

screws. Tighten screws

(Fig 3).

A. Extend deadbolt
using flathead
screwdriver.
Keeping tailpiece
vertical and toward
the right side of
hole, insert outside
cylinder through
collar and into the
deadbolt. Align
slot of inside cylinder with notch in threaded collar. Keeping
tailpiece vertical and curved toward the right side of hole, insert
inside cylinder with threaded collar into the deadbolt. Attach
cylinders using two #10-32 x 2-1/4” flat head machine screws.
Tighten screws. Do not insert key during this procedure. (Fig.4)

B

.

Align cylinder cover

over inside cylinder.
Screw on decorative
cylinder collar.
Congratulations! Your
installation is now
complete!

Tailpiece

1-3/4”

2-1/4”

2”

Tailpiece

INSIDE

INSIDE

Cylinder collar

Cylinder

cover

Inside Cylinder

INSIDE

Mounting Plate

Turnpiece

Trim

Fig. 3

Install deadbolt with both long slots
on latch body in upper position.

Cylinder

Cylinder

Slot

Remember Baldwin

With the completion of

your project, remember that

Baldwin quality hardware

products are available for

all your decorating and

remodeling needs. Matching

knob and leversets for

interior doors, beautiful bath

accessories, and a complete

selection of cabinet and door

enhancing hardware are all

available from your Baldwin

retailer.

With your purchase of The Images Collection solid brass deadbolt, you’re

among a group of discerning individuals who know the intrinsic value of

selecting the finest – Baldwin.
Images entrance locksets, interior latchsets, and deadbolts coordinate beautifully,

enabling you to carry a specific design theme throughout your home.
Our step-by-step installation instructions will help guide you through your

project quickly and easily.
Before you begin your installation, read and understand the installation

instructions and marking templates. If you have any questions, please do not

hesitate to contact our Baldwin Technical Services Department at

1-800-566-1986. We’re here to help!

NOTE: Failure to use all recommended components will void Grade 1 rating.

We thank you for your Baldwin purchase and wish you the fullest

enjoyment of your Baldwin Handleset.

Technical Services Support

1-800-566-1986

Hours: 8 a.m. to 8 p.m. E.S.T. – Monday - Friday

10 a.m. to 6 p.m. E.S. T. – Saturday

Mounting

Plate

INSIDE

Fig. 2

Congratulations!

A. The deadbolt supplied with this
unit has an adjustable backset
feature. It will be set at 2-3/8”
backset. To adjust to 2-3/4” backset,
grasp body and twist faceplate/
bolthead assembly 180° until it stops. Unit is now ready
for installation in a 2-3/4” backset configuration.

Fig. 4

Outside Cylinder

Inside

Cylinder

Threaded

Collar

Extended

deadbolt

Collar

OUTSIDE

TEAR HERE FOR ENGLISH.

TEAR HERE FOR ENGLISH.

Screw
Guide

Collar

Cylinder

Extended

Deadbolt

OUTSIDE

Fig. 1

Screw

Guide

Limited Lifetime Mechanical Warranty – Baldwin warrants

that each Baldwin product shall be free from mechanical defects at

the time of delivery and for the lifetime of the product or as long as

you own your home.

Limited Lifetime Finish

Warranty – The Baldwin Lifetime

Finish

uses advanced finishing technology (physical vapor

deposition) to create a finish highly resistant to the effects of

weather and normal wear and tear. The Limited Lifetime Finish

Warranty on Lifetime Finish

products covers the original

purchaser for as long as you own your home.

Limited Finish Warranty – The finish on Baldwin products

(excluding Lifetime Finish and living finish products) is protected by

a durable topcoat designed to maintain the beauty and quality of the

Baldwin product. The Baldwin Limited Finish Warranty covers the

original purchaser for five years from date of purchase for interior

use and one year for exterior use.

Living Finishes – Due to the nature of Baldwin living finish

products, they will wear over time and may already have begun the

process before reaching your home. No finish warranty is offered

on living finish products, which are designed to age and improve

over time. Living finishes include raw brass, oil rubbed bronze,

stainless steel, and other non-lacquered or non-PVD finishes.

Refer to www.baldwinhardware.com for a complete warranty

statement.
