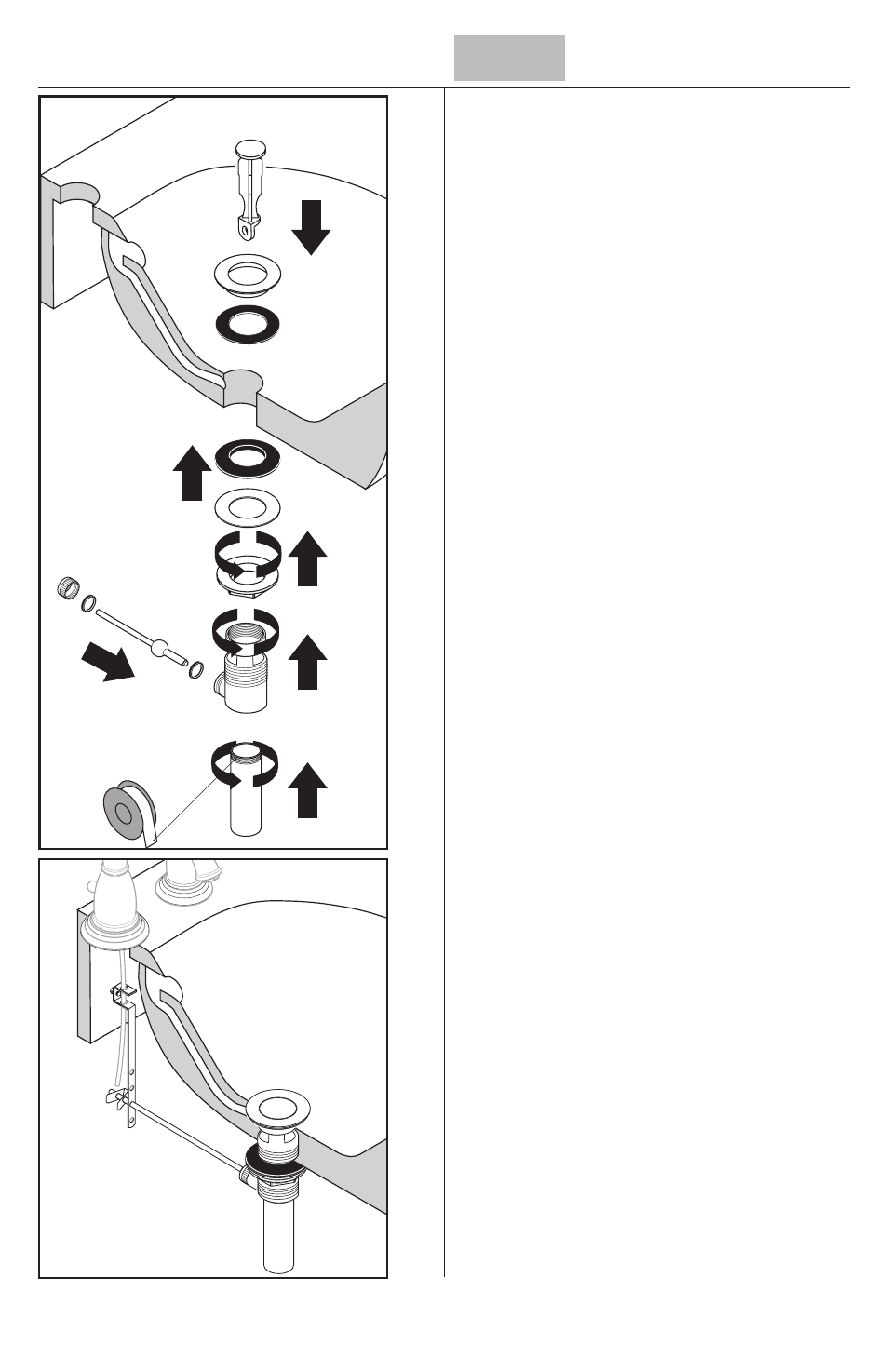

Install the pop-up drain
Remove the plunger.
Unscrew the drain outlet flange from the tee.
Unscrew the tailpiece from the tee.
Wrap the threads with Teflon tape. Install the
tailpiece on the tee.
Install the sealing gasket on the flange.
Rest the flange in the sink outlet.
Install the mack gasket, friction ring, retainer nut,
tee, and tailpiece on the flange.
Tighten the retainer nut.
Place the plunger in the drain.
Install the two pivot ball seals on the ball rod.
Install the ball rod on the tee. The end of the rod
must go through the loop in the bottom of the
plunger.
Tighten the pivot ball nut.
Slide the link over end of pull rod. Tighten the
screw.
Test the drain. Reposition the link on the ball rod
if necessary.
When satisfied, install the spring clip on the
ball rod.
