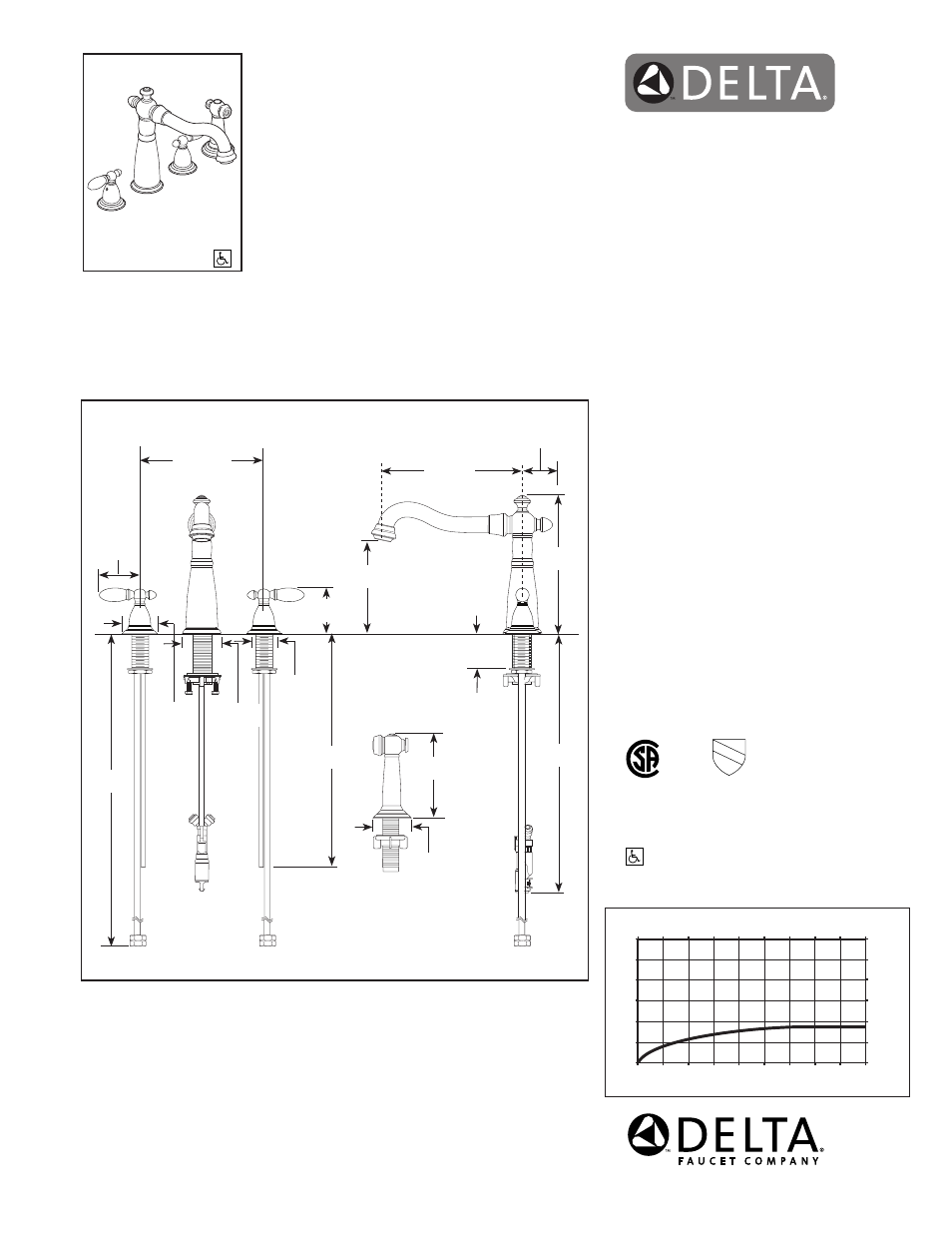

Factory Direct Hardware Delta 2256-DST Victorian - Manual

COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
KITCHEN
FAUCETS
■ Victorian ® Series
■ Two Handle Widespread Deck Mount
■ 3 or 4 Hole Sink Applications
■ Quick Snap ® Hose Installation
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
• 3/8" O.D. straight, staggered pex supply
tubes - 33 1/4" (845 mm) long.
• 9" (229 mm) long, 9" (229 mm) high
spout swings 180°.
• 1/4" turn stops.
• Control mechanism is a diamond coated
ceramic cartridge.
• Hose length (veggie spray) 45" (1143 mm).
• Maximum flow rate of 1.8 gpm @ 60 PSI.
• Maximum mounting deck thickness of 2 1/2".
2256-▲-DST
DSP-K-2256-DST Rev. B
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See current
full-line price book or www.specselect.com for finish options and product availability.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2012 Masco Corporation of Indiana
WARRANTy
• Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
®
®
U P
C
9"
(229 mm)
16 1/2"
(419 mm)
6"
(152 mm)
2 1/2"
(64 mm)
33"
(838 mm)
15 13/64"
(386 mm)
8" - 16"
(203 mm -
406 mm)
Centers
9"
(229 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
Min. 2 1/2" (64 mm)
Clearance to Back Splash
2 1/4 "
(57 mm)
Min.
4x 1 3/8"
(35 mm)
Dia. Hole
Size
2 1/2 "
(64 mm)
3"
(76 mm)
5 1/2"
(140 mm)
2 5/8"
(67 mm)
▲ Designate proper finish suffix
