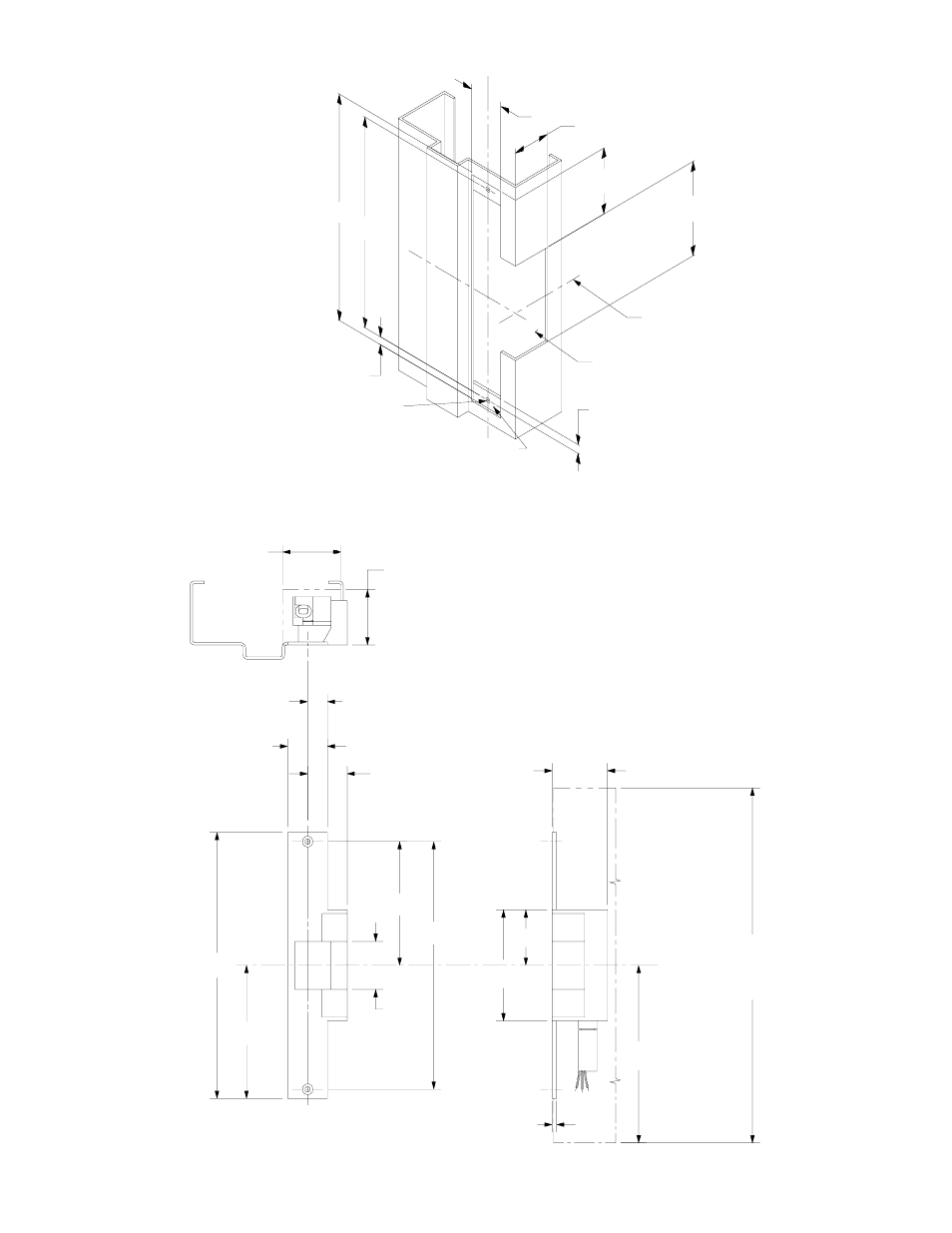

Strike Dimensions and Required Clearances
Frame Preparation for Strike
931233_00(5)
Strike
backbox
assembly
2” minimum
clearance
C lock and strike
L
C strike
and
latch bolt
L
6”
1-7/8”
1-3/8”
3-3/4”
2”
4-3/16”
8-3/8”
1-5/8”
1-3/8”
9”
11/16”
5/32”
4-1/2”
12”
minimum
clearance
1-3/8”
C strike and
latch bolt
L
C lock and strike
L
2-5/8”
3-3/4”
9”
2”
#16 drill and #12-24 tap
2 places
5/16”
8-3/8”
Suggested
cutout
11/32” maximum
Reinforce for strike
attachment as required
LHR shown
RHR opposite
1-7/8” minimum
clearance
