Axor Wall Outlet

Starck 27451XX1

Steel 35884801

Replacement Parts

1

support element

98557000

2

elbow

88539000

3

cover -- Starck

97549XX0

XX = color
00 = chrome
82 = brushed nickel

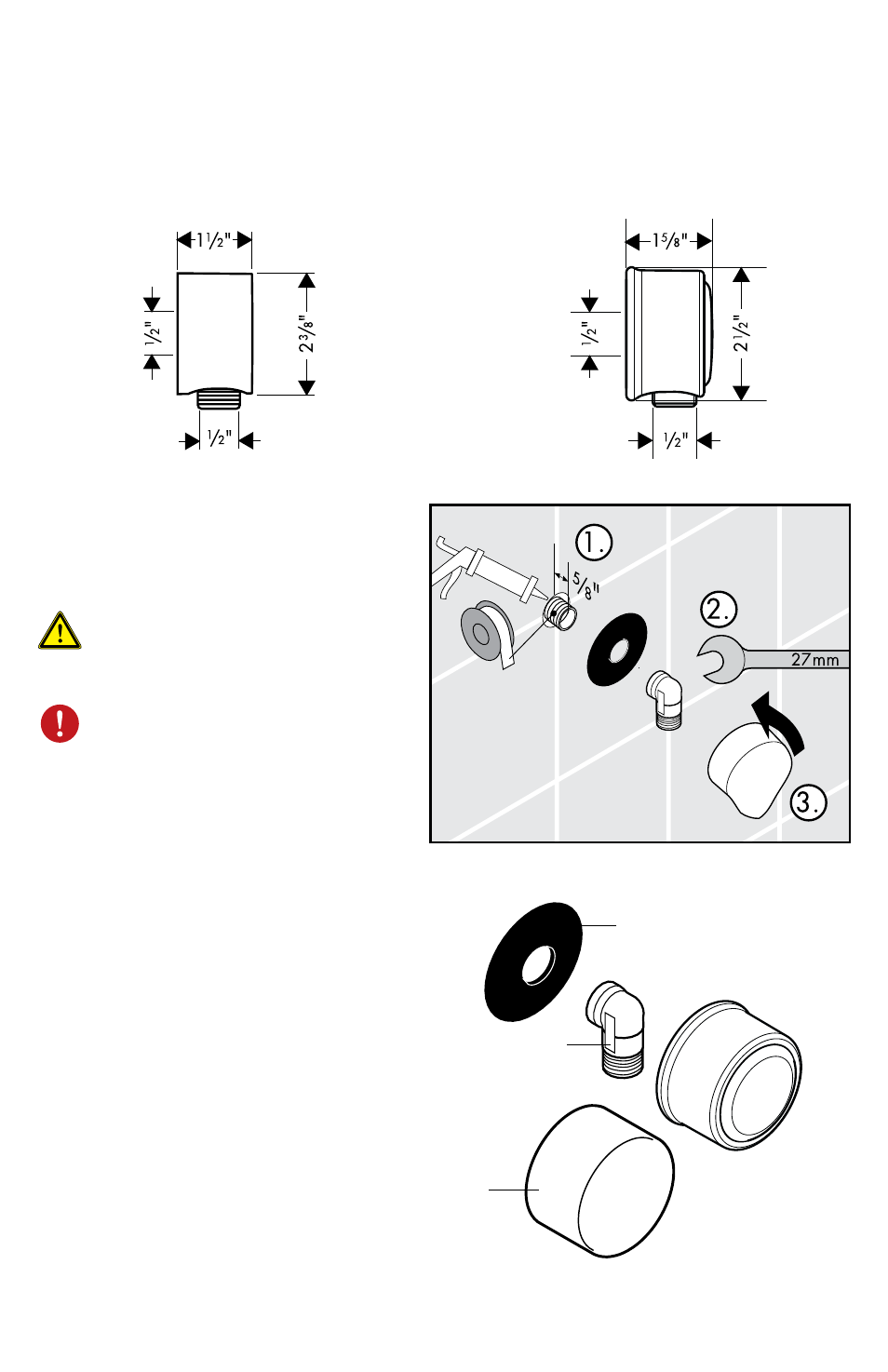

Installation

Install a ½" male threaded nipple, extending
⅝" outside the surface of the finished wall.

Seal the wall around the

nipple with waterproof

sealant.
Failure to seal the wall

can lead to possible

water damage.

Wrap the threads on the nipple with Teflon
tape (1).

Push the support element over the nipple.
Install the elbow (2).

Snap the cover into place over the nipple
and support element (3).

Montreux 16884XX1

1

2

3
