Page 4
Installation

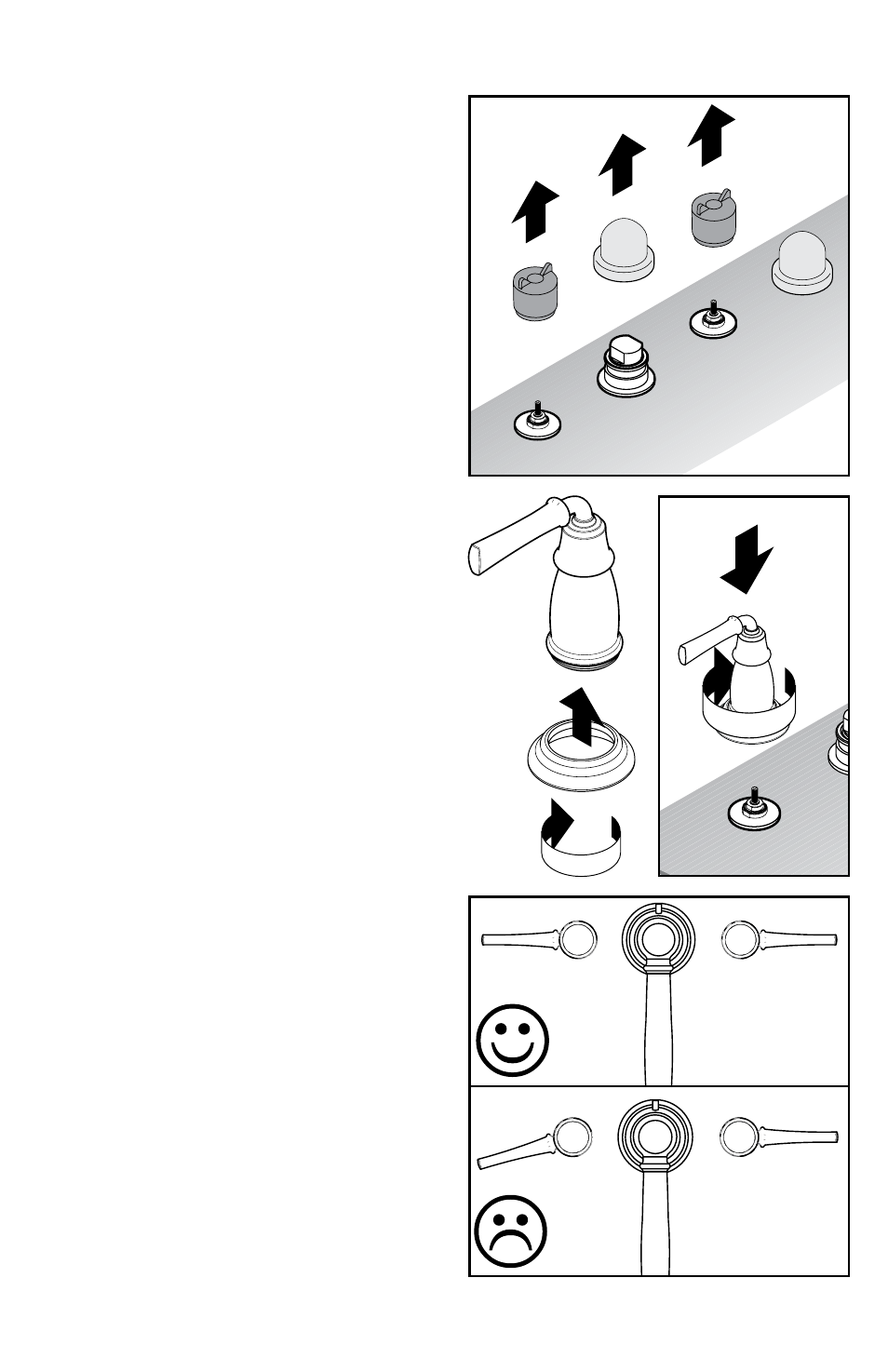

Remove the plaster shields from the valves.
Tango C only: Install the deco rings on the
handles.
Position the handle over the valve stem with the
lever in the desired “off” position.
Hold the lever in place with one hand. Use your
other hand to rotate the “bell” to secure it to the
valve.
Check the alignment of the handles.
