4

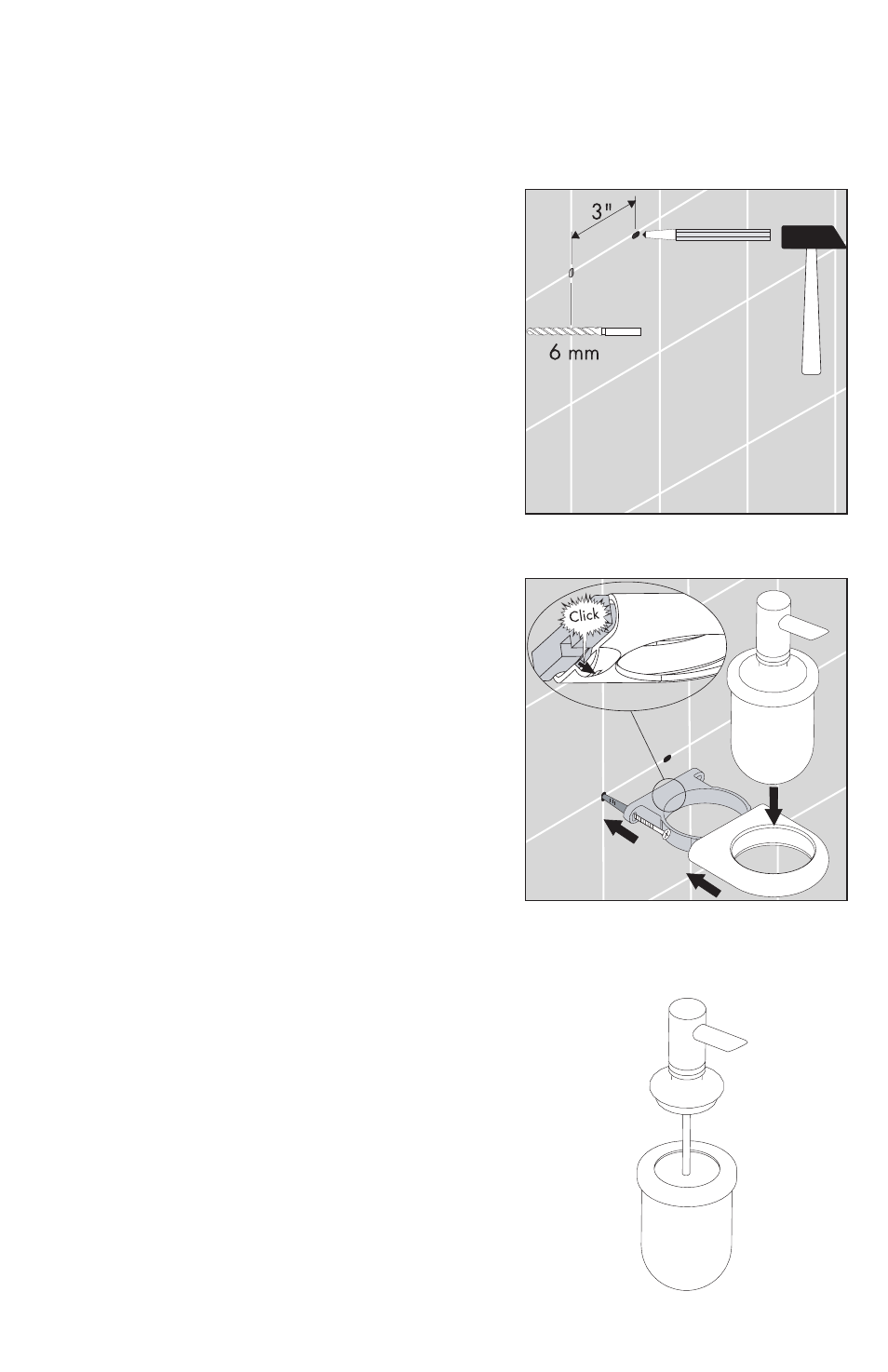

Mark the positions of the screw holes on the wall.
Make sure that they are level.
Drill the screw holes using a 6 mm drill bit
suitable for the wall surface.
Install the anchors. Seal around the anchors with
a good quality waterproof bathroom sealant.
Refilling the soap dispenser
Lift the pump assembly off the bottle. Refill the
bottle. Replace the pump assembly.
Installation Instructions: 06593XX0 soap dispenser, 06589XX0 tumbler, 0659XX0
soap dish, 06600XX0 toilet brush
Interaktiv Accessories
Screw the holder mounting bracket into the
anchors. The detent pin on the mounting bracket
should be on the bottom.
Slide the holder cover over the mounting bracket
so that the detent pin on the mounting bracket
clicks into place in the corresponding hole in the
cover.
Place the accessory (soap dish/soap dispenser/
tumbler/toilet brush cup) into the holder.
The accessory may be removed from the holder
for cleaning.
