7

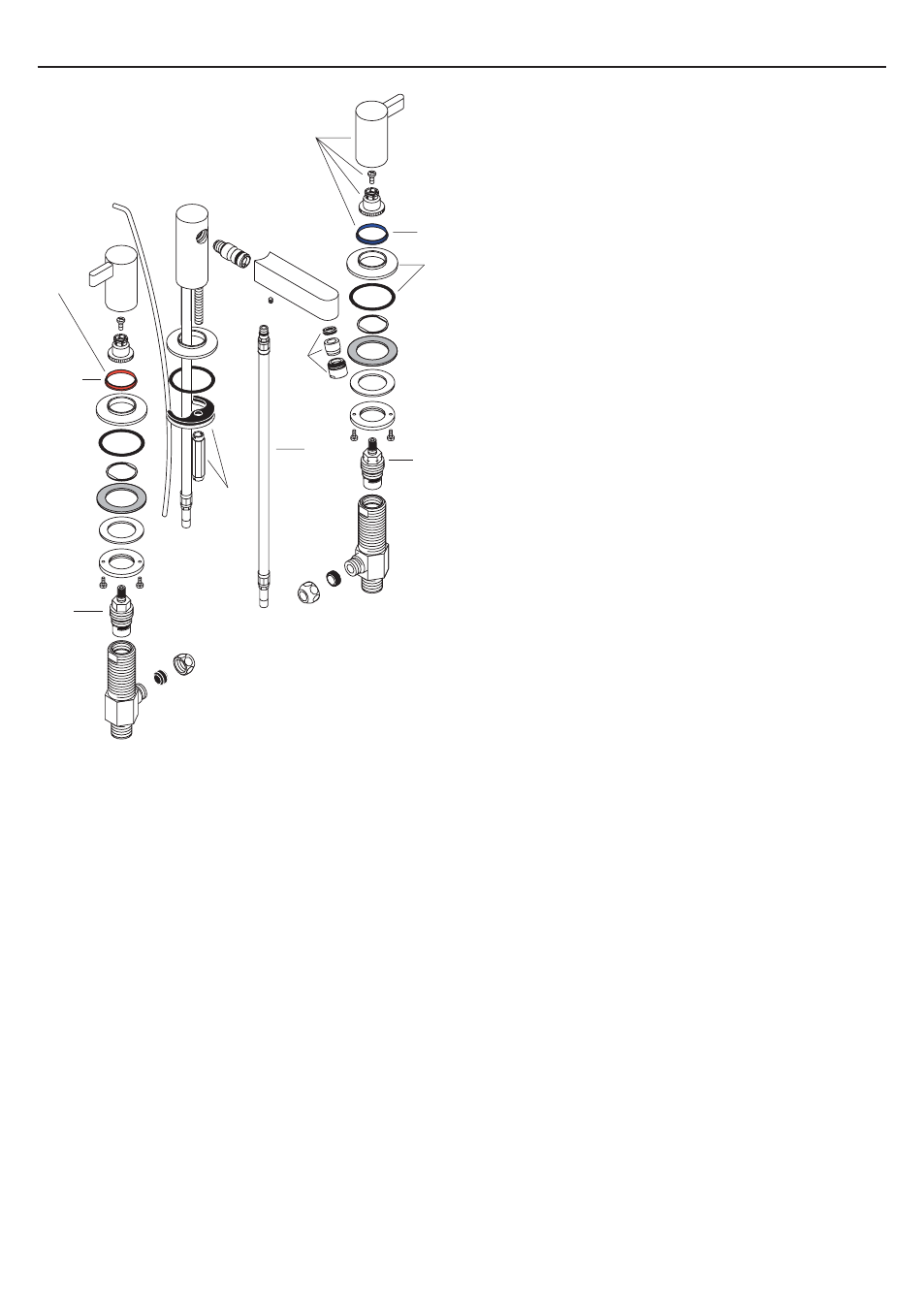

Spare parts
1 Aerator cpl. 96683800
2 Handle cold / hot water 35293800
3 Color-ring cold / hot water 97127000
4 Escutcheon 97128800
5 Tube 94071000
6 Stop unit for cold water 96765000
7 Fixation cpl. 96016000
8 Lift rod 96657800
9 Stop unit for warm water 96766000
9
6
5
1
2
3
3
2
4
7
Assembly
1. Flush pipe lines thoroughly.
2. Mount spout and valves onto lavatory. The
hot water supply (red point on valve) should
be connected to the LHS and the cold on
the RHS.
3. Screw pop-up rod onto the pop-up rod
extending from faucet.
4. Starck/Allegroh:
Attach compression "Y" onto bottom of
spout fitting. Screw in stainless steel flex
hose connectors into "Y" and onto side
outlet of hot and cold valves.
Carlton/Phoenix/Terrano/Steel:
Connect flex hose with valves.
5. Attach handle trim and connect pop-up
assembly.
6. Turn on supply stops and check function of
faucet.
7. Check all connections for leakage.
Major pressure differences between
cold and hot water in supply should be
avoided and balanced.
