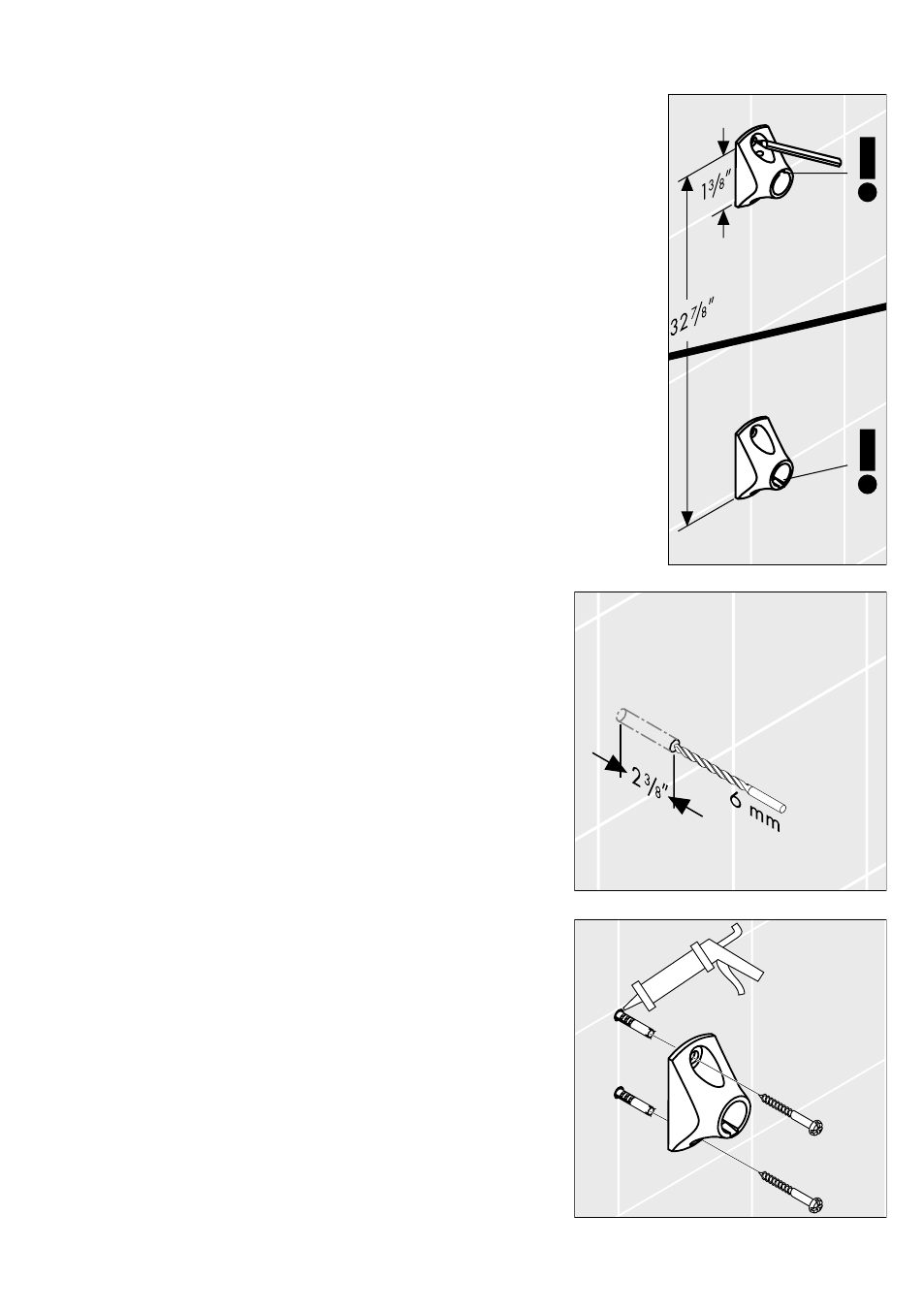

Wallbar Installation
Mark the positions of the screw holes, using the mounting brackets
as templates. The notch on the mounting bracket should be on
the top for the top mounting bracket, on the bottom for the bottom
mounting bracket.
Drill the holes with a 6 mm bit suitable for the wall surface.
Install the anchors. Seal the wall around the anchors with
waterproof bathroom sealant.
Install the mounting brackets with the screws.
