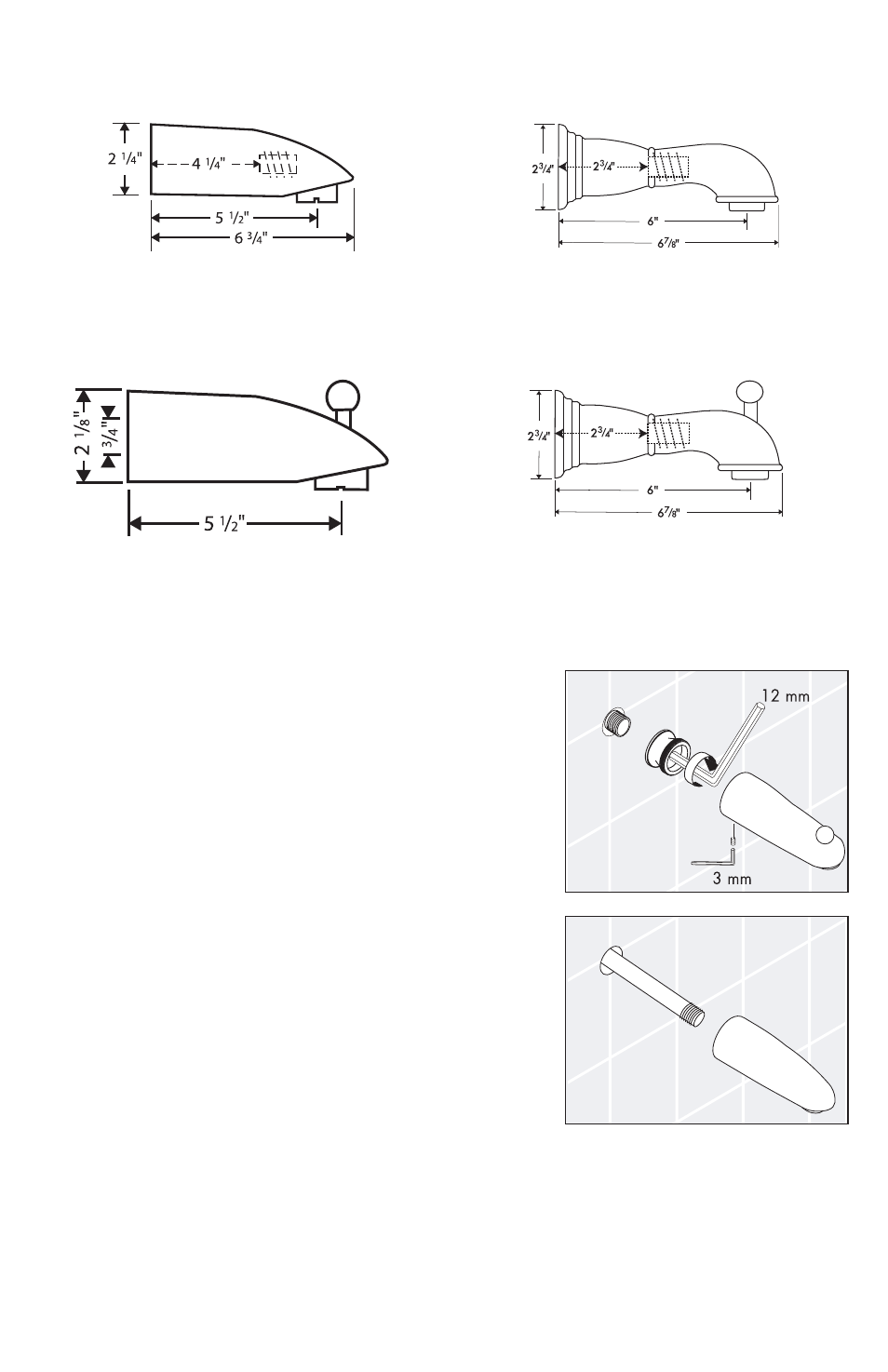

2

Interaktiv Tub Spouts

Retroaktiv Tub Spouts

13412XX1

06959XX1

06888XX0

06089XX0

Installation: All other models

Wrap the threads on the nipple with Teflon tape. Seal the

wall around the nipple with waterproof sealant.

Screw the spout onto the nipple, taking care not to cross

thread. If a final turn by wrench is desired, use a strap

wrench.

Turn on the water, flush, and check for leaks.

Requires 1/2” male threaded nipple extending

5/8” outside surface of finished wall.

Requires 1/2” male threaded nipple extending

3” - 3 1/4” outside surface of finished wall.

Requires 1/2” male threaded nipple extending

3” - 3 1/4” outside surface of finished wall.

Requires 1/2” male threaded nipple extending

4 1/2” - 4 3/4” outside the surface of the

finished wall.

User Instructions - Diverter Tub Spouts

When the water is turned on, it will flow through the spout. To divert the water to the shower-

head, push the diverter knob downward. When the water is turned off, the diverter will reset to

the spout position.

Installation: 06959XX1 only

Wrap the threads on the nipple with Teflon tape. Seal the

wall around the nipple with waterproof sealant.

Screw the mounting piece to the nipple. A 12mm Allen

wrench (not included) is useful. Slide the spout over the

mounting piece. Tighten the set screw with a 3 mm Allen

wrench.
