A. B.

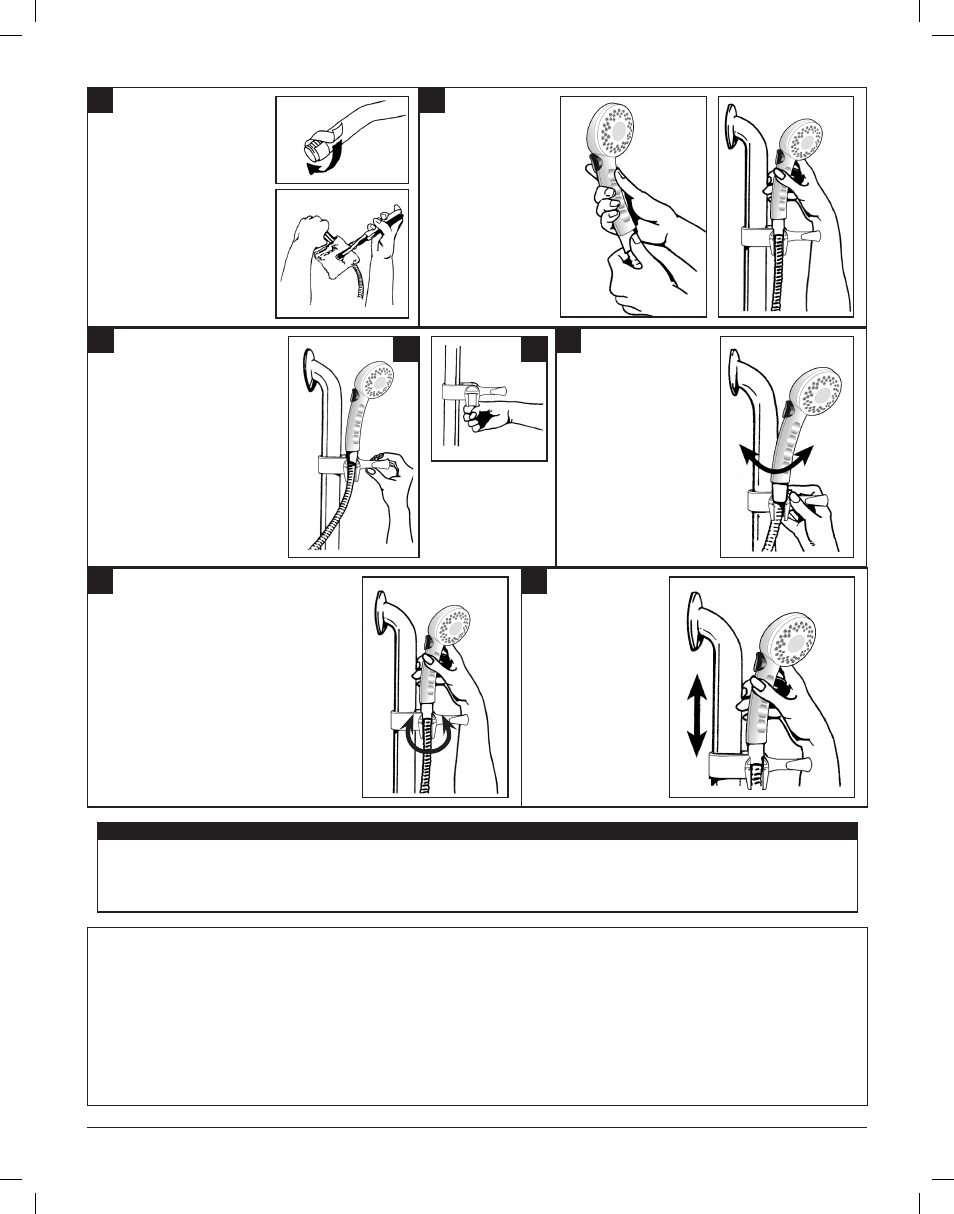

Wrap the shower arm
threads with plumber
tape before installing into
plumbing fitting. Hand
tighten hose end to shower
arm (or water supply)
by turning clockwise.
Then fully tighten with
an adjustable wrench or
pliers. Use a soft cloth
between the jaws of the
tool and hose connector to
protect the finish.
Carefully tighten
other end of
hose to the hand
shower. Place
the hose from
the hand shower
into the holder (or
bracket) section of
the arm mount and
slip down. Do not
force. The hose
takes a “natural
drape” after warm
water has been
run through it.
The arm mount unit (for the
hand shower) of the Wall
Slide Bar can be adjusted
(7A) by pushing up or down
on the extended Paddle to
move the unit up or down (on
vertical or angled Slide Bar
installations) and left or right
(on horizontal installation).
After positioning as desired,
flip the Paddle into the
straight (locked in) position.
In addition, (7B) the arm
mount can be adjusted by
lightly tapping on the base of
the arm mount unit.
The arm mount unit
also can be twisted
clockwise or counter-
clockwise for desired
positioning for the
hand shower.
Additional adjustments of the arm mount unit
is available with the holder section of the
arm mount unit. This holder can be turned
clockwise or counter-clockwise for desired
mounting of the hand shower.
Do not force the
handle in or out of
the arm mount unit.
The hand shower
is easily removed
from the arm mount
by lifting the handle
upward.
Note: This “water saver” shower is designed
to limit water usage to 2.5 gallons per minute
maximum. A flow control disc is pre-installed in
the end of the handle where the handle attaches
to the hose. The hand shower also contains
dual check valves for back-flow protection.
Cleaning Instructions
To clean the hand shower face plate: Remove the shower handle from
the hose. Soak the hand shower in a 50/50 solution of white vinegar
and water for 30 minutes to dissolve mineral buildup. Reassemble; do
not overtighten the handle to the hose. Turn on the shower to wash the
impurities out of the hand shower.
To clean the Wall Slide Bar or Arm Mount Unit: Wipe with soft, damp
cloth - do not use detergent or cleansers that may be harmful to the finish.
5.
7.
9. 10.
8.
6.
All parts and finishes of the Delta ® faucet are warranted to the original consumer purchaser to be
free from defects in material & workmanship for as long as the original consumer purchaser owns
their home. Delta Faucet Company recommends using a professional plumber for all installation
& repair.
Delta
will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves
defective in material and/or workmanship under normal installation, use & service. Replacement
parts may be obtained by calling 1-800-345-DELTA (in the U.S. and Canada) or by writing to:
In the United States:
In Canada:
Delta Faucet Company Masco Canada Limited, Plumbing Group
Product Service 350 South Edgeware Road,
55 E. 111th Street St. Thomas, Ontario, Canada N5P 4L1
Indianapolis, IN 46280
This warranty is extensive in that it covers replacement of all defective parts and even finish, but
these are the only two things that are covered. LABOR CHARGES AND/OR DAMAGE INCURRED
IN INSTALLATION, REPAIR, OR REPLACEMENT AS WELL AS ANY OTHER KIND OF LOSS OR
DAMAGES ARE EXCLUDED. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available to Delta for all warranty claims. THIS IS THE EXCLUSIVE
WARRANTY BY DELTA FAUCET COMPANY, WHICH DOES NOT MAKE ANY OTHER WARRANTY
OF ANY KIND, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY.
This warranty excludes all industrial, commercial & business usage, whose purchasers are
hereby extended a five year limited warranty from the date of purchase, with all other terms of this
warranty applying except the duration of the warranty. This warranty is applicable to Delta ® faucets
manufactured after January 1, 1995.
Some states/provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Any damage to this faucet as
a result of misuse, abuse, or neglect, or any use of other than genuine Delta ® replacement parts
WILL VOID THE WARRANTY.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state/province to state/province. It applies only for Delta ® faucets installed in the United States of
America, Canada, and Mexico.
LIFETIME FAUCET AND FINISH LIMITED WARRANTY
© 2011 Masco Corporation of Indiana
2 72638 Rev. A
