Page 6 of 24 PM6000_A
Offset Box Used for:
6210
Item No. Part No. Description Quantity Finish
1 050011 6000 DS Replacement Kit Type A
6000 Switch & Mtg. Assy. 1
6-32 x 1/4” Socket Head Cap Screw 2
Wire Strain Relief 1
1 050016 6000 DS-LC Replacement Kit Type A 1
Same parts as 050011 for DS-LC Version
2 050939 Type A or B Box Spring Kit (includes items listed below)
050941 Type C Box Spring Kit (includes items listed below)
050940 Type Offset Box Spring Kit (includes items listed below)
6-32 x 1/4” Socket Head Cap Screw 2
Tripper Spring 1
Torsion Spring 1
Strike Lip Pin 1
Strike Lip 1
3 970387 FSE Slider (Except 6211WF/6212WF/6221/6223) 1
4 970388 FS Slider (Except 6211WF/6212WF/6221/6223) 1
X in “Finish” column designates finished item; specify finish when ordering.

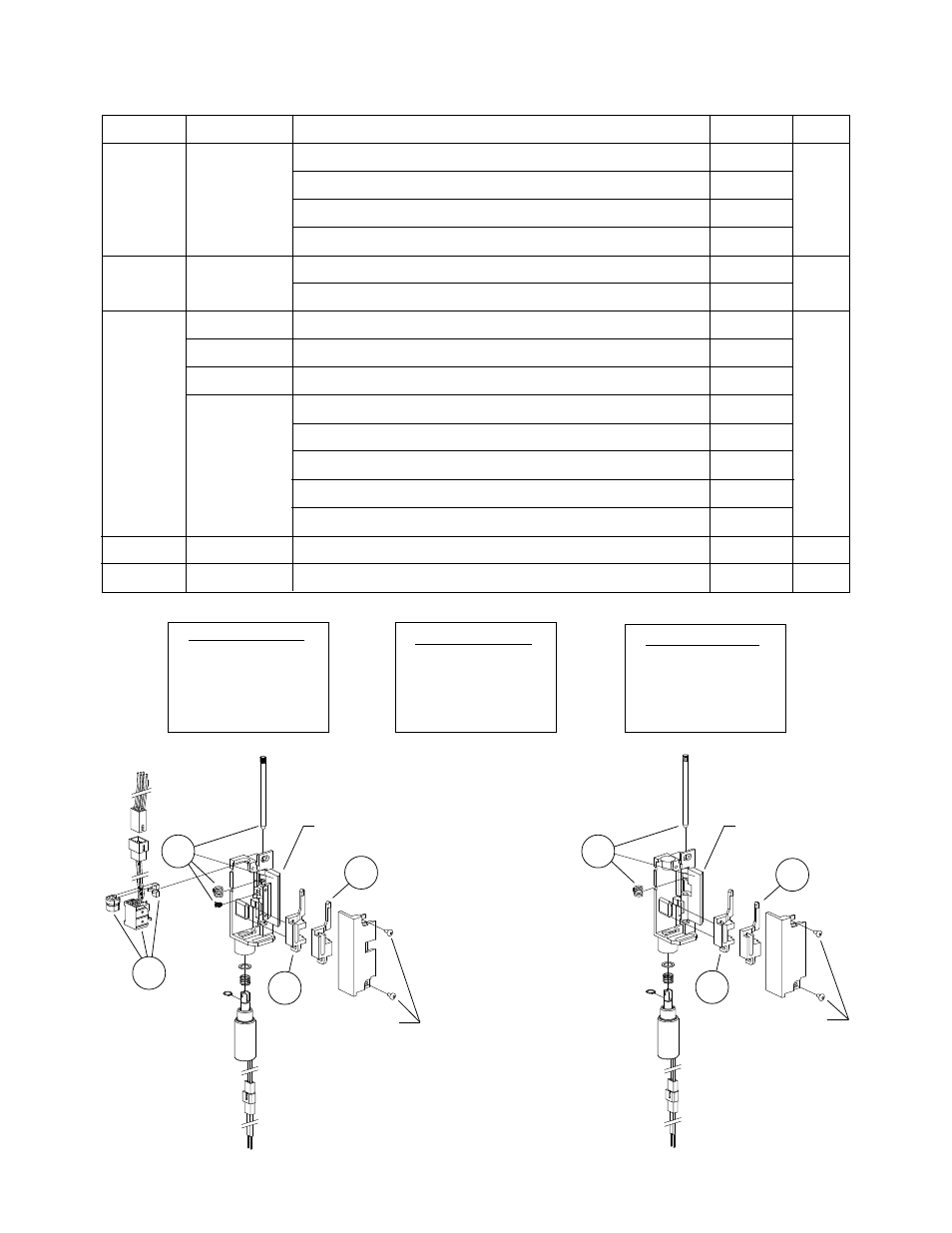

SOLENOID AND BOX PARTS: TYPE A BOX, TYPE C BOX, OFFSET BOX
Type A Box Used for:
6211 6222
6211AL 6224
6212 6224AL
6214 6225
6215 6226
Type A Box
Standard
Version
Torsion
Spring
2
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
1
Type A Box
DS and DS-LC
Versions
2
4
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
Type C Box Used for:
6111 6121
6112 6213
6113 6216
4
Strike lip design varies with
strike (see pages 11 and 13) Strike lip design varies with
strike (see pages 11 and 13)
