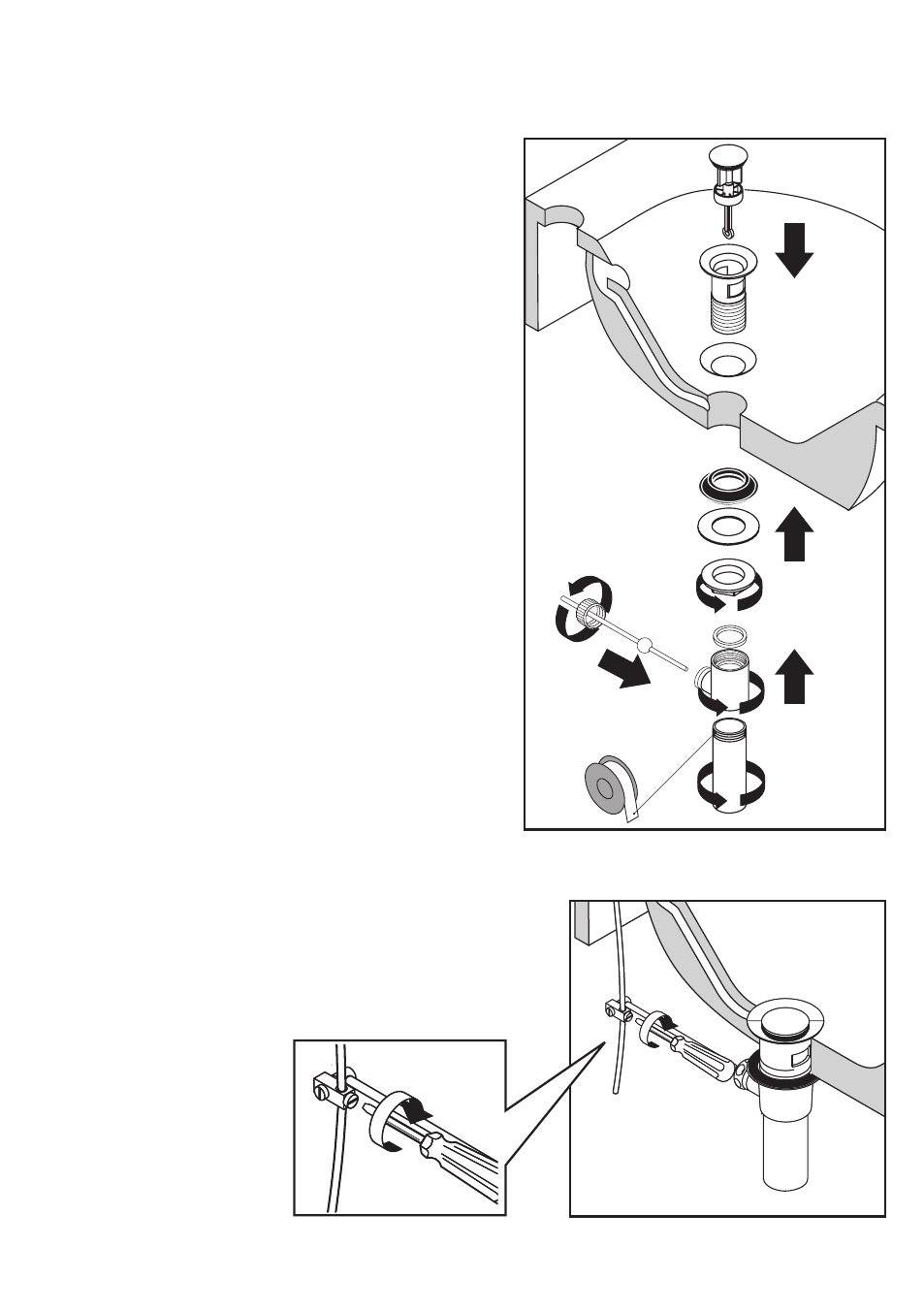

Install the pop-up drain*

Attach the swivel connector to the end of the

horizontal rod.
Attach the swivel connector to the end of the

pull rod. Position as desired and tighten with a

small, flat bladed screwdriver.

Remove the plunger assembly.
Unscrew the drain outlet flange from the tee.
Unscrew the tailpiece from the tee. Wrap the

threads with Teflon tape and replace.
Install the white, flexible sealing gasket to the

flange. Place it in the sink outlet.
Install the black mack gasket, white friction ring

and retainer nut on the flange.
Do not tighten the nut against the bottom of the

sink at this time.
Thread the tee and tailpiece to the flange. The

pivot must face the faucet. Turn the drain assem-

bly if necessary.
Tighten the retainer nut.
Place the plunger assembly in the drain.
Install the horizontal rod so that the end goes

through the loop in the bottom of the plunger.
Install and hand tighten the pivot ball nut.
