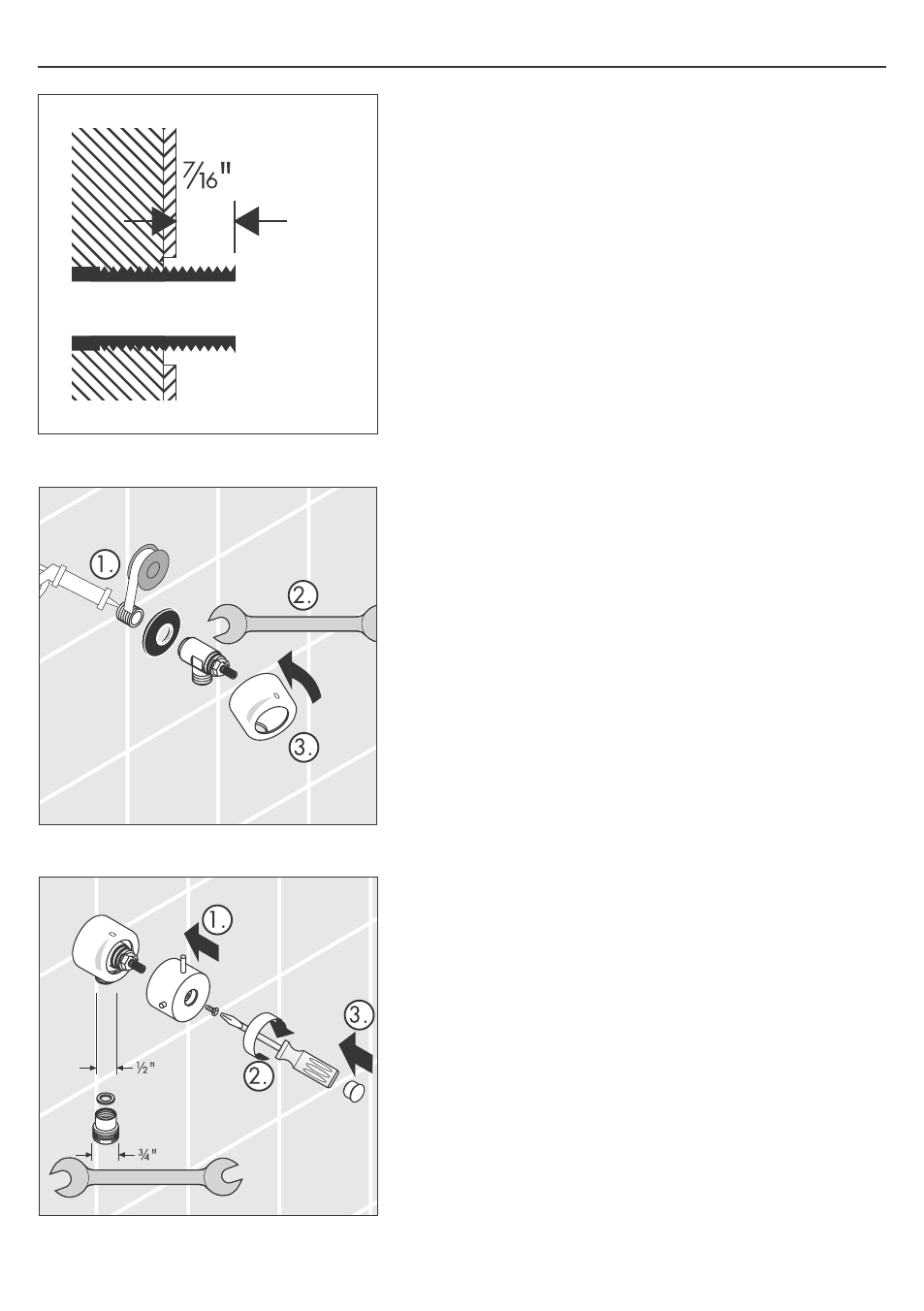

1. Seal the wall around the male pipe fitting using
a good quality waterproof bathroom sealant.
Wrap thread clockwise with 2 - 3 layers of good
quality plumber's thread tape.
2. Position the gasket over the male threaded pipe
fitting. Screw the elbow firmly onto the pipe
fitting.
Test for leaks.
3. Slide the decorative cover over the elbow and
snap into place on the gasket.
Handle assembly
10882XX1 Starck
37882XX1 / 37883XX1 Terrano
16882XX1 Montreux
1. Push the handle onto the shaft.
2. Fix the screw.
3. Cover the hole by the plastic cap.
1. This unit requires a 1/2” NPT male nipple, ex-
tending 7/16” outside the surface of the finished
wall.
