V. Top

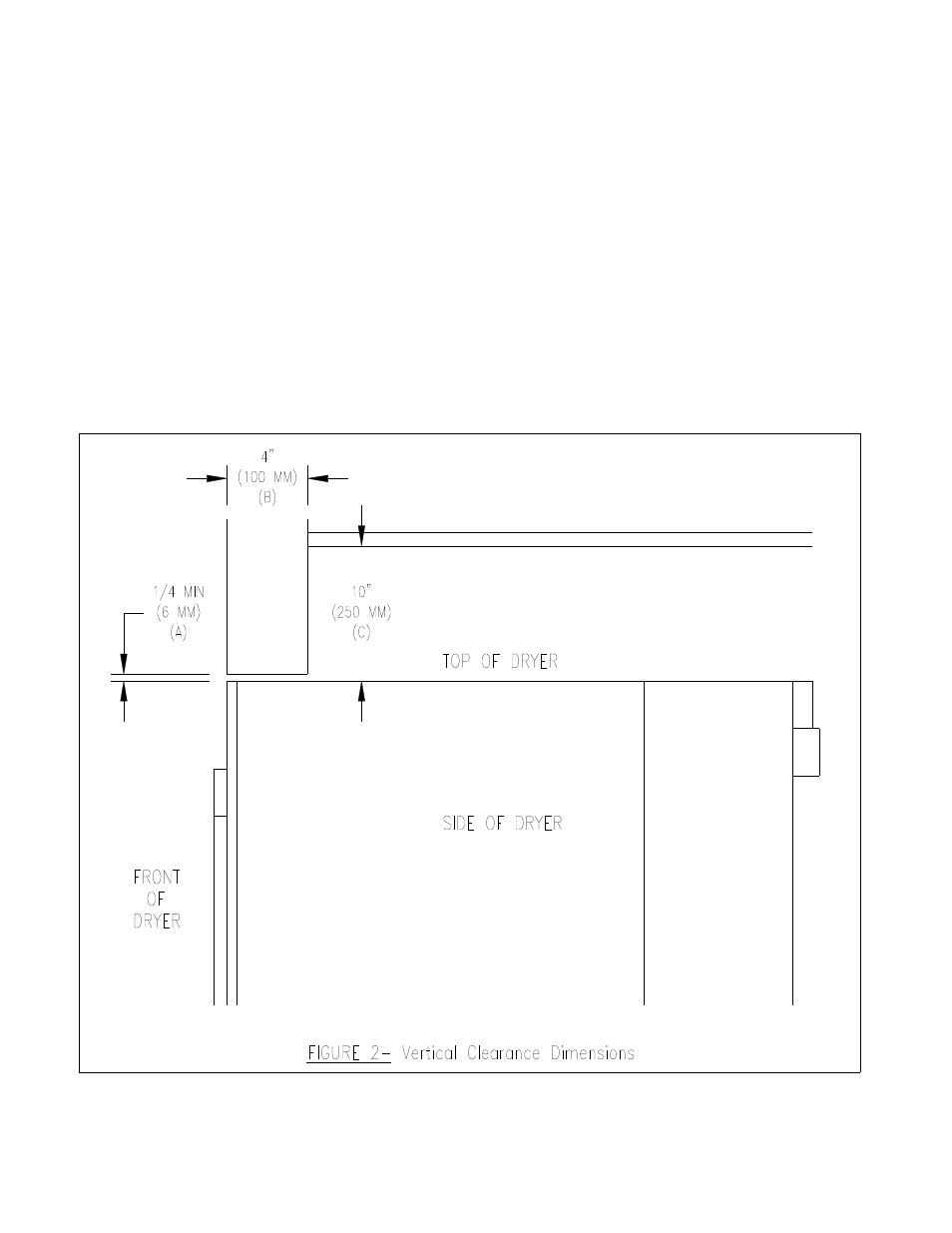

Refer to figure labeled “Vertical Clearance Dimensions”.
AB. 0 clearance is allowable at the top; 4 in. (102 mm) back from the
front. However 1/4 in. (6 mm) clearance should be allowed in case the
dryer needs moving.
C. 10 in. (254 mm) clearance is required from top at all other points.
VI. Floor
If used as a stand alone dryer, this unit is intended to be installed upon an
elevated surface. The surface must be of suitable strength to support 450
pounds (205 kg), and the dryer should be bolted or anchored to prevent
horizontal movement. The dryer may be installed upon a combustible
surface.
Refer to the label attached to the Belt Guard on the rear of the dryer for other installation
information and start-up instructions.
