62 innovative solutions I superior quality
O r d e r i n g I n f o r m a t i o n
Part Number Shell Contacts Terminations Standards Remarks
Compatibility
P C B M o u n t S o c k e t s - S w i t c h e d
NRJ3HF-1 Black/Plastic Silver Horizontal PCB mount IEC 60603-11/EIA RS 453 Stereo, full threaded nose, chassis ground contact
NRJ4HF     Mono, full threaded nose
NRJ4HF-1     Mono, full threaded nose, chassis ground contact
NRJ6HF     Stereo, full threaded nose
NRJ6HF-1     Stereo, full threaded nose, chassis ground contact
NRJ4HH     Mono, half threaded nose
NRJ4HH-1     Mono, half threaded nose, chassis ground contact
NRJ6HH     Stereo, half threaded nose
NRJ6HH-1     Stereo, half threaded nose, chassis ground contact
NRJ6HF-AU  Gold   Stereo, full threaded nose, gold plated contacts
NRJ6HF-1-AU  Gold   Stereo, full threaded nose, chassis ground contact,
gold plated contacts
NRJ6HH-AU  Gold   Stereo, half threaded nose, gold plated contacts
NRJ-NUT-B  - - - Hexagonal black plastic nut
NRJ-NUT-R Red/Plastic - - - Hexagonal red plastic nut
NRJ-NUT-MK Metal/Ni plated - - - Metal ring nut, knurled
NRJ-NUT-MS Metal/Ni plated - - - Metal ring nut
P C B M o u n t S o c k e t s - S w i t c h e d w i t h M e t a l N o s e
NRJ6HM-1 Black/Plastic Silver Horizontal PCB mount IEC 60603-11/EIA RS 453 Stereo, metal threaded nose
NRJ6HM-1-AU  Gold   Stereo, metal threaded nose, gold plated contacts
NRJ-NUT-MN Metal - - - Hexogonal metal nut (for metal nose jack only)
NSJ8HL Polyamid PA 6.6 GR Silver Horizontal PCB mount IEC 60603-11/EIA RS 453 Mono, quick fix nose
NSJ12HL     Stereo, quick fix nose
NSJ8HC     Mono, full nose
NSJ12HC     Stereo, full nose
NSJ12HF-1     Full threaded nose
NSJ12HH-1     Half threaded nose
NSJ-NUT-B Black/Plastic - - - Quick fix nut
All Slim jacks are for PCB mount only.
Mounting nuts must be ordered separately, except for Stacking Jack type NSJ8HL and NSJ12HL.
Ordering Key:
NRJ*H NEUTRIK Jack Horizontal * number of contacts:
H half threaded nose 2 mono unswitched
F full threaded nose 4 mono switched
L quick fix nose 6 stereo switched
M metal threaded nose 8 mono stacking jack
C plane nose 12 stereo stacking jack
-1 chassis ground contact

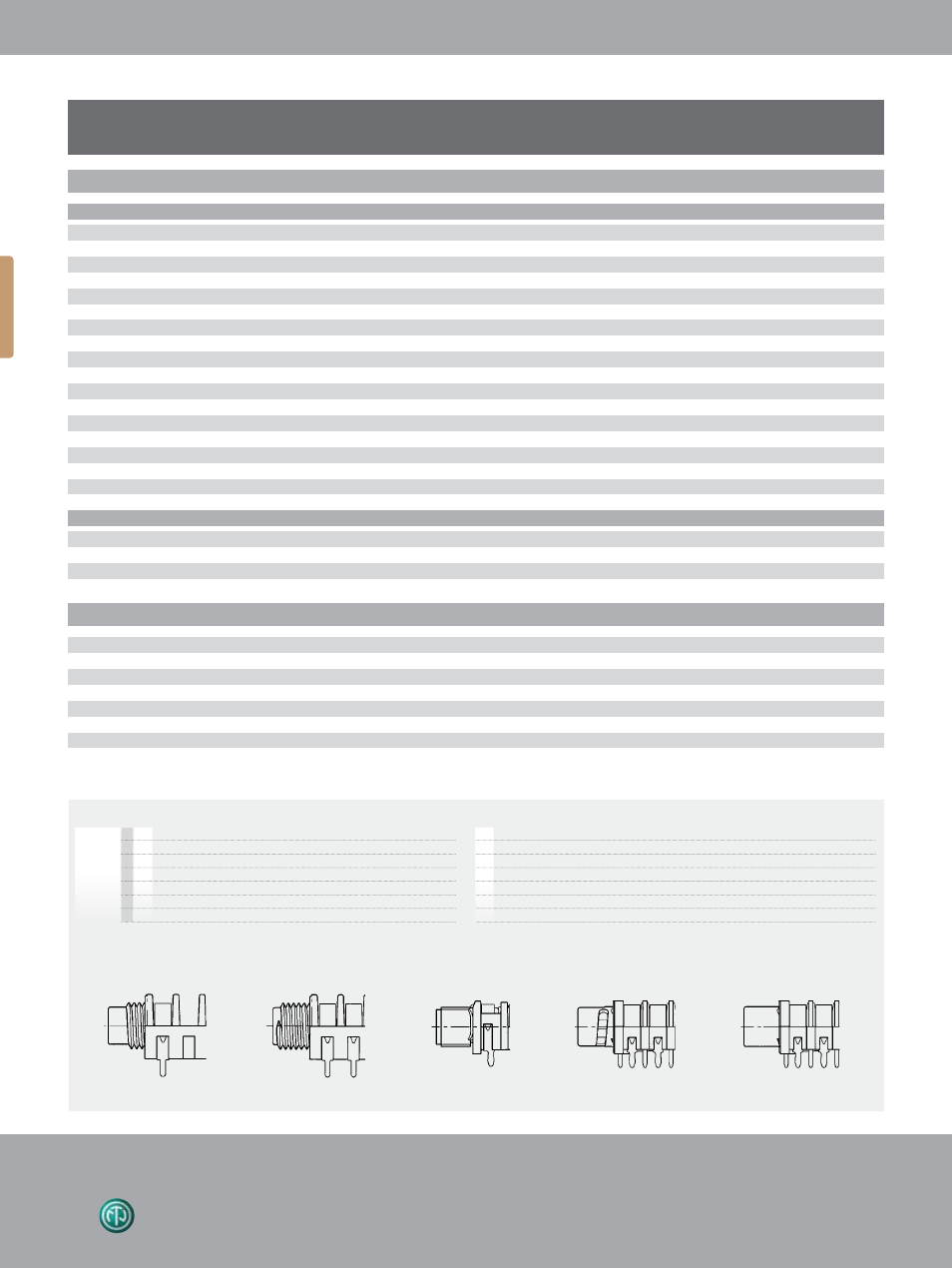

Nose: -H -F -M -L -C
S l i m J a c k
S t a c k i n g J a c k
