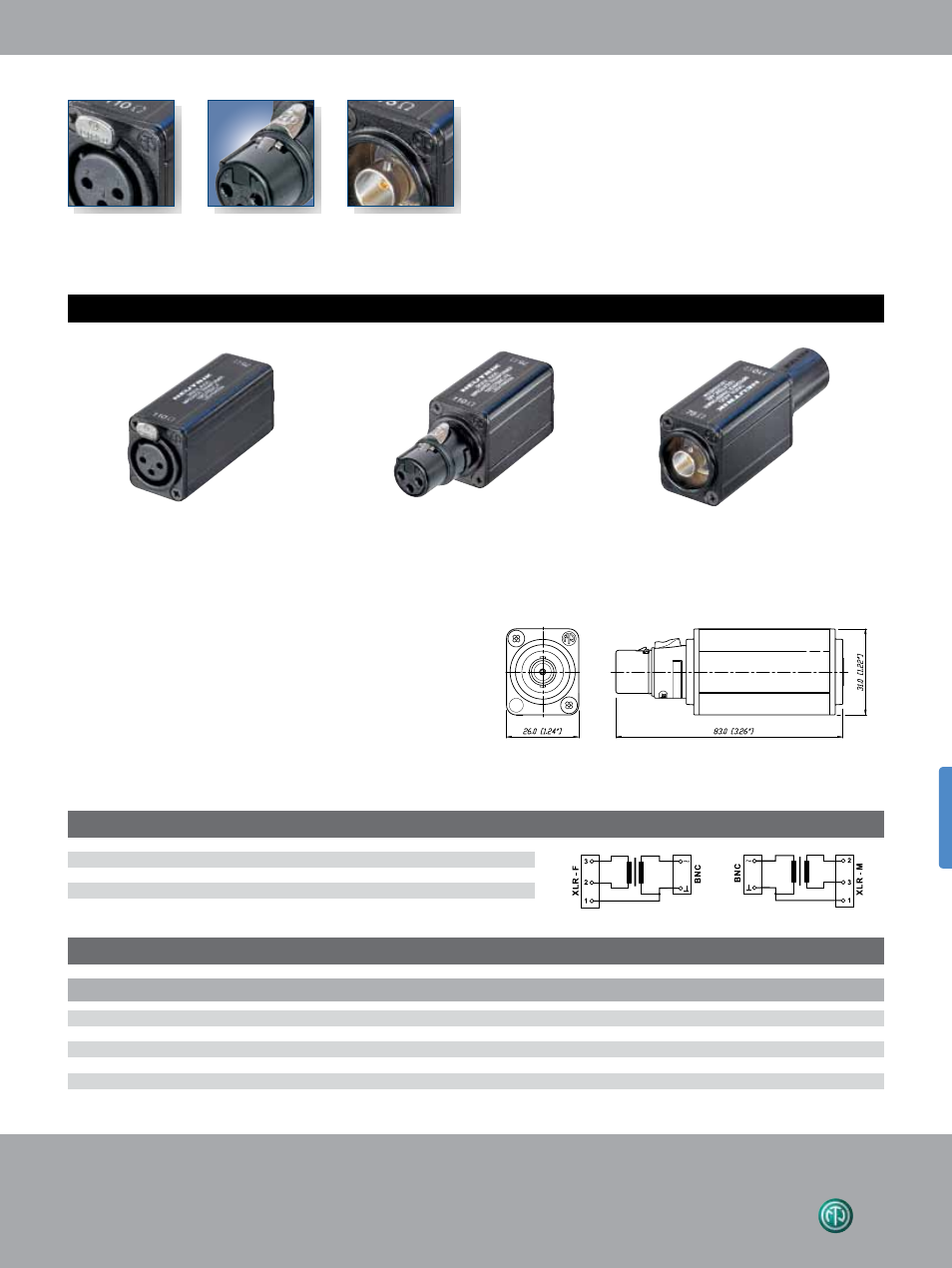

NADITBNC-F NADITBNC-FX NADITBNC-MX
NADITBNC-FX
NADITBNC-F NADITBNC-M
www.neutrik.com
O r d e r i n g I n f o r m a t i o n A d a p t e r
A E S / E B U D i g i t a l I m p e d a n c e T r a n s f o r m e r A d a p t e r s
• Cost effective exceptional impedance matching adapters
• Allow long cable runs for digital audio signals via low
attenuation coax lines
• Match balanced (110 Ω) to coaxial lines (75 Ω)
• Pre-wired in black anodized aluminum extrusions for
increased durability
• AES/EBU adapters available with either 3 pin male or
female XLR cable ends or receptacles
• Simple use, passive units
I n p u t O u t p u t
NADITBNC-F 3 pole XLR female chassis female BNC chassis 110 Ω XLR input and 75 Ω BNC output
NADITBNC-M 3 pole XLR male chassis female BNC chassis 75 Ω BNC input and 110 Ω XLR output
NADITBNC-FX 3 pole XLR female cable con. female BNC chassis 110 Ω XLR input and 75 Ω BNC output
NADITBNC-MX 3 pole XLR male cable con. female BNC chassis 75 Ω BNC input and 110 Ω XLR output
Maximum voltage / Max. power: 5 Vp-p / 250 mW
Frequency band: 0.1 MHz to 6 MHz
Insertion loss: < 0.3 dB @ 0.1 MHz to 10 MHz
VSWR / Return loss: < 1.1 / > 26.4 dB
O r d e r i n g I n f o r m a t i o n
Te c h n i c a l D a t a
P a r t N o . P o r t 1 P o r t 2 C o m m e n t s
3 pole XLR female
receptacle 3 pole cable
connector BNC chassis
