charge is within, and “wipe” the charge onto the
inner surface of the cup.
•
Use the relationships given below to calculate the
charge that has been transferred.
•
For a capacitor of capacitance C, the relationship
between the charge Q and the voltage U is:
U
C
Q
⋅
=
•
Since
U
OUT
=
U
IN
, the output voltage from the
electrometer gives a measure of the charge
Q:
C
U
Q
OUT
⋅
=
•
The capacitor U8403501 has the known capacitance
C = 10
nF, and therefore the charge can be
calculated.

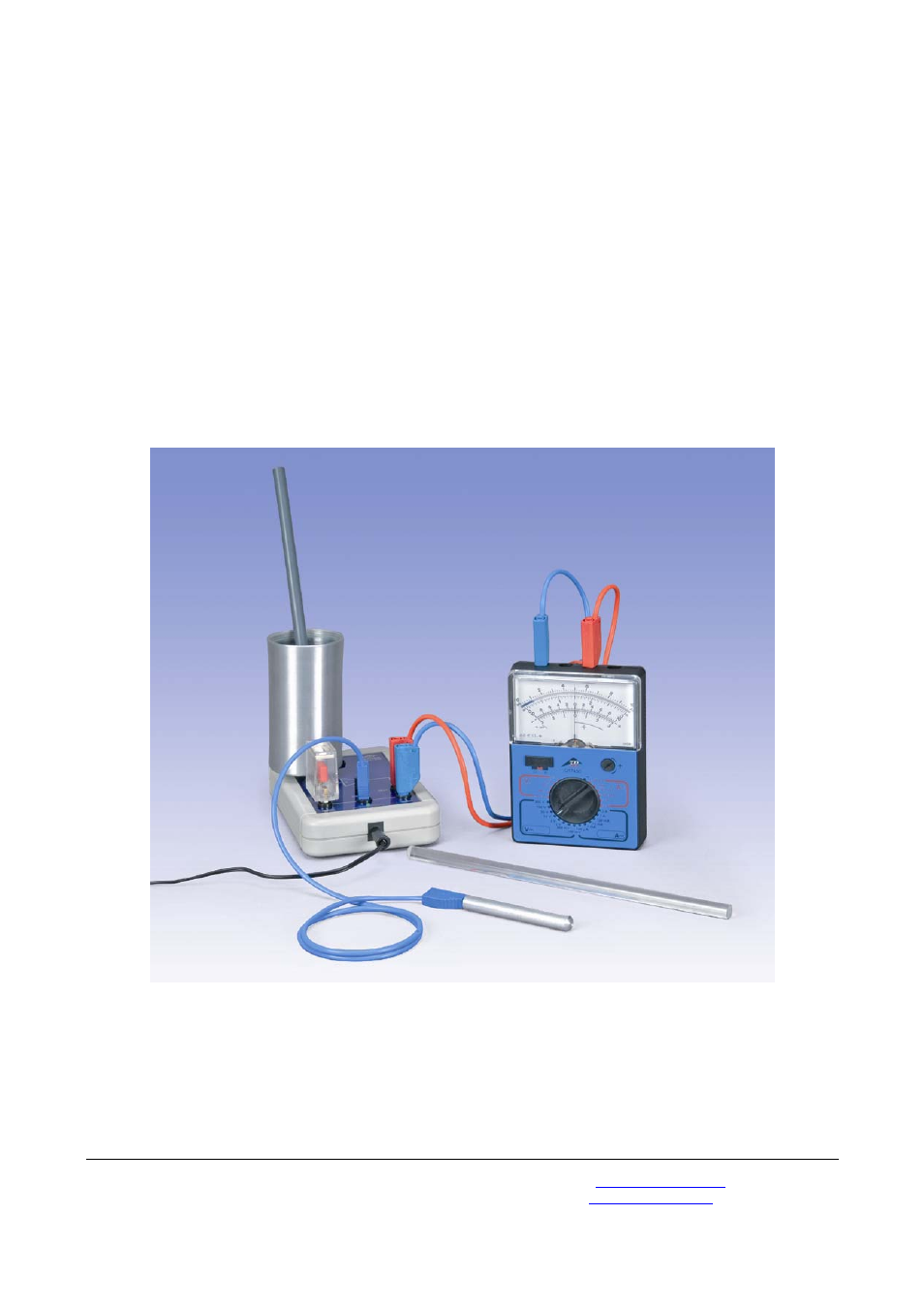

Fig. 1
Experiment set-up for measuring charges in electrostatics
